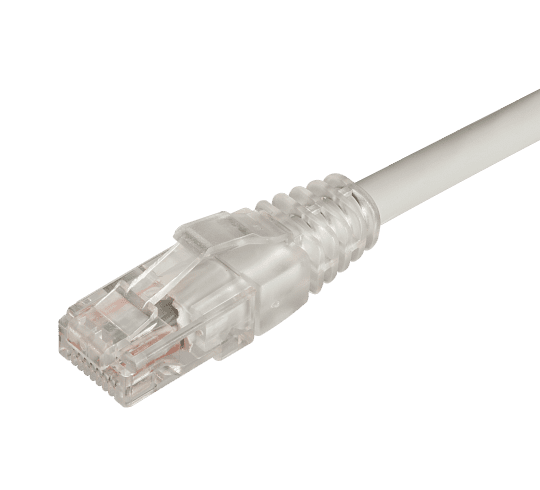

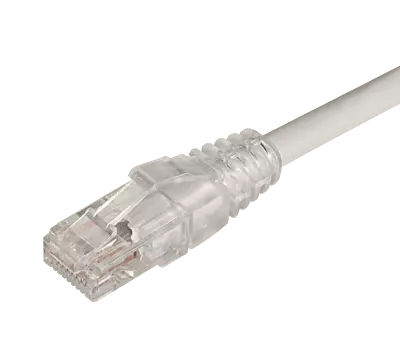

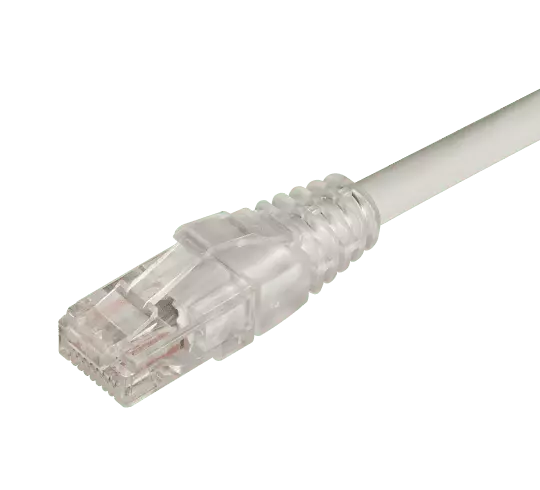

Digisol Channel SCS Patch Cord, Cat 6 UTP, 24 AWG, LSZH
Rs. 180.00 Rs. 249.00
Out of stock
Tags:
Key Features
Available In LSZH Jacket- Reduced Toxic Gasses Emitted During Combustion
RJ45, 8P8C, 2 FORK 50µ’’ Gold Plated Contacts
100% Factory Tested
Transparent Boot Cable Assemblies
Available in 5 Different Colors
Product Details
Specifications
Technical Specification
Conductor Material | Stranded Copper |
Conductor Diameter | 24 AWG |
Insulation Material | HD-PE |
Insulation Thickness | Min at any point: 0.18mm, MAX AVG: 0.20mm |
| Min at any point: 0.17mm, MAX AVG: 0.19mm |
Insulation Diameter | 0.94±0.01mm / 0.92±0.01mm |
Cross Filler | Transparent 4.2×0.35 |
Jacket Type | LSZH (Low Smoke Zero Halogen) |
Jacket Thickness | Min at any point: 0.51mm, MAX AVG: 0.55mm |
Jacket Width | Min at any point: 5.2mm, MAX AVG: 5.8mm |
Plug | 50µ’’ Gold Plated Contact |
Boot | Transparent |
Standard | ANSI EIA/TIA 568-C.2 |
General
- Types Of CablesPatch Cord
- UTP Cables TypesCat 6
- Cable Connector GenderMale-to-Male
- Connector 1RJ-45
- Connector 2 GenderMale
- Connector 2RJ-45
- Cable ShapeRound
- Product ColourGrey
Size
- Item Weight99 to 131 g
