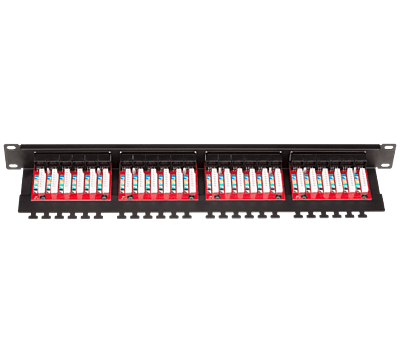

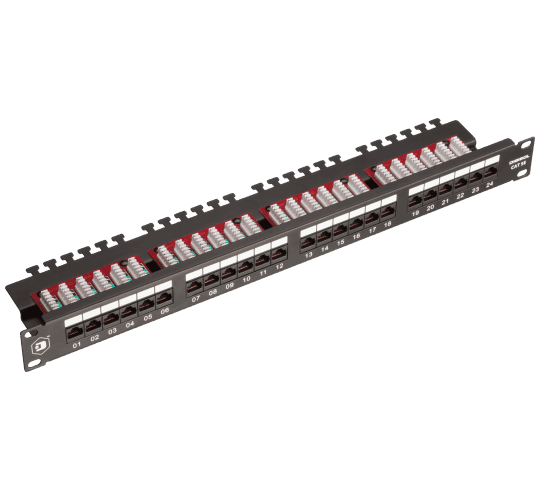

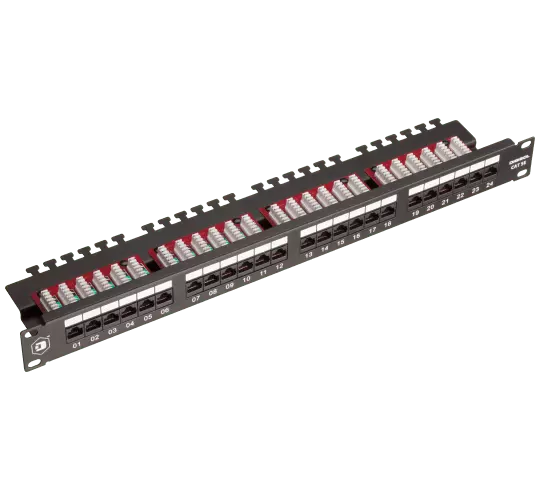

Digisol Channel SCS Patch Panel 24 Port, Cat5e UTP, 90 Degree
Key Features
90 Degree (Top Entry) punch down design for convenient network terminations
Ease of cable routing is assured with built in rear cable management
6x4 module krone type designed jack configuration
Easily removable module design
1U standard 19 inch rack mounted
Easy port labeling identification
Compatible with T568A or T568B wiring schemes
Accommodates 22~26 AWG Stranded and Solid Copper Wires
Technical Specifications
Electrical Specifications
Property | Specification |
|---|---|
Current Rating | 1.5 Amps |
Insulation Resistance | 2,500ΜΩ |
Contact Resistance | ≤10mΩ |
DC Resistance | ≤0.10Ω |
DC/AC Volt Endurance | DC 1000V / AC 750V (1 Min) |
Mechanical Specifications
Property | Specification |
|---|---|
Plug Insertion Life | 2750 Cycles with FCC Compliant RJ-45 Plug |
Plug & Jack Contact Force | 2100 Grams with FCC Compliant RJ-45 Plug |
Plug Retention Force | ≥11 lbf |
Durability | 200 Termination Cycles |
Operating Temperature | -10°C to +60°C |
Operating Humidity | 10% to 90% RH |
Storage Temperature | -40°C to +68°C |
Physical Specifications
Property | Specification |
|---|---|
Panel Frame | SPCC Graded Cold Rolled Steel, Powder Coated in Black |
Housing | High Impact Flame Retardant Plastic, Polycarbonate (UL 94V-0 Rated) |
PCB | FR4, 1.6mm Thickness |
Jack Wire Terminals | 0.40mm Phosphor Bronze (Base Material), 30 μ" Gold Plating over 40μ" - 80μ" Nickel Plating |
Jack Configuration | 6x4 Module Special Design |
IDC Conductor | 0.5 mm Phosphor Bronze (Base Material), 100μ" Tin Plating |
Panel Size | 483mm x 82mm x 44.3mm (LxWxH) |
IDC Contact Compatibility | 22-26 AWG Stranded and Solid Copper Wires |
Labelling | Printed White Rectangular Blocks with Ports Numbered for Identification |
Standard Verification
Property | Specification |
|---|---|
Compliance Standards | ANSI/TIA-568-C.2, ISO/IEC 11801:2002/AMMD.2:2010, ISO/IEC 60603-7 |
Environmental Compliance | RoHS Directive 2002/95/EC Compliant |
General
- Ports Quantity24
