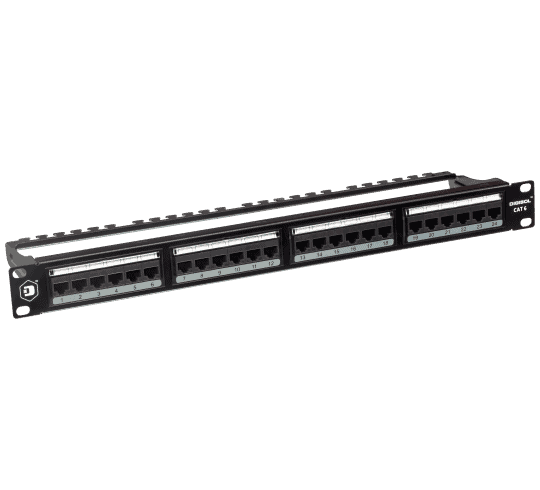

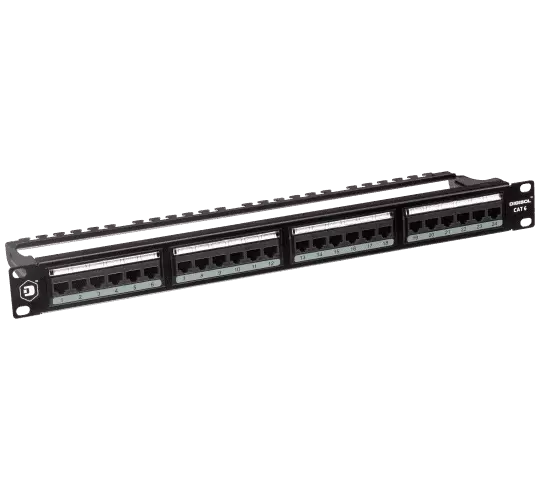

Digisol Channel SCS Patch Panel, 24 Port, Cat6 UTP, 180 Degree
Key Features
1U Patch Panel to Mount In any Standard Rack
Easy Port Labeling Identification Provision
Accommodates 22~26 AWG Stranded and Solid Wires
Electrical Specifications
Parameter | Specification |
|---|---|
Current Rating | 1.5 Amps |
Insulation Resistance | ≥ 500mΩ |
Contact Resistance | ≤ 10mΩ |
DC Resistance | ≤ 0.1Ω |
DC/AC Volt Endurance | DC 1000V / AC 750V (1 Min) |
Mechanical Specifications
Parameter | Specification |
|---|---|
Plug Insertion Life | ≥ 750 Cycles with FCC Compliant RJ-45 Plug |
Plug & Jack Contact Force | ≥ 100 Grams with FCC Compliant RJ-45 Plug |
Plug Retention Force | ≥ 11 LBF |
Durability | 200 Termination Cycles |
Operating Temperature | -10°C to +60°C |
Operating Humidity | 10% to 90% RH |
Storage Temperature | -40°C to +68°C |
Physical Specifications
Parameter | Specification |
|---|---|
Panel Frame | SPCC Powder Coating (Black) |
Housing | High Impact Flame Retardant Plastic, UL 94V-0 Rated |
PCB | FR4, 1.6mm Thickness |
Jack Wire | 30µ" Phosphor Bronze Gold Over Nickel Plating |
IDC Conductor | 0.5mm Phosphor Bronze, Tin Plating |
Contact Compatibility | 22~26 AWG Stranded and Solid Wires |
Technical Specifications
Product | Specification |
|---|---|
Model | DIGISOL Patch Panel, 24 Port, Cat6, UTP, 180° |
Design | 180° Punch Down for Convenient Network Terminations |
Compliance | Exceeds ANSI/TIA/EIA-568-C.2 Standard |
Support | Supports 1000-Base-T |
Patch Panel | 1U Mountable in Any Standard Rack |
Labeling | Easy Port Labeling Identification Provision |
Wire Support | Accommodates 22~26 AWG Stranded and Solid Wires |
Standard Verification
Standard | Compliance |
|---|---|
ANSI/TIA-568-C.2 | Compliant |
ISO/IEC 11801:2002/AMMD.2:2010 | Compliant |
YD/T 926.3-2009 | Compliant |
ISO/IEC 60603-7 | Compliant |
RoHS Directive 2002/95/EC | Compliant |
UL Listed, ETL Verified | Compliant |
General
- Ports Quantity24
