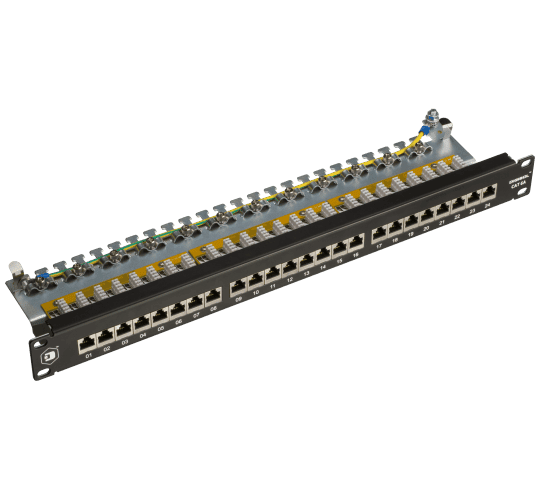

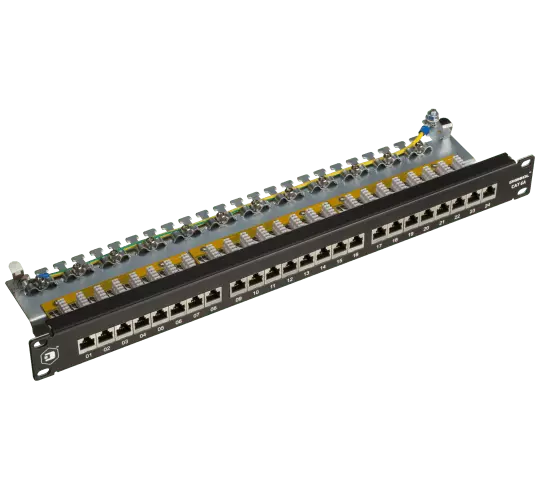

Digisol Channel SCS Patch Panel, 24 Port, Cat6A FTP, 90 Degree
Key Features
90 Degree (Top Entry) punch down design for convenient network terminations
Ease of cable routing is assured with built in rear cable management
8x3 module krone type designed jack configuration
Easily removable module design
Top cover for securing the terminated IDC wiring blocks
1U standard 19 inch rack mounted
Easy port labeling identification
Compatible with T568A or T568B wiring schemes
Accommodates 23-26 AWG Solid Copper Wires
Technical Specifications
Electrical
Property | Specification |
|---|---|
Current Rating | 1.5 Amps |
Insulation Resistance | ≥ 500ΜΩ |
Contact Resistance | ≤ 10mΩ |
DC Resistance | ≤ 0.10 Ω |
DC/AC Volt Endurance | DC 1000V / AC 750V for 1 Minute |
Mechanical
Property | Specification |
|---|---|
Plug Insertion Life | ≥ 750 Cycles with FCC Compliant RJ-45 Plug |
Plug & Jack Contact Force | ≥ 100 Grams with FCC Compliant RJ-45 Plug |
Plug Retention Force | ≥ 11 lbf |
Durability | 200 Termination Cycles |
Operating Temperature | -10°C to +60°C |
Operating Humidity | 10% to 90% RH |
Storage Temperature | -40°C to +68°C |
Physical
Property | Specification |
|---|---|
Panel Frame | SPCC Graded Cold Rolled Steel, Powder Coated in Black |
Panel Frame Cover | SPCC Graded Cold Rolled Steel, Nickel Plated |
Earthing/Grounding Wire | 16 AWG Stranded Electric Wire |
Housing | High Impact Flame Retardant Plastic, Polycarbonate (UL 94V-0 Rated) |
PCB | FR4, 1.6mm Thickness |
Jack Wire Terminals | 0.35mm Phosphor Bronze (Base Material), 30µ" Gold Plating Over 40μ" - 80μ" Nickel Plating |
Jack Configuration | 8x3 Module Special Design |
IDC Conductor | 0.5mm Phosphor Bronze (Base Material), 100µ" Tin Plating |
Panel Size (LxWxH) | 483mm x 82mm x 44.3mm |
IDC Contact Compatibility | 23-26 AWG Solid Copper Wires |
Labelling | Printed Ports Numbered for Identification |
Standard Verification
Property | Specification |
|---|---|
Industry Standards | ANSI/TIA-568-C.2 |
International Standards | ISO/IEC 11801:2002/AMMD.2:2010 |
Connector Compliance | ISO/IEC 60603-7 Compliant |
Environmental Compliance | RoHS Directive 2002/95/EC Compliant |
General
- Ports Quantity24
