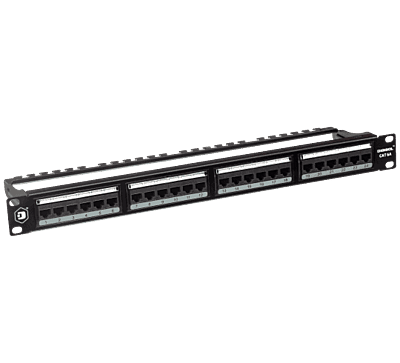

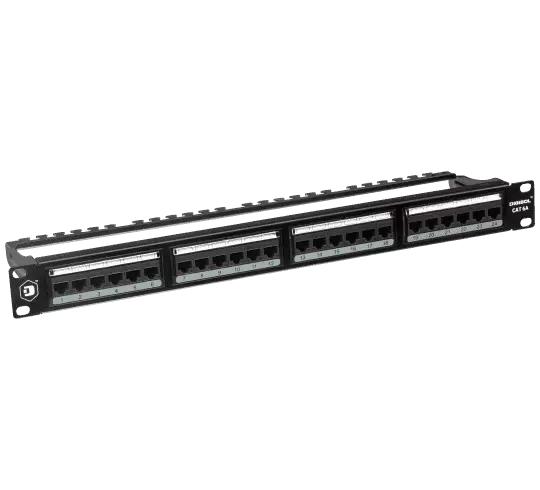

Digisol Channel SCS Patch Panel, 24 Port, Cat6A UTP, 180 Degree
Key Features

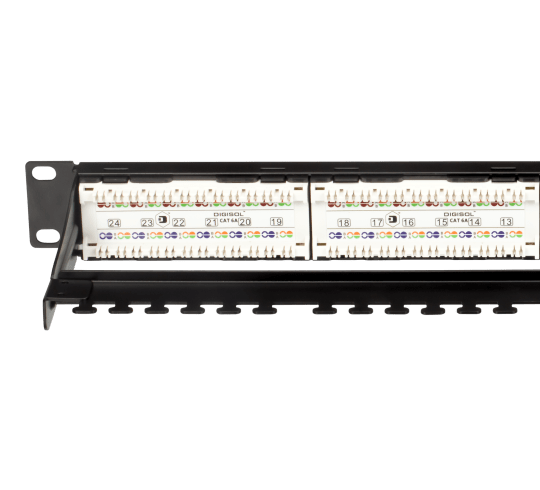

180 Degree punch down design for network terminations

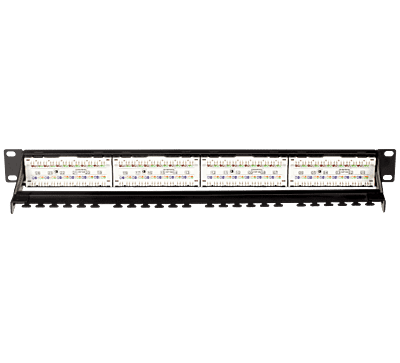

Ease of cable routing is assured with a rear cable management
6x4 module type designed jack configuration
Easily removable module design
1U standard 19 inch rack mounted
Easy port labeling identification
Compatible with T568A or T568B wiring schemes
Accommodates 22~26 AWG Stranded and Solid Copper Wires
Technical Specifications
Electrical
Property | Specification |
|---|---|
Current Rating | 1.5 Amps |
Insulation Resistance | ≥ 500MΩ |
Contact Resistance | ≤10mΩ |
DC Resistance | ≤ 0.10 Ω |
DC/AC Volt Endurance | DC 1000V / AC 750V for 1 Minute |
Mechanical
Property | Specification |
|---|---|
Plug Insertion Life | 2750 Cycles with FCC Compliant RJ-45 Plug |
Plug & Jack Contact Force | ≥ 100 Grams with FCC Compliant RJ-45 Plug |
Plug Retention Force | ≥11 lbf |
Durability | 200 Termination Cycles |
Operating Temperature | -10°C to +60°C |
Operating Humidity | 10% to 90% RH |
Storage Temperature | -40°C to +68°C |
Physical
Property | Specification |
|---|---|
Panel Frame | SPCC Graded Cold Rolled Steel, Powder Coated in Black |
Cable Management | SPCC Graded Cold Rolled Steel, Powder Coated in Black |
Housing | High Impact Flame Retardant Plastic, Polycarbonate (UL94V-0 Rated) |
PCB | FR4, 1.6mm Thickness |
Jack Wire Terminals | 0.40mm Phosphor Bronze (Base Material), 30μ" Gold Plating Over 40μ" - 80μ" Nickel Plating |
Jack Configuration | 6x4 Module Special Design |
IDC Conductor | 0.5mm Phosphor Bronze (Base Material), 100μ" Tin Plating |
Panel Size (LxWxH) | 483mm x 132mm x 44.3mm |
IDC Contact Compatibility | 22-26 AWG Stranded and Solid Copper Wires |
Labelling | Common 6-Port Labels Housed in Plastic Covering |
Standard Verification
Property | Specification |
|---|---|
Industry Standards | ANSI/TIA-568-C.2 |
International Standards | ISO/IEC 11801:2002/AMMD.2:2010 |
Connector Compliance | ISO/IEC 60603-7 Compliant |
Environmental Compliance | RoHS Directive 2002/95/EC Compliant |
General
- Ports Quantity24
