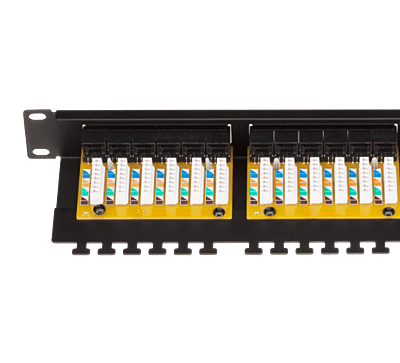

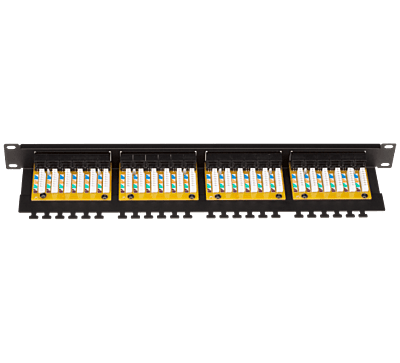

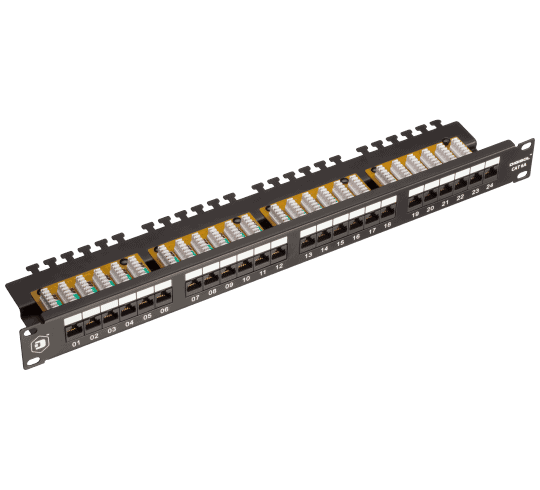

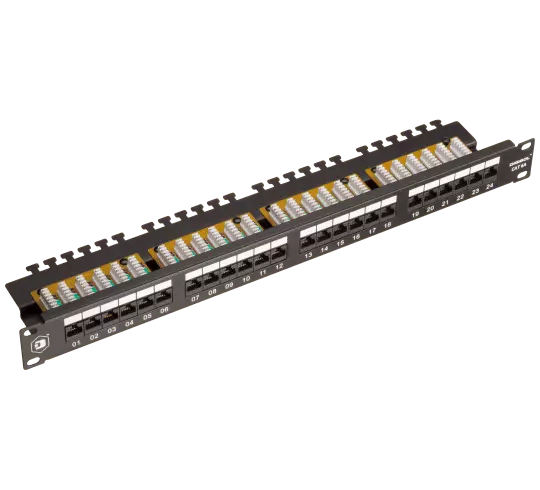

Digisol Channel SCS Patch Panel, 24 Port, Cat6A UTP, 90 Degree
Key Features
90 Degree (Top Entry) punch down design for convenient network terminations
Ease of cable routing is assured with built in rear cable management
6x4 module krone type designed jack configuration
Easily removable module design
1U standard 19 inch rack mounted
Easy port labeling identification
Compatible with T568A or T568B wiring schemes
Accommodates 22~26 AWG Stranded and Solid Copper Wires
Technical Specifications
Electrical:
Current Rating: 1.5 Amps
Insulation Resistance: 2 500ΜΩ
Contact Resistance: ≤10mΩ
DC Resistance: ≤ 0.10
DC/AC Volt Endurance: DC 1000V/AC 750V 1 Min
Mechanical:
Plug Insertion Life: ≥750 Cycles with FCC Compliant RJ-45 Plug
Plug & Jack Contact Force: 2100 Grams with FCC Compliant RJ-45 Plug
Plug Retention Force: ≥ 11 lbf
Durability: 200 Termination Cycles
Operating Temperature: -10°C to +60°C
Operating Humidity: 10% to 90% RH
Storage Temperature: -40°C to +68°C
Physical:
Panel Frame: SPCC graded Cold Rolled Steel Powder Coated In Black Color
Housing: High Impact Flame Retardant Plastic, Polycarbonate (UL94V-0 Rated)
PCB: FR4, 1.6mm Thickness
Jack Wire Terminals: 0.40mm Phosphor Bronze (Base Material), 30 μ" gold plating over 40μ" 80μ" nickel plating
Jack Configuration: 6x4 Module Special Design
IDC Conductor: 0.5 mm Phosphor Bronze (Base Material), 100μ" Tin Plating
Panel Size: 483mm x 82mm x 44.3mm (LxWxH)
IDC Contact Compatibility: 22-26 AWG Stranded and Solid copper wires
Labelling: Printed white rectangular blocks with ports numbered for identification
Standard Verification:
ANSI/TIA-568-C.2
ISO/IEC 11801:2002/AMMD.2:2010
ISO/IEC 60603-7 Compliant
RoHS Directive 2002/95/EC/Compliant
General
- Ports Quantity24
