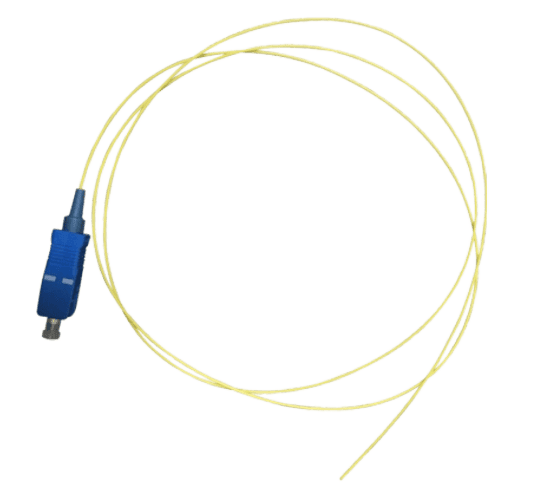

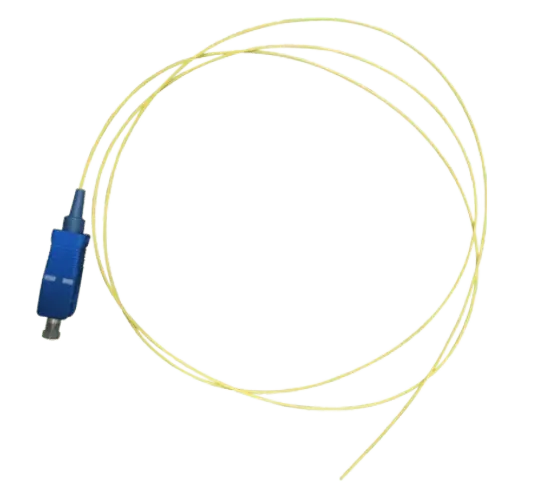

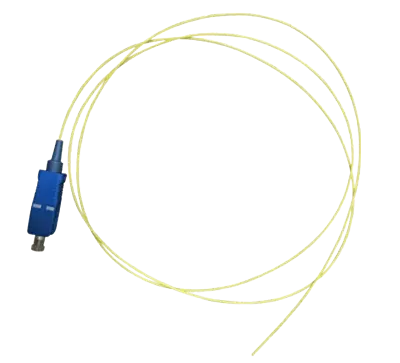

Digisol Channel SCS Pigtail, Single Mode (OS2), LSZH Type
Key Features
Pigtails are factory terminated and 100% tested for performance.
Pull proof UPC or APC type connectors to prevent disconnect.
0.9mm cordage meets high density requirement during installation.
Low smoke Zero Halogen (LSZH) rated jacket to reduce toxic/corrosive gases.
Low insertion loss and Return loss.
Available with corning fiber.
Available in Simplex variants.
Technical Specifications
Category | Property | Specification |
|---|---|---|
Connector Type | SC, LC, FC, ST | - |
Fiber Type | OS2 G.652D (9/125µm Corning Clear Curve) | - |
Number of Fibers | 1F tight jacketed (Simplex) | - |
Cable Diameter (mm) | 0.9 ± 0.05 | - |
Jacket Color | Yellow | - |
Jacket Material | LSZH | - |
Connector Color | Blue (UPC Type), Green (APC Type), Steel Body (ST, FC) | - |
Mechanical Specifications | Bend Radius (min.) | 10D |
Crush Resistance | 100N/100mm | |
Connector Cable Retention | 3 N (0.67 lbs) | |
Connector Ferrule | Ceramic | |
Connector Repeatability | ≤0.2dB (1000 times mating cycle) | |
Coating Strip Force | ≤13.3 N | |
Environmental Specifications | Storage Temperature | -20°C to +70°C |
Installation Temperature | -20°C to +70°C | |
Operating Temperature | -20°C to +70°C | |
Standards | IEC 60332-1 | Compliant |
ANSI/TIA 568-C.3 & ISO/IEC 11801 | Compliant | |
RoHS compliance | Directive 2002/95/EC | |
Optical Specifications | Mode Field Diameter | 9.2 ± 0.4 μ (@1310nm), 10.4 ± 0.5 μ (@1550nm) |
Attenuation (Max) | ≤0.36 dB/km (@1310nm), ≤0.25 dB/km (@1550nm) | |
Chromatic Dispersion | ≤3.5 ps/nm.km (@1285-1330nm), ≤18 ps/nm.km (@1550nm) | |
Zero Dispersion Wavelength | 1300-1324 nm | |
Cut off Wavelength | ≤1260 nm | |
Cladding Diameter | 125 ± 0.7 µm | |
Optical Performance (SM UPC Type) | Connector Type | SC, LC, ST, FC |
Insertion Loss (dB) | ≤0.3 | |
Return Loss (dB) | ≥50 | |
Optical Performance (SM APC Type) | Connector Type | SC, FC |
Insertion Loss (dB) | ≤0.3 | |
Return Loss (dB) | ≥60 |
