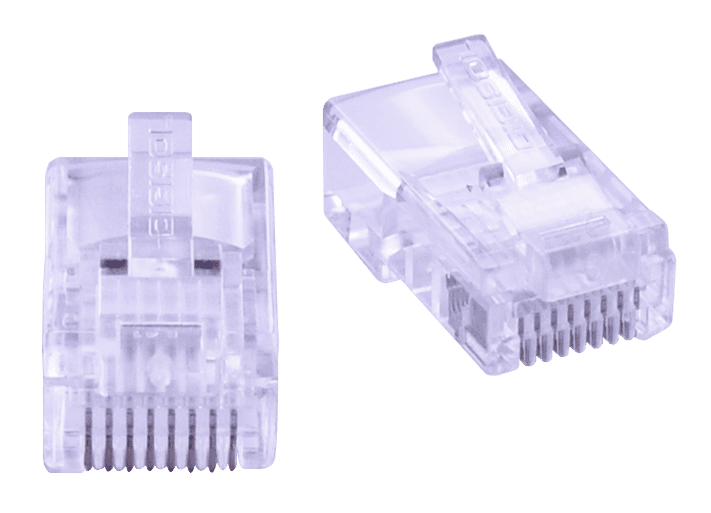

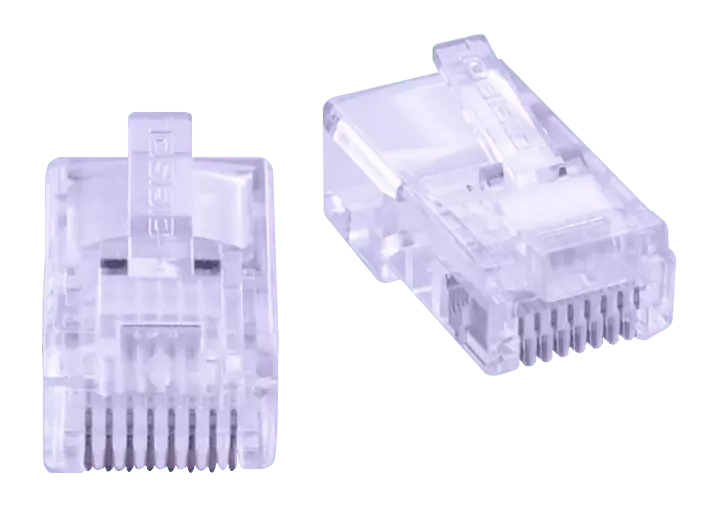

Digisol Channel SCS RJ45, Cat 6 UTP Plugs
Rs. 1.00 Rs. 2.00
Out of stock
Tags:
Key Features
RJ-45 modular plugs for Local Area Network (LAN) and computer applications
Suitable for Solid or Stranded
CAT 6 rated
3-Prong Design for accurate termination
Product Details
Technical Specifications
Electrical
Property | Specification |
|---|---|
Current Rating | 250V AC max, at 2A |
Dielectric Withstanding | 1000V DC/min, <0.5A |
Insulation Resistance | >500ΜΩ, 1000V DC/min |
Contact Resistance | <20 ΜΩ |
Physical
Property | Specification |
|---|---|
Cable to Plug Tensile Strength | 20 lbs (89N) min |
Durability | Above 750 Mating Cycles |
Operating Temperature | -40°C to +125°C |
Material
Property | Specification |
|---|---|
Housing Material | Polycarbonate UL94V-0 |
Colour | Transparent or Colorful Options Available |
Gold Plating Thickness | Gold Flash 3MU" |
Environmental
Property | Specification |
|---|---|
Compliance | RoHS and REACH Compliant |
