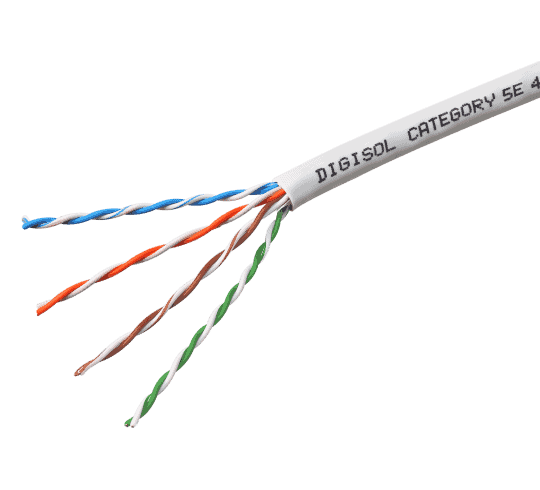

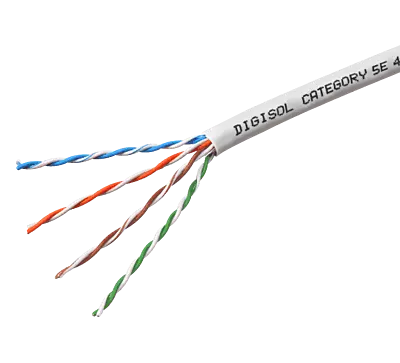

Digisol Channel SCS Solid Cable, Cat5e UTP, 4 Pair, 24 AWG, FRPVC/LSZH Sheath, Grey, 100m
Key Features
Supports Gigabit Ethernet (1000 Base-T) Standard
Suitable for Noisy Environments, High EMI Interference Surroundings
Complies to the Requirement of ANSI/TIA-568-C.2 and ISO/IEC 11801
Bandwidth Performance Up to 100Mhz
UL Listed and ETL Verified
Technical Specifications
Mechanical Properties
Parameter | Specification |
|---|---|
Conductor | Solid Bare Copper |
Conductor Diameter | 24 AWG |
Insulation | Polyethylene (HDPE) |
Pairs | 4 Pair Twisted Together |
Sheath | FRPVC/LSZH Sheath |
Cable Diameter | 4.80 mm |
Jacket Color | Light Grey |
Bending Radius | < 25.4 mm at -20°C ± 1°C |
Pulling Force | 19.84 LBS |
Operating Temperature | -20°C to +70°C |
Installation Temperature | -20°C to +70°C |
Color Code
Pair Number | Color Combination |
|---|---|
1 - 2 | White-Orange Stripe and Orange |
3 - 6 | White-Green Stripe and Green |
4 - 5 | White-Blue Stripe and Blue |
7 - 8 | White-Brown Stripe and Brown |
Electrical Properties
Parameter | Specification |
|---|---|
Conductor Resistance (For 1000m) | 93.5 OHMS |
Mutual Capacitance (For 100m) | Max 5.6 NF |
Resistance Unbalance (%) | Max 5 |
Capacitance Unbalance (For 100m) | 330 PF |
Technical Specifications
Parameter | Specification |
|---|---|
Delay Skew (For 100m) | 536 Ns |
Normal Velocity of Propagation (%) | 69 |
Impedance | 100±15% OHMS |
Worst Case Cable Skew (For 100m) | 45 NS |
Operating Temperature Range | -20°C to +60°C |
Installation Temperature Range | -20°C to +60°C |
Flame Rating | CM Rated |
Packing | 305 Mtrs. in Box |
Standards Compliance
Standard | Compliance |
|---|---|
UL Listed | Yes |
ETL Verified to ANSI/TIA-568-C.2 | Yes |
ISO/IEC 11801 | Yes |
General
- Types Of CablesUTP Cables
- Cable ShapeRound
- Outer MaterialPolyvinyl Chloride (PVC)
- Product ColourGrey
Size
- Item Length305 m
