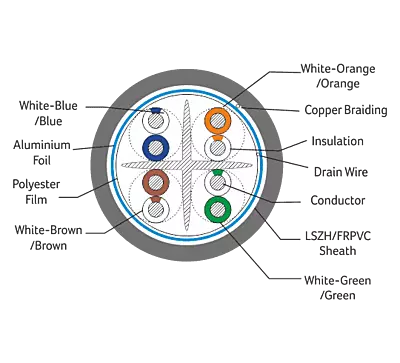

Digisol Channel SCS Solid Cable, Cat6 SFTP, 4 Pair, 23 AWG, FRPVC Sheath, Grey, 305m

Conductor

23 AWG, Solid Bare Copper

Pairs

4 Pair Twisted Wires

Type

SF/UTP CM Rated

Conductor Diameter

0.55 ± 0.02 mm

Insulation Material

High-Density Polyethylene (HDPE)

Insulation Diameter

1.03 ± 0.05 mm

Insulation Nominal Thickness

0.24 mm

Central Member

PE Cross Separator

Separator Dimension/Thickness

5.0 mm / 0.9 mm

Separator Material

Polyolefin / Polyethylene

Wrapping

Overall Polyester Tape

HF-Screening

Overall AL-PET (Mylar) Tape

Braiding

Tinned Copper Conductor

Jacket Sheath

FRPVC

Jacket Average Thickness

0.44 ± 0.01 mm

Jacket Diameter

7.5 ± 0.5 mm

Rip Cord

1 no

Drain Wire

1 no (0.39 ± 0.01 mm)

Jacket Colour

Grey

Conductor Resistance

≤ 9.38 Ω/100m Max

Mutual Capacitance

-

Resistance Unbalance

5% Max

Capacitance Unbalance

Max. 330 pF/100m

Dielectric Strength

2.5 KVDC for 2 Seconds

Delay Skew

< 45 ns/100m

Propagation Delay @ 250 MHz

536 ns/100m

Impedance

100 ± 150 (@ 1-250 MHz)

Current Rating

1.5 A Max

Operating Voltage

72V

Pair 1-2

White-Orange Stripe & Orange

Pair 3-6

White-Green Stripe & Green

Pair 4-5

White-Blue Stripe & Blue

Pair 7-8

White-Brown Stripe & Brown

Operating Temperature

-20°C to +70°C

Installation Temperature

-20°C to +70°C

Maximum Tensile Strength

400 N max

Pulling Force

11.5 Kg (25.35 lbs)

Bending Radius

-

ANSI/TIA-568-D.2

ISO/IEC 11801 / IEC 60332-1

RoHS Compliant
