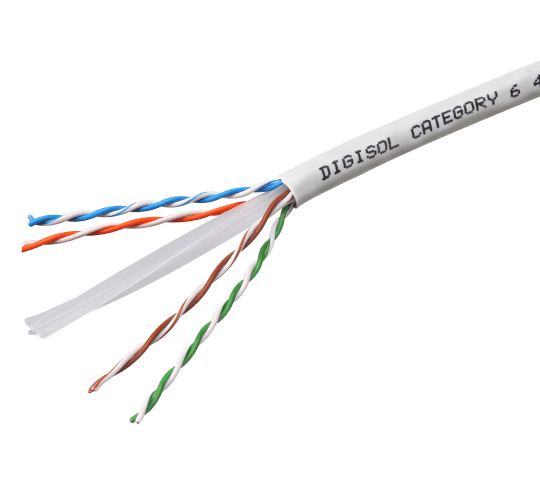

Digisol Channel SCS Solid Cable, Cat6 UTP, 4 Pair, 23 AWG, LSZH Sheath, Grey, 305m

Technical Specifications

Construction Properties:

• Conductor: 23 AWG, Solid bare copper

• Pairs: 4 Pair twisted wires

• Type: U/UP CM rated

• Insulation Material: High density polyethylene (HDPE)

• Insulation Nominal Thickness: 0.2 mm

• Insulation Diameter: 0.89 ± 0.01 mm

• Central Member: PE cross separator

• Separator Dimension/Thickness: 4.3 mm / 0.4 mm

• Separator Material: Polyolefin/Polyethylene

• Jacket Sheath: LSZH

• Jacket Average Thickness: 0.2 mm

• Jacket Diameter: 0.89 ± 0.01 mm

• Rip Cord: Brown

Mechanical Properties:

• Maximum Tensile Strength of Jacket (NUmm^2): 13.1

• Pulling Force: 11.5 Kg (25.35 lbs)

• Bending Radius: <4 x Cable Diameter at -20°C ± 1°C

Environmental Properties:

• Operating Temperature: -20°C to 70°C

• Installation Temperature: -20°C to 70°C

Electrical Properties:

• Conductor Resistance: ≤ 9.38 Ω/100m Max.

• Mutual Capacitance: <5.6 nF/100m Max

• Resistance Unbalance: 5% Max

• Capacitance Unbalance: Max. 330 pF/100m

• Dielectric Strength: 2.5 KVDC For 2 seconds

• Delay Skew: <45ns

• Impedance: 100 ± 150 @ 100 MHz

• Current Rating: 1.5 A Max

• Operating Voltage: 72V

Color Code:

• Pair Number 1: White-Orange Stripe and Orange

• Pair Number 2: White-Green Stripe and Green

• Pair Number 3: White-Blue Stripe and Blue

• Pair Number 4: White-Brown Stripe and Brown

Standards:

• Comply to ANSI/TIA-568-C.2

• ISO/IEC 11801

• RoHS Compliant
