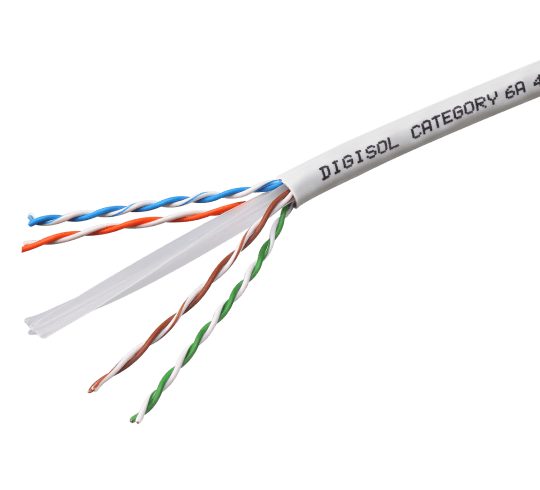

Digisol Channel SCS Solid Cable, Cat6A UTP, 4 Pair, 23 AWG, FRPVC Sheath, Grey, 305m

Conductor

23 AWG, Solid Bare Copper

Pairs

4 Pair Twisted Wires

Type

U/UTP CM Rated

Conductor Diameter

0.55 ± 0.02 mm

Insulation Material

High-Density Polyethylene (HDPE)

Insulation Diameter

1.02 ± 0.01 mm

Insulation Nominal Thickness

0.24 mm

Central Member

PE Cross Separator

Separator Dimension/Thickness

4.3 mm / 0.4 mm

Separator Material

Polyolefin / Polyethylene

Jacket Sheath

FRPVC

Jacket Average Thickness

0.91 ± 0.01 mm

Jacket Diameter

7.5 ± 0.2 mm

Rip Cord

1 No

Jacket Colour

Grey

Maximum Tensile Strength of Jacket

13.1 N/mm²

Pulling Force

11.5 Kg (25.35 lbs)

Bending Radius

-

Operating Temperature

-20°C to +70°C

Installation Temperature

-20°C to +70°C

Conductor Resistance

≤ 9.38 Ω/100m Max

Mutual Capacitance

-

Resistance Unbalance

5% Max

Capacitance Unbalance

Max. 330 pF/100m

Dielectric Strength

2.5 KVDC for 2 Seconds

Delay Skew

<45 ns/100m

Propagation Delay @ 250 MHz

536 ns/100m

Impedance

100 ± 150 Ω @ 100 MHz

Current Rating

1.5 A Max

Operating Voltage

72V

1-2

White-Orange Stripe and Orange

3-6

White-Green Stripe and Green

4-5

White-Blue Stripe and Blue

7-8

White-Brown Stripe and Brown

UL Listed

Yes

ANSI/TIA-568.2-D

Compliant

ISO/IEC 11801 / IEC 60332-1

Compliant

RoHS

Compliant
