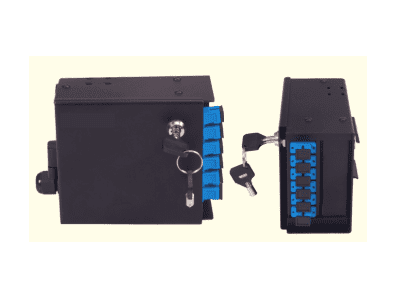

DIGISOL Compact LIU Wall Mount/Din Rail Design 06 Port Unloaded
Key Features
Suitable to Wall mount and on DIN Rail type design
Made of Aluminium material with black powder coating
Sleek and compact design with light weight body
Available in lock and key as a standard design secure feature
Two Inlet/Outlet holes for cable through cable glands
Ease in splicing of 6 fibers in bottom compartment with in-built splice holder tray
Suitable for 6 SC Simplex
Enough space for cable arrangement to ensure flexibility of pigtails and excess fibers
Comprehensive Accessory kits for cable entry and fiber management
Technical Specifications
Category | Property | Specification |
|---|---|---|
Adapter Capacity | SC Simplex | 6 |
Adapter Panels | Mounting Type | Fixed on base of swivel tray |
Splice Tray Accessories | Splice Trays | 1 no. for 6 fibers |
Cable Glands | PG 9, 1 no. | |
Splice Rods | 6 nos | |
Cable Ties | 4 nos | |
Grommet Assembled | 2 nos | |
DIN Rail with Screws | 2 nos | |
Mechanical Specifications | Dimensions (mm) | 121 x 100 x 60.0 mm (L x B x H) |
Base Material | Aluminium with Black Powder Coating | |
Splice Tray Material | ABS Plastic (50 x 40 x 15 mm) (L x W x H) | |
Maximum Fiber Count | 6 Fiber (SC Simplex) | |
Fusion Capacity | 6 Fiber maximum per splice tray | |
Environmental Specifications | Storage Temperature | -20°C to +70°C |
Installation Temperature | -20°C to +70°C | |
Operating Temperature | -20°C to +70°C | |
Standards | RoHS Compliance | Directive 2002/95/EC |
