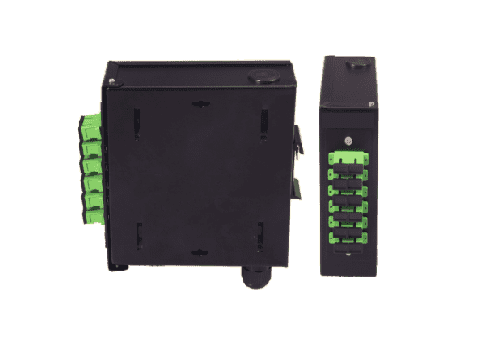

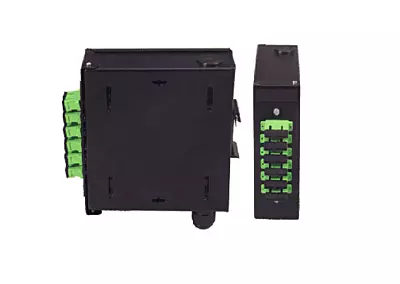

DIGISOL Compact LIU Wall mount/Din Rail Design 12 Port Unloaded
Key Features
Suitable to Wall mount and on DIN Rail type design
Made of Aluminium material with black powder coating
Sleek and compact design with light weight body
Two Inlet/Outlet holes for cable through cable glands
Ease in splicing of 6/12 fibers in compartment with in-built splice holder tray
Suitable for 6 SC Duplex
Enough space for cable arrangement to ensure flexibility of pigtails and excess fibers
Comprehensive Accessory kits for cable entry and fiber management
Technical Specifications
Category | Property | Specification |
|---|---|---|
Adapter Capacity | SC Duplex | 6/12 |
Adapter Panels | Mounting Type | Assembled on box with screws |
Splice Tray | Splice Trays | 1 no. for 6 fibers / 2 nos. for 12 fibers |
Accessories | Cable Glands | PG13.5, 1 no. |
Splice Rods | 12 nos. | |
Velcro Ties | 4 nos. | |
Cable Ties | 2 nos. | |
Grommet Assembled | 2 nos. | |
Mechanical Specifications | Dimensions (mm) | 153 x 150 x 53.0 mm (L x B x H) |
Base Material | Aluminium with Black Powder Coating | |
Splice Tray Material | ABS Plastic (50 x 40 x 15 mm) (L x W x H) | |
Maximum Fiber Count | 6/12 Fiber (SC Duplex) | |
Fusion Capacity | 6 Fiber maximum per splice tray (12 fibers, 2 trays) | |
Environmental Specifications | Storage Temperature | -20°C to +70°C |
Installation Temperature | -20°C to +70°C | |
Operating Temperature | -20°C to +70°C | |
Standards | RoHS Compliance | Directive 2002/95/EC |
