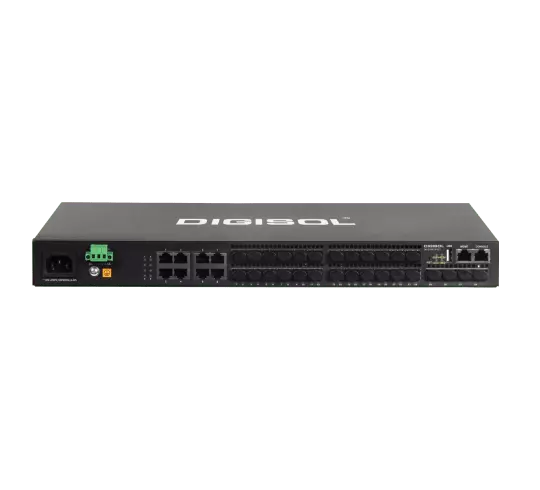

DIGISOL Dual Stack 10G Ethernet Routing Fiber Switch – DG-GS4628FSE2

Technical Specifications – DIGISOL DG-GS4628FSE2

Hardware Features

• Switching Capacity: 128 Gbps

• Throughput: 95 Mpps

• MAC Address Table: 16K

• Jumbo Frame: 10K

• ARP Table: 4K

• Routing Table: 1K

• ACL Table: 1K

• Dimensions (WxHxD): 440mm × 44mm × 240mm

• Power Consumption: <34W

• Power Supply: AC 100240V, 5060Hz + 12VDC RPS

Management Ports

• 1 x RJ45 Ethernet Management Port

• 1 x Console Port

• 1 x USB 2.0 Interface

Environmental Specifications

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -40°C to 70°C

• Relative Humidity: 10% to 90% non-condensing, storage up to 95%

Main Features

Layer 1 & Layer 2 Features

• Supports multiple IEEE standards:

  • IEEE 802.3 (10Base-T), 802.3u (100Base-TX), 802.3z (1000Base-X), 802.3ab (1000Base-T)

  • IEEE 802.3ae (10GBase), 802.3x, 802.3ak (10GBASE-CX4)

• Port Features:

  • Port loopback detection

  • LLDP & LLDP-MED

  • UDLD (Unidirectional Link Detection)

  • 802.3ad LACP (Link Aggregation) – supports up to 128 trunk groups, each with max 8 ports

  • LACP Load Balancing

  • N:1 Port Mirroring, RSPAN, ERSPAN

• Spanning Tree Protocols:

  • IEEE 802.1d (STP), 802.1w (RSTP), 802.1s (MSTP)

  • Root Guard, BPDU Guard, BPDU Tunnel

• VLAN & Traffic Management:

  • 802.1Q VLAN (4K VLAN support)

  • MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN

  • QinQ, Selective QinQ, Flexible QinQ

  • VLAN Translation (N:1)

  • GVRP (GARP VLAN Registration Protocol)

  • Storm Control (Broadcast, Multicast, Unicast)

• Multicast Support:

  • IGMP v1/v2/v3 Snooping with L2 Query

  • ND & MLD Snooping (v1/v2)

• Security & QoS:

  • Port Security, Flow Control (HOL Blocking, IEEE 802.3x)

  • Bandwidth Control

L3 Features

• Routing Protocols:

  • Static Routing, RIP v1/v2, OSPF v2, BGP4

  • OSPFv3, BGP4+, OSPF Multiple Processes

  • LPM Routing, Policy-Based Routing (PBR) for IPv4 & IPv6

  • VRRP, URPF, ECMP, BFD

• Multicast Routing:

  • IGMP v1/v2/v3, IGMP Proxy

  • Static Multicast Route, Multicast Receive Control

  • Illegal Multicast Source Detection

• ARP & Security Features:

  • ARP Guard, Local ARP Proxy, Proxy ARP, ARP Binding

  • Gratuitous ARP, ARP Limiting

  • Anti ARP/NDP Cheat, Anti ARP/NDP Scan

• DNS & Tunneling:

  • DNS Client, DNS Relay

  • GRE Tunnel, 6to4 Tunnel, ISATAP Tunnel, Configured Tunnel

IPv6 Features

• IPv6 Routing & Security:

  • IPv6 ICMP, ND, DNSv6

  • IPv6 LPM Routing, Policy-Based Routing (PBR)

  • IPv6 VRRPv3, URPF, RA

  • RIPng, OSPFv3, BGP4+

• Multicast & QoS:

  • MLD Snooping, IPv6 Multicast VLAN

  • MLDv1/v2, PIM-SM/DM, Anycast RP

  • IPv6 ACL, IPv6 QoS

Quality of Service (QoS)

• Traffic Management:

  • 8 Queues, SP, DWRR, SWDRR

  • Classification based on 802.1p CoS, ToS, DiffServ DSCP, ACL, Port Number

  • Traffic Policing, PRI Mark/Remark

Access Control List (ACL)

• ACL Types:

  • IP ACL, MAC ACL, IP-MAC ACL

  • Standard & Extended ACL based on source/destination IP/MAC, IP Protocol, TCP/UDP Port, DSCP, ToS, VLAN, CoS

• Advanced Features:

  • Redirect & Accounting-Based ACL

  • Port-based, VLAN-based, and VLAN Routing Interface ACLs

  • Time-Based ACL

Security Features

• Authentication & Access Control:

  • 802.1X AAA (Port & MAC-based authentication)

  • RADIUS & TACACS+ for IPv4 & IPv6

  • MAB (MAC Authentication Bypass)

• DHCP Security:

  • DHCP Server/Client for IPv4 & IPv6

  • DHCP Relay, DHCP Snooping with Option 82

Network Management & Monitoring

• Traffic Monitoring:

  • sFlow Traffic Analysis

• Security & Administration:

  • CLI, Web UI, Telnet, SNMP v1/v2c/v3 (IPv4 & IPv6)

  • Syslog & External Syslog Server, HTTP SSL

  • SNMP MIB, SNMP TRAP, FTP/TFTP, SNTP/NTP

  • RMON (1,2,3,9), Radius/TACACS Authentication

  • SSH v1/v2, Dual Firmware & Configuration Files

  • 802.3ah & 802.1ag OAM

Data Center Features

• Virtual Switch Framework (VSF) (Feature available in future upgrade)

Additional Features

Enhanced Security

• IEEE 802.1X port-based and MAC-based access control

• Time-Based ACLs for scheduled security policies

• Secure Shell (SSH) for encrypted network management

• RADIUS authentication for centralized control

IPv6 Support

• Full IPv6 switching and routing for future-proof networking

Energy-Efficient Design

• Temperature monitoring, automatic cooling, and fan speed adjustment to reduce power consumption and noise

Ordering Information

Model: DG-GS4628FSE2
Description: DIGISOL 10G Ethernet Routing Switch, 16 x 100/1000Base-X + 8 x GE Combo + 4 x 10GbE, AC + 12VDC RPS power supply
