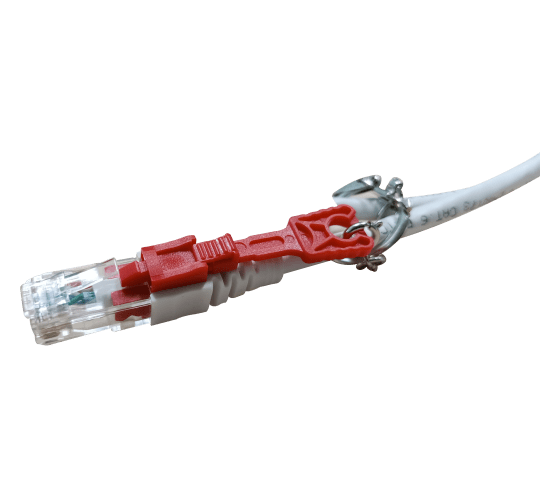

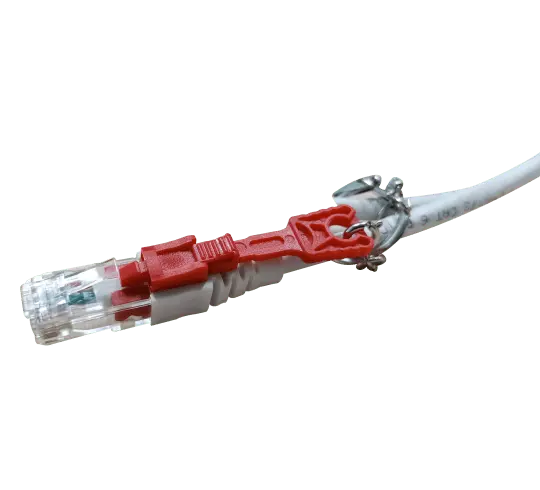

Digisol Enterprise ConvergeX Lockable Patch Cords, Cat 6, UTP, LSZH
Key Features
Comes with lock and key design for data centre security needs
24 AWG
LSZH jacket
50 micron gold plated RJ45 Contact pins
Technical Specification
Standards
Property | Specification |
|---|---|
Channel Performance | Verified to ANSI/TIA-568-C.2-1:2002, Category 6 CM Grade |
Compliance | FR-PVC – Complies with UL Flame Exposure (UL 1685) |
Ethernet Support | Supports 1000BASE-T Ethernet |
Environmental Compliance | Lead-free & RoHS Compliant |
Standards Met | ANSI/TIA-568-C.2, ISO/IEC 11801 2nd Edition, CENELEC EN 50173-1 |
Mechanical Properties
Property | Specification |
|---|---|
Mechanical Operation | 750 Cycles Minimum for Insertion/Withdrawal with Modular Jack |
Effectiveness of Connector Coupling Devices | 50N (11 lbf) for 60s ± 5s |
Insertion and Withdrawal Forces | 30N Maximum |
Environmental Properties
Property | Specification |
|---|---|
Operating Temperature | -40°C to 60°C |
Humidity | 10% ~ 90% RH |
General
- Types Of CablesUTP Cables
