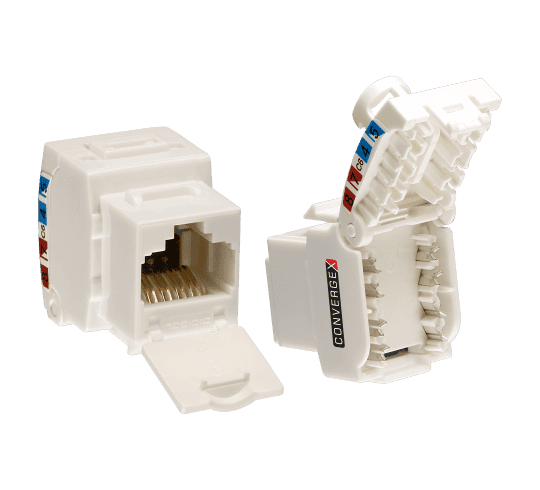

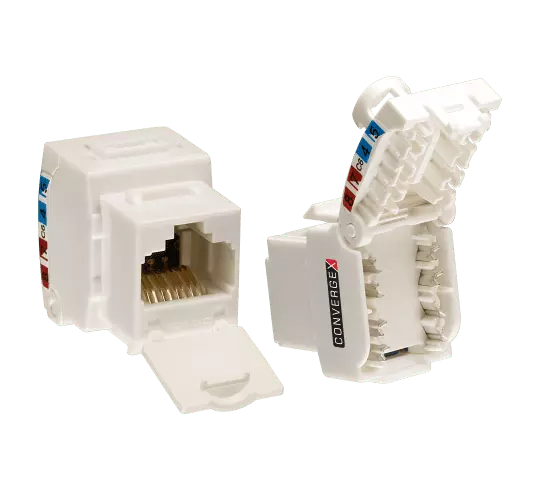

Digisol Enterprise ConvergeX Solderless Toolless Type Keystone Jack, Cat 6, UTP
Key Features
Patented Toolless type design with contact pins assembled with Solder-less Press-fit process
Fast and easy tool-free termination with hands. Optional termination with hand tool.
Fully (360 degree covered) 50 microns Gold plated Contact pins.
No oxidization of Contact pins due to absence of soldering flux leading to longer life
High impact Polycarbonate Grade plastic, UL-94V-O rated
Removable shutter option
Supports both RJ11/RJ12 plug
In-built cable guide on IDC cap
Plug Insertion Life: 750 Cycles minimum
Available in Black and White colour
Technical Specifications
Electrical Properties
Property | Specification |
|---|---|
Current Rating | 1.5 Amps |
Insulation Resistance | 500 MΩ Minimum |
Contact Resistance | 10 mΩ Maximum |
DC Resistance | 0.1 Ω Maximum |
Mechanical Properties
Property | Specification |
|---|---|
Plug Insertion Life | 750 Cycles Minimum |
Plug & Jack Contact Force | 100 Grams Minimum (Using FCC-Approved Plug) |
Plug Retention Force | 30 lbs Minimum |
Operating Temperature | -40°F to 150°F (-40°C to 68°C) |
Physical Properties
Property | Specification |
|---|---|
Housing | High Impact Flame Retardant Plastic, UL 94V-0 Rated |
PCB | FR4, 1.6mm Thickness |
Jack Wire | Phosphor Bronze Gold Over Nickel Plating |
Nickel Plating Base (Ni) | 40µ~80µ |
Gold Plating | 50 Microns |
Connector | Insulation Displacement Connector (IDC), Accepts #23~24 AWG Solid Wire |
Standards Compliance
Standard | Specification |
|---|---|
Category | Qualified Unscreened Class E/Cat.6 |
Permanent Link & Channel | ANSI/TIA-568-C.2 |
IEC Compliance | IEC 60603-7-4 2nd Edition |
ISO/IEC Compliance | ISO/IEC 11801 2.2 Edition |
European Compliance | CENELEC EN 50173-1:2011 |
