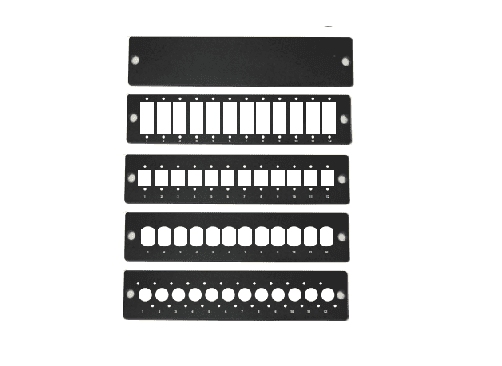

DIGISOL Fiber Adapter Panels
Key Features
Suitable to mount in Sliding Rackmount and Wall mount
Ease in assembling and disassembling of Adapter panels on LIU with plastic snap rivets
Ease in assembling and disassembling of Adapters on Adapter panels
Suitable for 6/12/24 SC/ST/FC Simplex, 6/12/24/48 LC Duplex, 6/12/24/48 SC Duplex
Suitable for SC, LC, ST, FC Adaptors having maximum of 12 ports with 2 nos can be assembled
Technical Specifications
Category | Property | Specification |
|---|---|---|
Adapter Capacity | SC/LC (Simplex/Duplex) | 6/12/24/48 |
ST, FC | 6/12/24 | |
Adapters | Mounting Type | Snap mount with metal clip or Screw mount |
Adapter Panels | Assembly | Assembled with snap rivets (2 nos) |
Mechanical Specifications | Base Material | Cold Rolled Steel with Black Powder Coating |
Panel Dimensions | 165 x 35 x 1.5 mm (Length x Width x Thickness) | |
Environmental Specifications | Storage Temperature | -20°C to +70°C |
Installation Temperature | -20°C to +70°C | |
Operating Temperature | -20°C to +70°C | |
Standards | RoHS Compliance | Directive 2002/95/EC |
