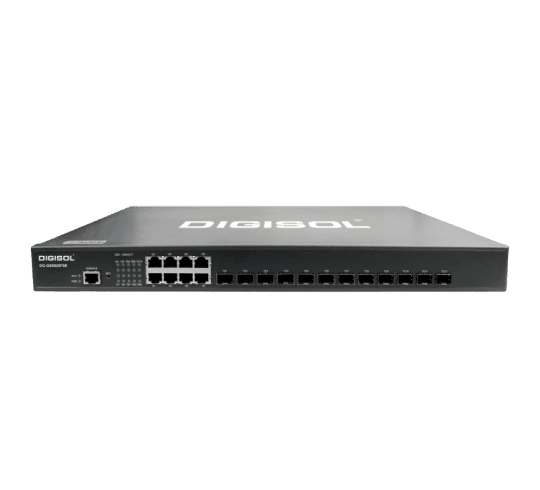

DIGISOL Full 10GE Ethernet L3 Managed Switch with 12 10GE SFP+ port- DG-GS5620FSE
Key Features
High-Performance Connectivity: Supports 8 Gigabit Ethernet (GE) ports and 12 10GE SFP+ ports for enhanced network speed and efficiency.
Advanced Hardware Architecture: Designed with cutting-edge hardware for optimal performance and reliability.
Industry-Leading Port Density: High port density to meet demanding network requirements.
Comprehensive Layer-3 Capabilities: Supports full Layer 3 functions for advanced routing and network management.
Flexible Service Support: Enables varied service characteristics to accommodate diverse networking needs.
Robust IPv6 Compatibility: Provides a versatile IPv6 solution for future-proof networking.
Enhanced Security Mechanisms: Incorporates complete security measures, including IEEE 802.1x authentication for robust access control.
Multicast Routing Support: Supports Layer 2 and Layer 3 multicast routing protocols for efficient data distribution.
Intelligent Network Protection: Features advanced ring detection mechanisms for enhanced fault tolerance.
Efficient Cooling System: Intelligent fan management optimizes cooling efficiency while reducing noise and power consumption.
Smart Power Management: Supports real-time device monitoring and slow-start technology for stable power usage.
Energy-Efficient Design: Supports 802.3az Energy-Efficient Ethernet (EEE) to reduce power consumption.
Technical Specifications
Interface & Performance
Ports: 8 × GE TX, 12 × 10GE/GE SFP+
Console Port: 1 × RJ45
Switching Capacity: 176 Gbps
Forwarding Rate: 132 Mpps
Forwarding Mode: Store-and-Forward
Chassis & Power
Dimensions (W×D×H): 440 × 315 × 44 mm
Weight: 3.6 kg (Chassis), 4.8 kg (Package)
Package Dimensions (W×D×H): 576 × 448 × 94 mm
Power Supply: Single AC (Optional Dual Power)
Power Consumption: <35W (No Load), 50W (Full Load)
Total Output BTU: 170.65 BTU/h (1,000 BTU/h = 293W)
Cooling: 2 Fans (Noise Level: 57 dBA @ 25°C)
Memory & Processing
Flash Memory: 16MB
DRAM: 512MB
MAC Address Table: 32K
Buffer Size: 3MB
Jumbo Frame Support: 9K
MTBF: >100,000 hours
Layer 2 Features
VLAN Support:
4K Active VLANs
QinQ & Selective QinQ
GVRP, Private VLAN, Voice VLAN
Spanning Tree Protocols:
802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)
BPDU Guard, Root Guard, Loopback Guard
Multicast Features:
IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave
PIM-SM, PIM-DM, MVR, IGMP Filtering
Layer 3 Features
IPv4 Routing:
Static Routing, RIP v1/v2, OSPF, BGP, PBR, ECMP
BFD for OSPF & BGP
IPv6 Routing:
Static Routing, RIPng, OSPFv3, BGP4+
ICMPv6, DHCPv6, ACLv6, IPv6 Telnet
IPv6 Neighbor Discovery, Path MTU Discovery
MLD v1/v2, MLD Snooping
Manual Tunnel, ISATAP Tunnel, 6-to-4 Tunnel
QoS (Quality of Service)
Traffic Management & Shaping:
CAR, HQoS
MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS-based QoS
802.1P/DSCP Priority Re-labeling
SP, WRR, SP+WRR Scheduling
Tail-Drop, WRED
Flow Monitoring & Traffic Shaping
Security Features
Network Protection:
Port Isolation, Port Security, IP+MAC+Port Binding
MAC Sticky, DHCP Snooping & Option 82
Dynamic ARP Inspection (DAI) & IP Source Guard
IEEE 802.1x, RADIUS, TACACS+
L2/L3/L4 ACL-based Flow Identification & Filtering
DDoS Protection (TCP SYN Flood, UDP Flood, etc.)
Storm Control (Broadcast/Multicast/Unknown Unicast)
Reliability & Redundancy
Link Aggregation & Backup:
Static/LACP Link Aggregation, Interface Backup
EAPS & ERPS for Fast Convergence
Virtualization & Redundancy:
VSS Virtual Stacking, VRRP
ISSU (In-Service Software Upgrade)
1+1 Power Backup
Management & Monitoring
Protocols & Interfaces:
Console, Telnet, SSH v1/v2, HTTP, HTTPS
SNMP v1/v2/v3, RMON, TFTP, FTP, SFTP
NTP, SPAN, RSPAN, sFlow
Logging & Diagnostics:
Syslog, Event Logging, SNMP Trap
Environmental Specifications
Operating Temperature: 0°C - 50°C
Operating Humidity: 10% - 90% (Non-Condensing)
Storage Temperature: -20°C - 70°C
Storage Humidity: 5% - 95% (Non-Condensing)
Included Accessories
Power Cord
Rackmount Kits
Console Cable
General
- TypesManaged
- Switching Capacity176 Gbit/s
