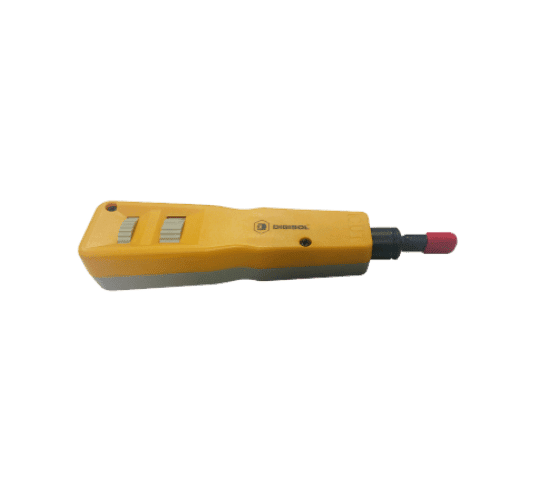

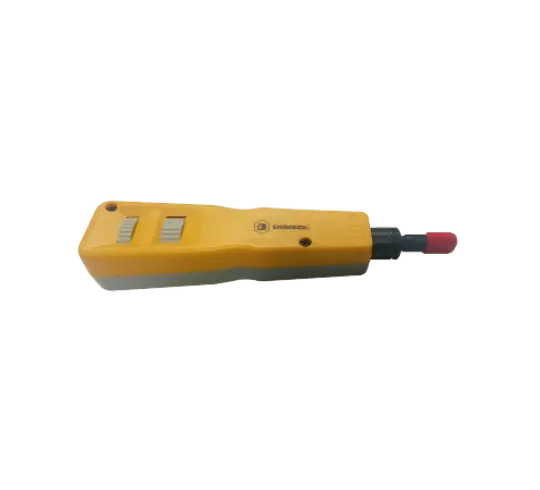

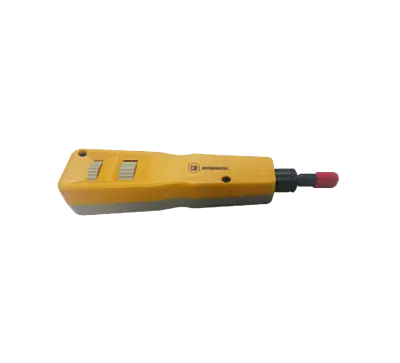

DIGISOL Impact Tool with Blades for 110 & Krone IDC
Key Features | Description |
|---|---|
Impact Tool with Interchangeable Blades | Designed for versatility with replaceable blades |
Supports 110, 66 Block, and Krone/ADC Formats and Blades | Compatible with multiple industry formats |
User Adjustable Impact Force | Features a dial in the handle to customize impact force |
Extra Blade Storage | Provides additional storage for extra blades within the handle |
Heavy Duty | Engineered for robust, industrial use |
Parameter | Specification |
|---|---|
Outer Sheath (CCTV Cable) | |
Color & Material of Outer Sheath | FR PVC, White (IEC 60332-1) |
Cable Diameter (Oval) | 5.70 ± 0.30 mm |
Jacket Thickness | 0.65 ± 0.10 mm |
Coaxial Cable | |
Inner Conductor | Solid Copper |
No. of Conductors | 1 |
Dielectric Material & Color | HDPE, Natural |
Dielectric Diameter | 1.35 ± 0.10 mm |
Dielectric Thickness | 0.42 ± 0.05 mm |
Shield - Copper Colour | Yes |
Shield - Tape | Aluminum Mylar Tape |
Shield - Braiding | Alloy Braiding |
Coax Jacket Material, Colour & Thickness | PVC, Black, 0.40 ± 0.05 mm |
Braiding Details | |
Diameter of Braid Wire | 0.115 ± 0.01 mm |
No. of Braiding Wires | 48 |
Insulated Cores | |
Core Colours | Red, Yellow, Grey |
Conductor (No. of Strands) | 7 |
Strand Diameter | 0.14 mm |
Insulation Material | PVC Type A |
Insulation Thickness (Average) | 0.40 ± 0.05 mm |
Conductor Diameter (Average) | 1.20 ± 0.10 mm |
Product Description | DIGISOL CCTV 3+1 Standard Cable – Hybrid cable with three power cores for powering cameras and one video core for transmitting images to control room devices |
General
- MaterialPP
- Handle materialSoft grip plastic
- PackageSoft case
