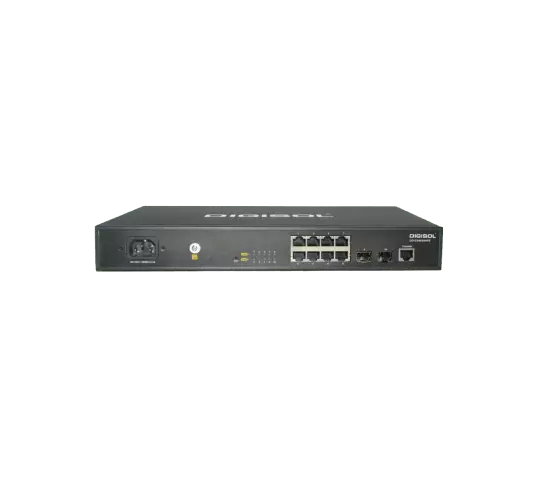

DIGISOL L2 Gigabit Dual Stack Intelligent Switches – DG-GS4610HPE

DIGISOL DG-GS4610HPE: L2 Gigabit Intelligent Ethernet PoE Switch

Hardware Features

• Ports:

  • 8 × 10/100/1000Base-T Ethernet ports

  • 2 × 1G SFP ports

  • 1 × Console port

• Switching Capacity: 20Gbps

• Forwarding Rate: 14.88Mpps

• MAC Address Table: 8K

• Jumbo Frame Support: 9K

• VLAN Table: 4K

• ACL Table: 1.5K + 256

• Queues per Port: 8

• Dimensions (W × H × D): 330 × 220 × 43.6 mm

• Power Input: 100240VAC, 5060Hz

Performance & Physical Characteristics

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -40°C to 70°C

• Relative Humidity: 5%~95% (non-condensing)

• PoE Support:

  • IEEE 802.3af PoE (15.4W)

  • IEEE 802.3at PoE+ (30W)

  • PoE Budget: 124W

Main Features

Networking & VLAN Features

• Storage & Forwarding Mechanism

• VLAN Support:

  • Port-based VLAN

  • IEEE 802.1Q VLAN

  • Private VLAN

  • Protocol VLAN

  • Voice VLAN

  • MAC VLAN

  • QinQ, Selective QinQ, Flexible QinQ

  • VLAN Translation, N:1 VLAN Translation

DHCP Services

• IPv4/IPv6 DHCP Client

• IPv4/IPv6 DHCP Relay (Option 82, Option 37/38)

• IPv4/IPv6 DHCP Snooping

• IPv4/IPv6 DHCP Server

Reliability & Redundancy

• Spanning Tree Protocol (STP) Support:

  • IEEE 802.1D Spanning Tree

  • IEEE 802.1w Rapid Spanning Tree (RSTP)

  • IEEE 802.1s Multiple Spanning Tree (MSTP)

  • Root Guard, BPDU Guard, BPDU Forwarding

• Link Aggregation Control Protocol (LACP):

  • Supports up to 8 groups, 8 ports per group

• L2 Ring Protection:

  • MRPP (ITU-T G.8032)

  • Fast Link with Loopback Detection

Security Features

• Access Control Lists (ACLs):

  • IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL

  • Time-Based ACL

  • VLAN Interface ACL

• Traffic Security:

  • Storm Control (Packet & Byte Based)

  • Port Security with MAC Limit (Port & VLAN Based)

  • Anti-ARP Spoofing, Anti-ARP Scan, ARP Binding

  • ND Snooping, Dynamic ARP Inspection (DAI)

• Authentication & Authorization:

  • IEEE 802.1X Authentication

  • AAA with RADIUS & TACACS+ Support

Multicast Support

• IGMP Snooping (V1, V2, V3)

• IGMP Fast Leave

• MLD Snooping (V1/V2)

• Multicast VLAN Registration (MVR)

QoS & Traffic Management

• 8 Queues per Port

• Traffic Classification Based on:

  • ACL, VLAN ID, COS, ToS, DSCP

  • Policy-Based Routing (Port & VLAN)

• Traffic Scheduling & Prioritization:

  • SP, SDWRR, DWRR

  • DSCP/COS/802.1p Remarking

  • IP Fragmentation Handling

Management & Operations

• Network Management:

  • CLI, Telnet, Console Access

  • Web-Based Management (SSL, IPv4/IPv6)

  • SSH (IPv4/IPv6)

  • SNMPv1/v2c/v3 & SNMP Traps

  • Public & Private MIB Interface

  • Remote Monitoring (RMON 1,2,3,9)

  • Syslog (IPv4/IPv6), SNTP/NTP (IPv4/IPv6)

• Traffic Monitoring & Analysis:

  • Port Mirroring, CPU Mirroring, RSPAN, ERSPAN

  • sFlow, OAM, ULDP (Cisco UDLD Equivalent)

  • LLDP/LLDP-MED

Energy Efficiency & Sustainability

• Green Technology:

  • IEEE 802.3az (Energy Efficient Ethernet)

  • Fanless & Smart Fan Design for Silent Operation

  • LED Auto Shut-Off
