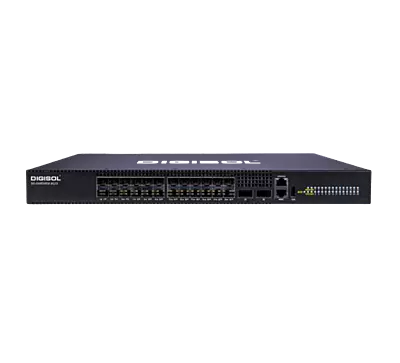

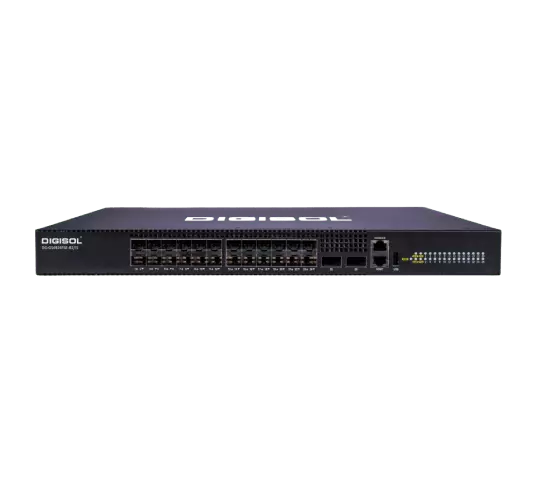

DIGISOL L3 10G(SFP+) Intelligent Switch – DG-GS4926FSE-B2

DG-GS4926FSE-B2: High-Performance 100G Ethernet Routing Switch

Physical Ports:

• Data Ports: 24 × 10GE (SFP+) + 2 × 100GE (QSFP28)

• Management Ports:

  • 1 × RJ45 Ethernet Management Port

  • 1 × Console Port

  • 1 × USB 2.0 Interface

Performance:

• Switching Capacity: 880 Gbps

• Forwarding Rate: 654.72 Mpps

• Jumbo Frame Support: 16K

• MAC Address Table: 96K

• ARP Table: 16K

• Routing Table: 32K

• ACL Table: 1K

• L3 Interfaces: Max 1K

Physical Specifications:

• Dimensions (W × H × D): 440 mm × 44 mm × 420 mm

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -40°C to 70°C

• Humidity: 5%–90% non-condensing (storage up to 95%)

• Power Supply: 1 modular AC (100–240V, 50–60Hz) with an optional second AC module

• Power Consumption: <85W

Key Features:

• High Availability & Loop Protection:

  • Port loopback detection, LLDP & LLDP-MED, UDLD

  • Spanning Tree Protocols: STP (802.1d), RSTP (802.1w), MSTP (802.1s)

  • Root Guard, BPDU Guard

  • Ethernet Link Aggregation (LACP) supporting up to 128 trunk groups, 8 ports per trunk

  • N:1 Port Mirroring, RSPAN, ERSPAN

• Advanced VLAN & Traffic Control:

  • Supports 4K VLANs, MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN

  • QinQ, Selective QinQ, Flexible QinQ, VLAN Translation

  • GVRP, Broadcast/Multicast/Unicast Storm Control

• Multicast Features:

  • IGMP v1/v2/v3 Snooping & L2 Query, IGMP Proxy

  • ND Snooping, MLD v1/v2 Snooping

• Security & Access Control:

  • Port Security, Flow Control (HOL, IEEE 802.3x), Bandwidth Control

  • 802.1x AAA Authentication, MAC-Based Authentication, RADIUS & TACACS+

  • Anti-ARP/NDP Spoofing, ARP Binding, ND Snooping, DHCP Snooping

Layer 3 Features:

• Routing & Multicast:

  • Static Routing, RIP v1/v2, OSPFv2/v3, BGP4/BGP4+

  • Policy-Based Routing (PBR) for IPv4 & IPv6

  • VRRP, URPF, ECMP, BFD

  • Multicast Routing: DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDP

  • Static Multicast Route, Multicast Receive Control, Illegal Multicast Source Detection

• IPv6 Support:

  • ICMPv6, ND, DNSv6

  • IPv6 PBR, VRRPv3, URPF, RA

  • RIPng, OSPFv3, BGP4+

  • MLD Snooping, IPv6 Multicast VLAN, PIM-SM/DM for IPv6

  • IPv6 Anycast RP, IPv6 ACL, IPv6 QoS

Quality of Service (QoS):

• Traffic Prioritization:

  • 8 Queues per Port

  • SWRR, SP, WRR, WDRR, SWDRR Scheduling

  • Traffic Classification: Based on 802.1p CoS, ToS, DiffServ DSCP, ACL, Port Number

  • Traffic Policing, PRI Marking & Remarking

Security & Access Control List (ACL):

• Comprehensive ACL Support:

  • IP ACL, MAC ACL, IP-MAC ACL

  • Source/Destination IP/MAC Filtering, TCP/UDP Port Filtering, VLAN, CoS-Based ACL

  • Time-Based ACL, Redirect & Accounting-Based ACL

Traffic Monitoring & Management:

• Traffic Analysis & Diagnostics:

  • sFlow Traffic Analysis

  • DHCPv4/v6 Server, Client, Relay (Option 82), DHCP Snooping

  • Syslog, External Syslog Server

  • SNMP v1/v2c/v3, SNMP Traps, SNMP MIB

  • FTP/TFTP, SNTP/NTP, RMON (1,2,3,9)

  • Port Mirroring, RSPAN, sFlow

  • Virtual Cable Testing (VCT), Digital Diagnostic Monitoring (DDM), OAM

Network Management & Security:

• Secure Management & Remote Access:

  • CLI, Web GUI, Telnet, SSH v1/v2

  • HTTP SSL Encryption

  • Authentication via RADIUS/TACACS

  • Dual Firmware & Multiple Configuration Files

  • 802.3ah OAM, 802.1ag OAM

Data Center Features:

• Virtual Switch Framework (VSF) – Enables multiple switches to operate as a single logical unit for easier management and redundancy.

Ordering Information:

Model:DG-GS4926FSE-B2

• 100G Ethernet Routing Switch with 24 × 10GE (SFP+) + 2 × 100GE (QSFP28) ports

• Includes 1 Modular AC Power Supply, with an option for an additional AC unit
