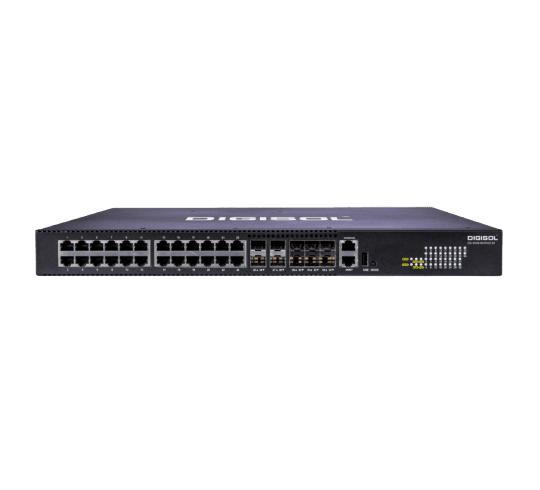

DIGISOL L3 10G(SFP+) Intelligent Switches – DG-GS4634HPSE2-B2

Technical Specifications

Model: DG-GS4634HPSE2-B2

Physical Ports

• Ethernet Ports: 24 × 1GE (PoE)

• Fiber Ports: 4 × 1GE (SFP) + 6 × 10GE (SFP+)

Management Ports

• 1 × RJ45 Ethernet Management Port

• 1 × Console Port

• 1 × USB 2.0 Interface

Performance

• Switching Capacity: 176 Gbps

• Forwarding Rate: 130.94 Mpps

• Jumbo Frame Support: 16K

• MAC Address Table: 96K

• ARP Table Size: 16K

• Routing Table Size: 1K

• ACL Table Entries: 1K

• L3 Interfaces: Maximum 1K

Physical & Environmental

• Dimensions (W × H × D): 440mm × 44mm × 360mm

• Relative Humidity:

  • 5% – 90% (non-condensing)

  • Storage: up to 95%

• Temperature:

  • Operating: 0°C to 50°C

  • Storage: -40°C to 70°C

Power over Ethernet (PoE)

• PoE Standards Supported:

  • IEEE 802.3af PoE (15.4W)

  • IEEE 802.3at PoE+ (30W)

• PoE Output:

  • 375W with 1 Power Supply Unit (PSU)

  • 750W with 2 PSUs

Power Supply

• 1 × Modular AC Power Supply (Included)

• 1 × Optional AC Power Supply (100–240V AC, 50–60Hz)

• Power Consumption: <1000W

Main Features

• Network Monitoring & Management:

  • Port Loopback Detection

  • Link Layer Discovery Protocol (LLDP) & LLDP-MED

  • Unidirectional Link Detection (UDLD)

  • Port Mirroring (N:1, RSPAN, ERSPAN)

• Switching & VLAN Capabilities:

  • IEEE 802.3ad LACP (Supports up to 128 trunk groups, max 8 ports per trunk)

  • Load Balancing via LACP

  • VLAN: IEEE 802.1Q, 4K VLANs, MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN

  • QinQ, Selective QinQ, Flexible QinQ

  • VLAN Registration Protocol (GVRP)

• Spanning Tree Protocol (STP):

  • IEEE 802.1d (STP)

  • IEEE 802.1w (RSTP)

  • IEEE 802.1s (MSTP)

  • Root Guard, BPDU Guard

• Traffic & Security Features:

  • Storm Control for Broadcast, Multicast, and Unicast

  • IGMP v1/v2/v3 Snooping, IGMP Proxy

  • MLD v1/v2 Snooping

  • ND Snooping

  • Port Security

  • Flow Control (HOL Blocking, IEEE 802.3x)

  • Bandwidth Control

Layer 3 (L3) Features

• Routing Protocols:

  • Static Routing, RIPv1/v2, OSPFv2, BGP4

  • OSPFv3, BGP4+

  • OSPF Multiple Processes

  • Policy-Based Routing (PBR) for IPv4 & IPv6

  • Virtual Router Redundancy Protocol (VRRP)

  • Unicast Reverse Path Forwarding (URPF)

  • Equal-Cost Multi-Path (ECMP)

  • Bidirectional Forwarding Detection (BFD)

• Multicast Features:

  • DVMRP, PIM-DM, PIM-SM, PIM-SSM

  • Anycast RP, MSDP

  • Static Multicast Routing

  • Multicast Receive Control

  • Illegal Multicast Source Detection

• Address Resolution & Security:

  • ARP Guard, Local ARP Proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit

  • Anti-ARP/NDP Spoofing & Scanning

  • IPv6 ICMPv6, ND

  • DNS Client & Relay

• IPv6 Routing & Security:

  • IPv6 Policy-Based Routing (PBR)

  • IPv6 VRRPv3, IPv6 URPF, IPv6 Router Advertisement (RA)

  • RIPng, OSPFv3, BGP4+

  • MLD v1/v2, PIM-SM/DM for IPv6

  • IPv6 Anycast RP, IPv6 ACL, IPv6 QoS

Quality of Service (QoS)

• Traffic Prioritization & Scheduling:

  • 8 Queues

  • Strict Priority (SP), Weighted Round Robin (WRR), Deficit WRR (DWRR), SDWRR

  • Classification based on 802.1p COS, ToS, DiffServ DSCP, ACL, and Port Number

  • Traffic Policing

  • Priority Marking & Remarking

Access Control Lists (ACLs)

• Types:

  • IP ACL, MAC ACL, IP-MAC ACL

  • Standard & Expanded ACLs based on Source/Destination IP, MAC, IP Protocol, TCP/UDP Port, DSCP, ToS, VLAN, Tag/Untag, CoS

  • Redirect & Accounting-Based ACLs

  • Configurable per Port & VLAN

  • Time-Based ACLs

Security Features

• Authentication & Authorization:

  • IEEE 802.1x AAA

  • Port & MAC-Based Authentication

  • Accounting Based on Time & Traffic

  • Guest VLAN & Auto VLAN Assignment

  • RADIUS & TACACS+ for IPv4/IPv6

  • MAC Authentication Bypass (MAB)

Network Management & Monitoring

• DHCP Services:

  • DHCPv4/v6 Server & Client

  • DHCP Relay with Option 82

  • DHCP Snooping with Option 82

• Traffic Analysis & Monitoring:

  • sFlow Traffic Analysis

• Network Administration & Logging:

  • Command Line Interface (CLI), Web, Telnet, SNMPv1/v2c/v3 over IPv4 & IPv6

  • Syslog with External Syslog Server Support

  • Secure Management via HTTP SSL, SNMP MIB, SNMP TRAP, FTP/TFTP

  • RMON 1,2,3,9

  • Authentication via RADIUS/TACACS

  • SSH v1/v2

  • Dual Firmware & Configuration Support

  • IEEE 802.3ah & 802.1ag OAM

Data Center Features

• Virtual Switch Framework (VSF)

Ordering Information

• Model: DG-GS4634HPSE2-B2

• Description: DIGISOL 10G Ethernet Routing Switch, 24 × 1GE (PoE) + 4 × 1GE (SFP) + 6 × 10GE (SFP+), 1 modular AC + 1 optional AC power supply, up to 375W PoE output with 1 PSU and 750W with 2 PSUs.

• Warranty: Subject to DIGISOL PRODUCT WARRANTY terms & conditions available on the company website.
