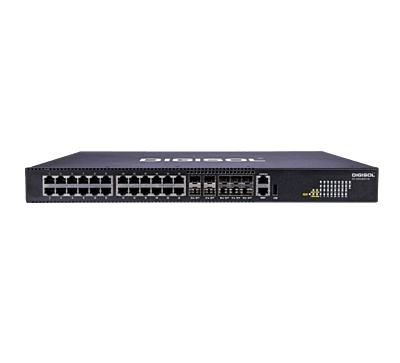

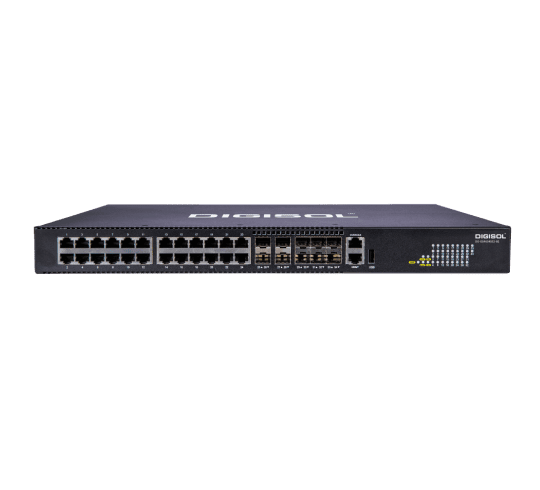

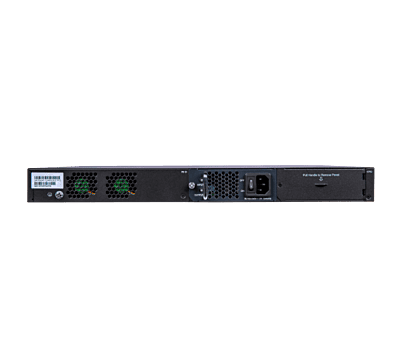

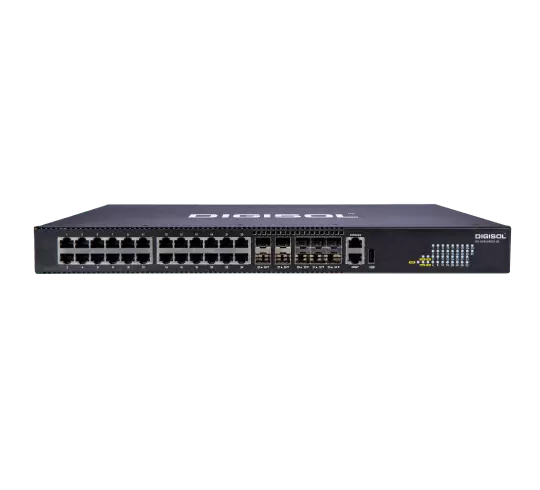

DIGISOL L3 10G (SFP+) Intelligent Switches – DG-GS4634SE2-B2

Technical Specifications – DG-GS4634SE2-B2

Physical Ports

• Ethernet Ports: 24 × 1GE RJ45

• SFP Ports: 4 × 1GE SFP

• SFP+ Ports: 6 × 10GE SFP+

Management Interfaces

• 1 × RJ45 Ethernet Management Port

• 1 × Console Port

• 1 × USB 2.0 Interface

Performance

• Switching Capacity: 176 Gbps

• Forwarding Rate: 131 Mpps

• Jumbo Frame Support: 16K

• MAC Address Table: 96K

• ARP Table: 16K

• Routing Table: 1K

• ACL Table: 1K

• Maximum L3 Interfaces: 1K

Physical Specifications

• Dimensions (W × H × D): 44cm × 4.4cm × 36cm

• Relative Humidity: 5% – 90% (non-condensing), Storage: 95%

• Temperature Range:

  • Operating: 0°C – 50°C

  • Storage: -40°C – 70°C

Power & Consumption

• Power Supply:

  • 1 Modular AC (included)

  • 1 Optional AC (100 – 240V AC, 50 – 60Hz)

• Power Consumption: <85W

Main Features

Switching & VLAN Features

• Loopback Detection

• LLDP & LLDP-MED, UDLD

• Link Aggregation: IEEE 802.3ad LACP (Supports up to 128 trunk groups, with max 8 ports per trunk, LACP load balancing)

• Mirroring: N:1 Port Mirroring, RSPAN, ERSPAN

• Spanning Tree Protocols: IEEE 802.1d (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP)

• VLAN Features:

  • IEEE 802.1Q (Supports 4K VLANs)

  • MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN

  • QinQ, Selective QinQ, Flexible QinQ

  • GVRP (GARP VLAN Registration Protocol)

• Traffic Control & Security:

  • Broadcast/Multicast/Unicast Storm Control

  • IGMP Snooping (v1/v2/v3) and L2 Query, IGMP Proxy

  • ND Snooping, MLD Snooping (v1/v2)

  • Port Security, Flow Control (HOL, IEEE 802.3x)

  • Bandwidth Control

Layer 3 (L3) Features

• Routing Protocols:

  • Static Routing, RIPv1/v2, OSPFv2, BGP4

  • OSPFv3, BGP4+

  • OSPF Multiple Processes

• Advanced Routing Features:

  • Policy-Based Routing (PBR) for IPv4 & IPv6

  • VRRP, URPF, ECMP, BFD

• Multicast Support:

  • DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDP

  • Static Multicast Route

  • Multicast Receive Control

  • Illegal Multicast Source Detection

• ARP Features:

  • ARP Guard, Local ARP Proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit

  • Anti-ARP/NDP Cheat, Anti-ARP/NDP Scan

• IPv6 Support:

  • IPv6 ICMPv6, ND, Policy-Based Routing (PBR)

  • IPv6 VRRPv3, URPF, RA

  • RIPng, OSPFv3, BGP4+

  • MLD Snooping, IPv6 Multicast VLAN

  • MLDv1/v2, PIM-SM/DM for IPv6, Anycast RP, ACL, QoS

Quality of Service (QoS)

• Queue Management: 8 Queues

• Scheduling: SP, WRR, WDRR, SWDRR

• Traffic Classification:

  • Based on 802.1p COS, ToS, DiffServ DSCP, ACL, Port Number

  • Traffic Policing, Priority Marking & Remarking

• Access Control Lists (ACL):

  • IP ACL, MAC ACL, IP-MAC ACL

  • Standard & Extended ACLs (Based on Source/Destination IP, MAC, IP Protocol, TCP/UDP Port, DSCP, ToS, VLAN, etc.)

  • REDIRECT and Accounting-Based ACL

  • Time-Based ACL Configuration

Security Features

• 802.1x AAA Authentication:

  • Port & MAC-Based Authentication

  • Time-Based & Traffic-Based Accounting

  • Guest VLAN & Auto VLAN Assignment

  • RADIUS & TACACS+ for IPv4/IPv6

  • MAB (MAC Authentication Bypass)

• DHCP Security:

  • DHCPv4/v6 Server & Client

  • DHCP Relay with Option 82

  • DHCP Snooping with Option 82

Network Management & Monitoring

• Traffic Analysis:

  • sFlow-Based Traffic Monitoring

• Network Management:

  • CLI, Web Interface, Telnet, SNMPv1/v2c/v3 (IPv4 & IPv6)

  • Syslog & External Syslog Server

  • HTTP/SSL Management

  • SNMP MIB & SNMP TRAP

  • FTP/TFTP Support

  • SNTP/NTP Time Synchronization

  • RMON (1,2,3,9) for Network Monitoring

  • Authentication via RADIUS/TACACS+

  • SSH v1/v2 Secure Access

  • Dual Firmware Images & Configuration Files

• OAM (Operations, Administration & Maintenance):

  • IEEE 802.3ah OAM

  • IEEE 802.1ag OAM

Data Center Features

• VSF (Virtual Switch Framework): Allows multiple switches to be managed as a single virtual switch

Product Information

• Model: DG-GS4634SE2-B2

• Product Type: 10G Ethernet Routing Switch

• Warranty: Subject to DIGISOL product warranty terms and conditions as displayed on the company's website

• Manufacturer: DIGISOL SYSTEMS LIMITED
