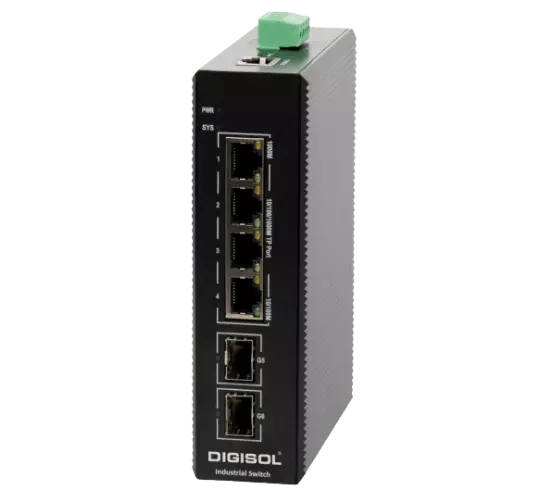

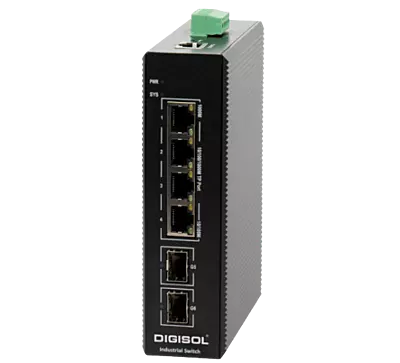

DIGISOL Managed Industrial Switch with 2 Gigabit SFP Ports and 4 Gigabit PoE Ports, PoE: 120W – DG-IS4506HPE

Technical Specifications – DIGISOL DG-IS4506HPE

Switching Solutions

• Model Number: DG-IS4506HPE

• Interface: 4 Gigabit Ethernet (GE) PoE ports, 2 100/1000M SFP ports

• Console: 1 RJ45 port

• Switching Capacity: 12 Gbps

• Forwarding Rate: 9 Mpps

Physical & Power Specifications

• Dimensions: 146 × 108 × 40 mm

• Weight (Empty): 0.8 Kg

• Package Dimensions: 176 × 130 × 55 mm

• Package Weight: 1.3 Kg

• Power Consumption (No Load): <12W

• Power Consumption (Full Load with PoE): 140W

• Total Output (1000BTU/H = 293W): 477.82

• MTBF (Mean Time Between Failures): <1,174,398.12 hours

• PoE Power Budget: 120W

• Forwarding Mode: Store-and-Forward

• Flash Memory: 16 MB

• DRAM: 128 MB

• MAC Address Table: 8K

• Buffer Size: 4 MB

• Jumbo Frame Support: 9K

• Power Input: Dual DC 48~55V

• Total SVI (Switched Virtual Interface): 10

• Operating Temperature: -40°C to 85°C

Key Features & Functionality

VLAN Support

• Supports 4K VLAN entries

• GVRP (GARP VLAN Registration Protocol)

• QinQ (VLAN Stacking)

• Private VLAN for enhanced network segmentation

Ring Protection & Redundancy

• Spanning Tree Protocols: 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

• BPDU (Bridge Protocol Data Unit) Protection, Root Protection, and Ring Protection

• EAPS (Ethernet Automatic Protection Switching)

• ERPS (Ethernet Ring Protection Switching)

Multicast Management

• MVR (Multicast VLAN Registration)

• IGMP Snooping v1/v2

• IGMP Fast Leave

• Multicast Group Policy & Number Limitation

IP Routing & DHCP

• Default Gateway Configuration

• DHCP Client & DHCP Snooping

Quality of Service (QoS)

• Traffic Control & Prioritization

• 802.1P / DSCP Priority Remarking

• Multiple Queueing Algorithms: SP, WRR, or SP + WRR

• QoS Policies Based on IP ACL, VLAN, CoS, DSCP, IP Preference

• Traffic Supervision & Traffic Shaping

• Packet Dropping & Redirection

Advanced Security Features

• ACL-Based (L2/L3/L4) Identification & Filtering

• Suppression of Broadcast, Multicast & Unknown Unicast Traffic

• Port Isolation & Port Security

• MAC & IP Address Binding

• DHCP Snooping with Option 82 Support

• IEEE 802.1x Authentication

• RADIUS & TACACS Authentication

• Command Line Protection & Access Control

Network Reliability & Redundancy

• Static & LACP (Link Aggregation Control Protocol)

• Ethernet OAM (Operations, Administration, and Maintenance)

• ISSU (In-Service Software Upgrade)

• Backup Uplink for Network Failover
