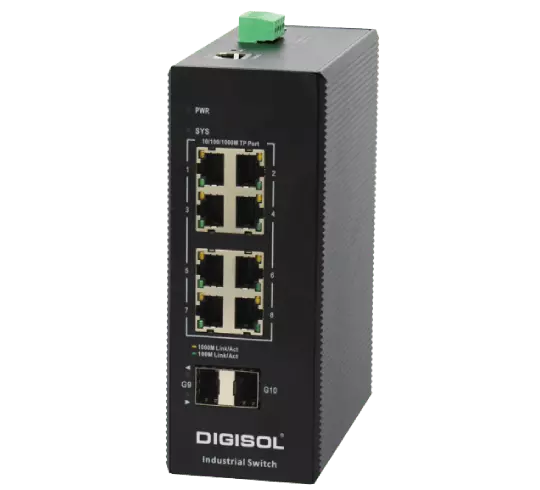

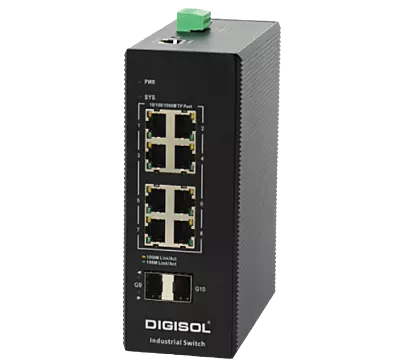

DIGISOL Managed Industrial Switch with 2 Gigabit SFP Ports and 8 Gigabit TX Ports – DG-IS4510E
Key Features
Wide Operating Temperature Range – Designed to function reliably in extreme conditions.
Advanced Hardware Architecture – Ensures high performance and efficiency.
Industry-Leading Port Density – Supports multiple high-speed connections for enhanced networking.
Versatile Service Capabilities – Adapts to various network applications and requirements.
Comprehensive IPv6 Support – Future-proof networking with full IPv6 compatibility.
Robust Security Mechanism – Provides advanced protection against cyber threats.
IP40 Protection & 6KV Lightning Protection – Enhanced durability and resistance to environmental hazards.
Technical Specifications
Model Number: DG-IS4510E
Interface: 8 Gigabit Ethernet (GE) TX ports, 2 100/1000M SFP ports
Console: 1 RJ45 port
Switching Capacity: 20 Gbps
Forwarding Rate: 15 Mpps
Dimensions (W × D × H): 165 × 130 × 65 mm
Weight (without packaging): 1.04 Kg
Package Dimensions (W × D × H): 242 × 207 × 86 mm
Package Weight: 1.5 Kg
Power Consumption (No Load): < 12W
Power Consumption (Full Load): 18W
Power Supply: Dual DC 12~55V
Total Output (1000 BTU/H = 293W): 61.43W
MTBF (Mean Time Between Failures): > 800,000 hours
Forwarding Mode: Store-and-Forward
Flash Memory: 16 MB
DRAM: 128 MB
MAC Address Table: 8K entries
Buffer Size: 4 MB
Jumbo Frame Support: 9K
Total SVI (Switched Virtual Interfaces): 10
Operating Temperature: -40°C to 85°C
Key Features
VLAN Support
Supports 4K VLAN entries
GVRP, QinQ, and Private VLAN
Ring Protection
STP (802.1D), RSTP (802.1W), and MSTP (802.1S) for network redundancy
BPDU protection, root protection, and ring protection
EAPS & ERPS for fast network recovery
Multicast Support
MVR (Multicast VLAN Registration)
IGMP Snooping
IGMP Fast Leave
Multicast group policy and traffic control
DHCP Features
DHCP Client
DHCP Snooping
Quality of Service (QoS)
Traffic control with 802.1P/DSCP priority remarking
Multiple queuing algorithms (SP, WRR, SP+WRR)
IP ACL/ANY/VLAN/COS/DSCP-based QoS
Traffic supervision & shaping
Drop and redirect functionalities
Advanced Security Features
Identification and filtering of L2/L3/L4-based ACL
Suppression of broadcast, multicast, and unknown unicast packets
Port isolation for network segmentation
Port security with IP + MAC + Port binding
IEEE 802.1X authentication (Port/MAC-based)
RADIUS & TACACS authentication
Command line hierarchical protection
Network Reliability
Static/LACP Link Aggregation
Ethernet OAM for fault detection
ISSU (In-Service Software Upgrade)
Backup link support for network resilience
Management & Maintenance
Console, Telnet, and SSH 2.0 support
Zero Touch Provisioning (ZTP) for easy deployment
Browser-based WEB management
SNMP v1/v2/v3 for remote monitoring
TFTP support for firmware upgrades
RMON (Remote Network Monitoring)
IPv6 Compatibility
ICMPv6, DHCPv6, ACLv6, IPv6 Telnet
IPv6 Neighbor Discovery & Path MTU Discovery
MLD Snooping
Access Control List (ACL) Support
L2/L3/L4 ACL
IPv4 & IPv6 ACL
VLAN ACL
The DIGISOL DG-IS4510E is built for high-performance industrial networking, providing advanced security, redundancy, and robust IPv6 capabilities to meet modern enterprise and industrial demands.
General
- Switching Capacity20 Gbit/s
