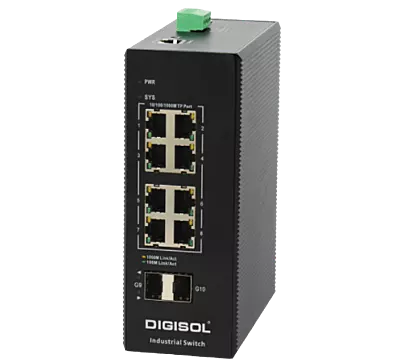

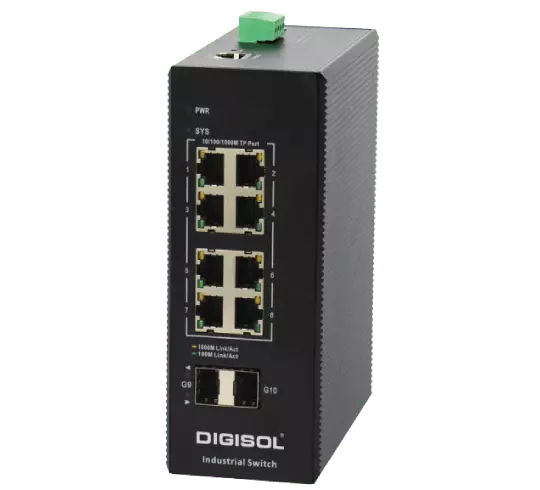

DIGISOL Managed Industrial Switch with 2 Gigabit SFP Ports and 8 Gigabit PoE Ports,240W – DG-IS4510HPE

Technical Specifications

Model: DG-IS4510HPE

Interfaces:

• 8 x Gigabit Ethernet PoE ports

• 2 x 100/1000M SFP ports

• 1 x RJ45 console port

Performance:

• Switching Capacity: 20 Gbps

• Forwarding Rate: 15 Mpps

• Forwarding Mode: Store-and-Forward

• MAC Address Table: 8K

• Buffer Size: 4 MB

• Jumbo Frame Support: 9K

Memory:

• Flash Memory: 16 MB

• DRAM: 128 MB

Power:

• Power Input: Dual DC 48~55V

• Power Consumption (No Load): <12W

• Power Consumption (Full Load with PoE): 260W

• PoE Power Budget: 240W

• Total Output (BTU): 887.37

Reliability:

• MTBF: <977,995 hours

Environmental Specifications:

• Operating Temperature: -40°C to 85°C

• Humidity: 10% to 90% RH (non-condensing)

Physical Dimensions:

• Device Dimensions (W × D × H): 16.5 × 13.0 × 6.5 cm

• Device Weight (Empty): 1.1 kg

• Package Dimensions (W × D × H): 24.2 × 20.7 × 8.6 cm

• Package Weight: 1.6 kg

Note:

• Power adapter not included in the package.

• Warranty is subject to DIGISOL’s terms and conditions as mentioned on the company website.

Features & Functionalities

VLAN Support:

• Guest VLAN

• 4K VLAN entries

• GVRP

• QinQ

Ring Protection & Redundancy:

• Spanning Tree Protocols: STP (802.1D), RSTP (802.1W), MSTP (802.1S)

• Protection Mechanisms: BPDU guard, Root guard, Ring protection

• Ethernet Ring Protection Switching (ERPS) & EAPS support

Multicast Features:

• Multicast VLAN Registration (MVR)

• IGMP Snooping v1/v2

• IGMP Fast Leave

• Multicast group policy and limitations

• 2K multicast route table

IP Routing & DHCP Services:

• Default Gateway

• DHCP Client, Relay, and Snooping

QoS (Quality of Service):

• CAR Traffic Control

• 802.1P / DSCP priority remarking

• Multiple queue scheduling algorithms (SP, WRR, SP+WRR)

• Advanced QoS with VLAN, IP, COS, DSCP prioritization

• Traffic shaping, supervision, drop, and redirection

Security Features:

• Layer 2/3/4 ACL-based filtering

• Broadcast, multicast, and unknown unicast suppression

• Port isolation and MAC filtering

• Port Security: IP+MAC+Port binding

• DHCP Security: DHCP Snooping & Option 82

• Access Control: IEEE 802.1X authentication (Port/MAC-based), RADIUS & TACACS authentication

• Additional Protection: Command-line hierarchical security, MAC aging, and Duplicate Address Detection (DAD)

Reliability & Redundancy:

• Static & LACP Link Aggregation

• Ethernet OAM (Operations, Administration, and Maintenance)

• In-Service Software Upgrade (ISSU)

• Backup Link & Flow Control

Management & Monitoring:

• Remote Access: Console, Telnet, SSH 2.0

• Configuration & Automation: Zero Touch Provisioning (ZTP)

• User Interface: Web-based management with SSL encryption

• Diagnostics & Logging:

  • Traceroute

  • SNTP/NTP time synchronization

  • Syslog

  • DNS Client

  • SNMP v1/v2/v3

  • Remote Network Monitoring (RMON)

  • Multi-level security access for the console

  • TFTP-based firmware upload & download

IPv6 Support:

• ICMPv6, DHCPv6, ACLv6

• IPv6 Neighbor Discovery & Path MTU Discovery

• MLD Snooping

• IPv6 ACL

Access Control Lists (ACLs):

• Layer 2/3/4 ACL

• IPv4 & IPv6 ACL

• VLAN ACL
