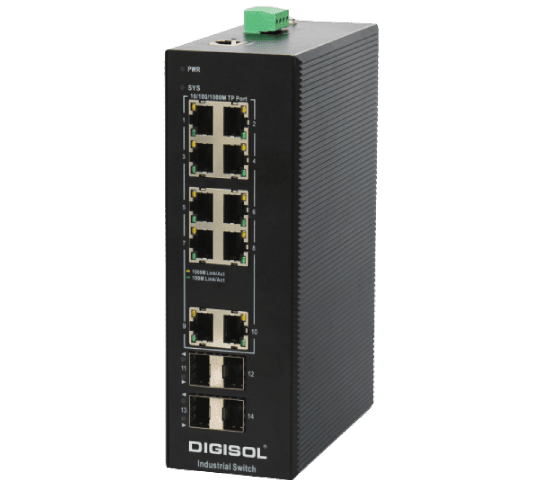

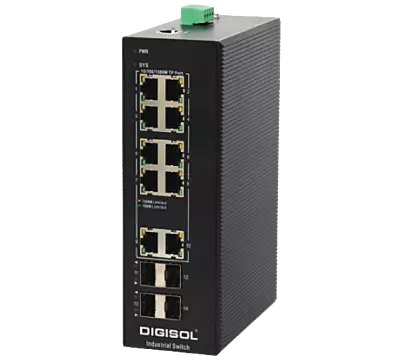

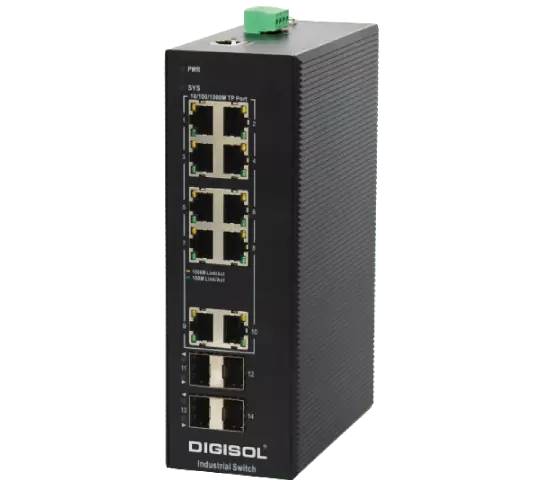

DIGISOL Managed Industrial Switch with 4 Gigabit SFP Ports, 2 Gigabit TX Ports and 8 Gigabit PoE Ports, 240W – DG-IS4514HPE

Technical Specifications

Model Number: DG-IS4514HPE

• Interfaces:

  • 8 Gigabit PoE Ports

  • 2 Gigabit TX Ports

  • 4 100/1000M SFP Ports

  • 1 RJ45 Console Port

• Performance:

  • Switching Capacity: 28 Gbps

  • Forwarding Rate: 21 Mpps

  • Forwarding Mode: Store-and-Forward

  • MAC Table: 8K

  • Buffer Size: 4 MB

  • Jumbo Frame Support: 9K

• Memory & Storage:

  • Flash Memory: 16 MB

  • DRAM: 128 MB

• Power:

  • PoE Power Budget: 240W

  • Power Consumption (No Load): <15W

  • Power Consumption (Full Load with PoE): 260W

  • Power Input: Dual DC 48~55V

  • Total Output: 887.37 BTU/H

• Physical & Environmental:

  • Dimensions: 188 × 130 × 64 mm

  • Weight (Empty): 1.3 Kg

  • Package Dimensions: 242 × 207 × 86 mm

  • Package Weight: 1.8 Kg

  • Operating Temperature: -40°C to 85°C

  • MTBF: >852,224 hours

Key Features & Functionalities

Advanced VLAN Capabilities:

• Supports 4K VLAN entries, GVRP, QinQ, and Private VLAN

Ring Protection & Network Stability:

• 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP) for loop prevention

• BPDU Protection, Root Protection, EAPS, ERPS for improved network reliability

Multicast Support:

• MVR, IGMP Snooping, IGMP Fast Leave for efficient multicast traffic handling

• Multicast Group Policy & Traffic Limitations

IP Routing & DHCP Services:

• Default Gateway Support

• DHCP Client, DHCP Snooping, DHCP Option82

Quality of Service (QoS):

• Car Traffic Control, 802.1P / DSCP Priority Remark

• Multiple Queuing Algorithms: SP, WRR, SP+WRR

• QoS Based on IP ACL, VLAN, COS, DSCP

• Traffic Supervision, Traffic Shaping, Drop, Redirect

Security & Network Protection:

• L2/L3/L4-based ACL Filtering for advanced access control

• Suppression of Broadcast, Multicast & Unknown Unicast Packets

• Port Isolation & Security

• IP + MAC + Port Binding for Secure Access

• IEEE 802.1X Authentication with Radius & Tacacs+ Support

• Command Line Hierarchical Protection

High Reliability & Redundancy:

• Static & LACP Link Aggregation

• Ethernet OAM for Network Monitoring

• ISSU (In-Service Software Upgrade) for Zero Downtime

• Backup Link for Failover Protection

Ordering Information:

DG-IS4514HPE: DIGISOL Managed Industrial Switch with 4 Gigabit SFP Ports, 2 Gigabit TX Ports, and 8 Gigabit PoE Ports (PoE: 240W)

Note:

• Power Adapter Not Included in the Package

• Warranty Terms as per DIGISOL Product Warranty Policy

• DIGISOL and related logos are registered trademarks of DIGISOL SYSTEMS LIMITED

• Product specifications are subject to change without notice
