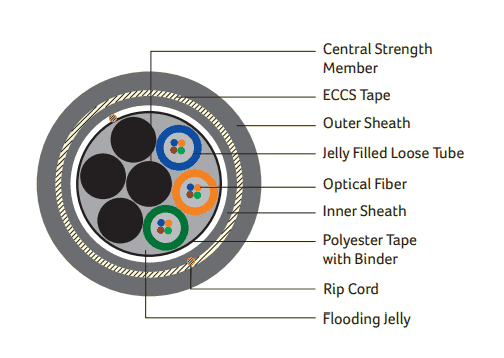

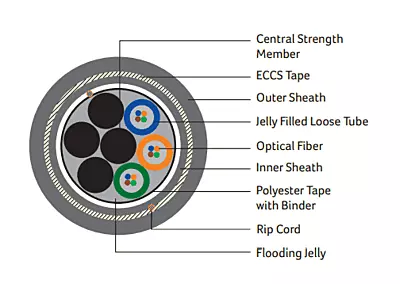

DIGISOL Multi Mode, Multitube Double Sheath Armoured Cable
Key Features
Suitable for Outdoor network direct burial
Rodent proof
UV protection
Polyester based cord below armour tape for easy ripping
Thermoplastic material loose tube
Core covering Polyester tape with binder
Excellent water proof layer and moisture resistance
Excellent Crush resistance performance
Light weight and Compact structure
Specifications Table
Constructional & Mechanical Specifications
Parameters/Fiber Cores | 04 F | 06 F | 08 F | 12 F | 24 F | 48 F | 72 F | 96 F |
|---|---|---|---|---|---|---|---|---|
Number of Fiber per Tube | 02 | 02 | 04 | 04 | 04 | 08 | 12 | 12 |
Number of Loose Tube | 02 | 03 | 02 | 06 | 06 | 06 | 08 | 08 |
Tensile Strength | 2000 N | |||||||
Standards | IEC 60794-1-2-E1 | |||||||
Crush Resistance | 4000 N/100 mm (IEC 60794-1-2-83) | |||||||
Impact Strength | 25 N.m (IEC 60794-1-2-E4) | |||||||
Torsion | ±180° (IEC 60794-1-2-17) | |||||||
Minimum Bend Radius | 20xD (IEC 60794-1-2-E11) | |||||||
Optical Fiber Specifications
Parameters | Fiber Type | Attenuation (@850 nm) | Attenuation (@1300 nm) | Bandwidth (@850 nm) | Bandwidth (@1300 nm) | Core Diameter | Cladding Diameter | Coating Diameter |
|---|---|---|---|---|---|---|---|---|
G.652D (OS2) | 162.5 μm (OM1) | 3.5 dB/km | 1.5 dB/km | 200 MHz.km | 600 MHz.km | 62.5 ± 2.5 µm | 125 ± 1 µm | 250 ± 15 µm |
Environmental Specifications
Parameters | Value |
|---|---|
Storage Temperature | -40°C to +60°C |
Installation Temperature | -20°C to +70°C |
Operating Temperature | -20°C to +60°C |
Standards | IEC 60793-1 & 60794-1, ANSI/TIA 568-C.3 & ISO/IEC 11801, Telecordia GR-20 Core |
