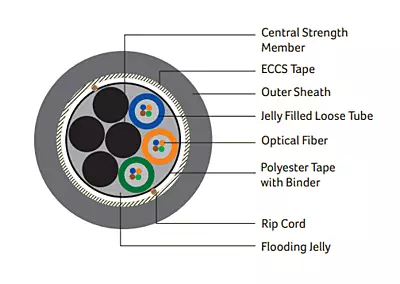

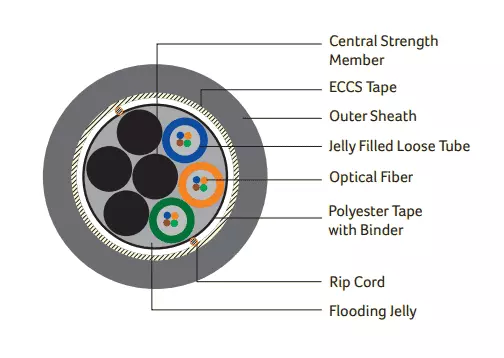

DIGISOL Multi Mode, Multitube Single Sheath Armoured Cable
Key Features
Suitable for Outdoor network direct burial
Rodent proof
UV protection
Polyester based cord below armour tape for easy ripping
Thermoplastic material loose tube
Core covering Polyester tape with binder
Excellent water proof layer and moisture resistance
Excellent Crush resistance performance
Light weight and Compact structure
Constructional and Mechanical Specifications
Parameters/Fiber Cores | 04 F | 06 F | 08 F | 12 F | 24 F | 48 F | 72 F | 96 F |
|---|---|---|---|---|---|---|---|---|
Number of Fiber per Tube | 02 | 02 | 04 | 04 | 04 | 08 | 12 | 12 |
Tensile Strength | 2200 N | |||||||
Standards | IEC 60794-1-2-E1 | |||||||
Crush Resistance | 4000 N/100 mm | |||||||
Impact Strength | 25 N.m (IEC 60794-1-2-E4) | |||||||
Minimum Bend Radius | 20D (IEC 60794-1-2-E11) | |||||||
Environmental Specifications
Parameter | Value |
|---|---|
Storage Temperature | -40°C to +60°C |
Installation Temperature | -20°C to +70°C |
Operating Temperature | -20°C to +60°C |
Standards | IEC 60793-1 & 60794-1, ANSI/TIA 568-C.3 & ISO/IEC 11801, Telecordia GR-20 Core |
Optical Fiber Specifications
Parameters | Value |
|---|---|
Fiber Type | G.652D (OS2) |
Attenuation (@850 nm) | 3.5 dB/km |
Attenuation (@1300 nm) | 1.5 dB/km |
Core Cladding Concentricity Error | ≤1 µm |
Cladding Diameter | 125 ± 1 µm |
Cladding Non-circularity | ≤1% |
Coating Diameter | 250 ± 15 µm |
