DIGISOL Multi Mode, Multitube Single Sheath Unarmoured Cable
Key Features
Suitable for Indoor/Outdoor network
Rodent proof
UV protection
Thermoplastic material loose tube
Core covering Polyester tape with binder
Excellent water proof layer and moisture resistance
Excellent Crush resistance performance
Light weight and Compact structure

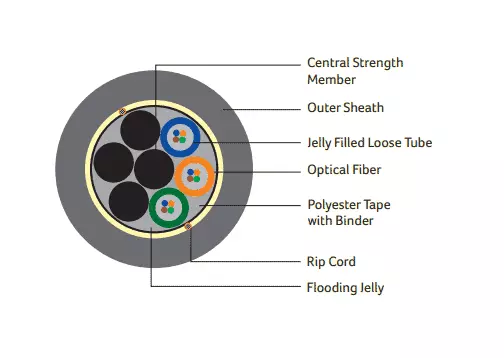

Constructional Specifications
Parameters/Fiber Cores | 04 F | 06 F | 08 F | 12 F | 24 F | 48 F | 72 F | 96 F |
|---|---|---|---|---|---|---|---|---|
Number of fiber per Tube | 02 | 02 | 04 | 04 | 04 | 08 | 12 | 12 |
Mechanical Specifications
Parameters | Value |
|---|---|
Tensile Strength | 1000 N |
Standards | IEC 60794-1-2-E1 |
Crush Resistance | 2000 N/100mm |
Impact Strength | 25 N.m |
Torsion | ±180° |
Minimum Bend Radius | 20 x D |
Optical Fiber Specifications
Parameters | Value |
|---|---|
Fiber Core | 04, 06, 08, 12, 24, 48, 72, 96 F |
Fiber Type | 162.5 µm (0M1), 50 µm (012), 50 µm (0M3), 50 µm (0M4) |
Attenuation (@1300 mm) | ≤3.5 dB/km, ≤2.7 dB/km, ≤1.5 dB/km, ≤0.8 dB/km |
Bandwidth | ≥ 500 MHz.km |
Core Diameter | 62.5 ± 2.5 µm, 50.0 ± 2.5 µm |
Environmental Specifications
Parameters | Value |
|---|---|
Storage Temperature | -40°C to +60°C |
Installation Temperature | -20°C to +70°C |
Operating Temperature | -20°C to +60°C |
Standards | IEC 60793-1 & 60794-1, ANSI/TIA 568-C.3 & ISO/IEC 11801 |
