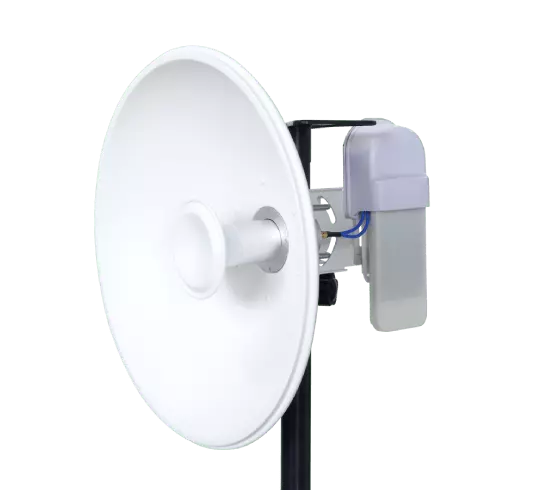

DIGISOL Outdoor 900Mbps 5GHz Point to Point 20Kms with Dish Antenna – DG-WA5ACL20

Chips

QCA9563 + QCA9886 + QCA8334

Flash

SPI NOR 16MB

DDR

DDR2-128MB

WAN

1 x 10/100/1000 Base-T, RJ45, 48V PoE power supply

LAN

1 x 10/100/1000 Base-T, RJ45

LED Indicators

Power, WAN, LAN, Wireless, RSSI x4

ESD Protection

±6KV

Surge Test

Line to line ±2KV

Power Supply

12V 1.5A DC or 48V 0.5A PoE (PoE adapter included)

Power Consumption

< 15W

Slide Switch

One key setting for master or slave

Reset Key

2–5 sec to pair, hold 10 sec to restore factory settings

Dimensions

186 mm (L) × 86 mm (W) × 33 mm (H)

Mounting

Wall / Pole mount (included)

Protective Class

IP65

Operating Temp.

Normal: -30°C to +55°C, Limit: -40°C to +70°C

Humidity

5 ~ 95% (non-condensing)

WLAN Standard

IEEE 802.11 a/n/ac wave2, TDMA

Radio Mode

TDMA MIMO 2x2

Frequency Band

5150 ~ 5850MHz

Transmit Power

Up to 26 dBm (country dependent)

Receive Sensitivity

-90 to -58 dBm (depending on modulation)

Channel Size

20, 40, 80 MHz

Modulation Schemes

802.11a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11ac: OFDM (256-QAM, etc.)

Data Rates

802.11ac @ 40MHz: 30–400 Mbps
802.11ac @ 80MHz: 65–866 Mbps

Error Correction

FEC, LDPC

Duplexing Scheme

Time Division Duplex
