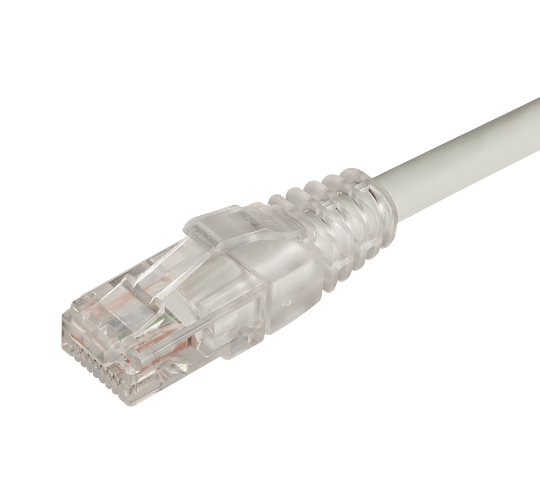

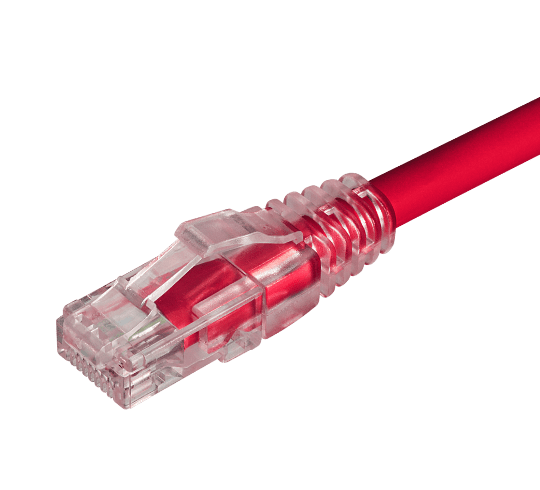

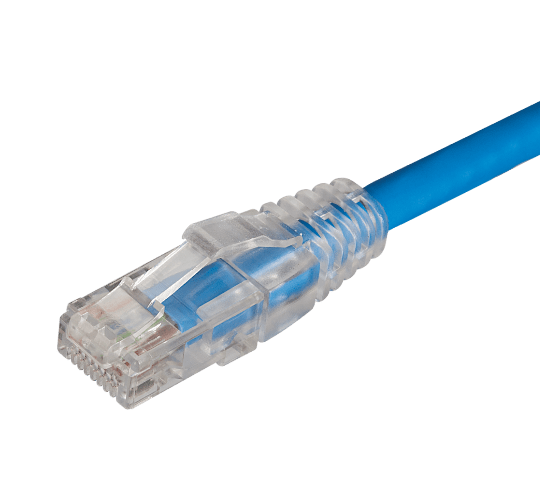

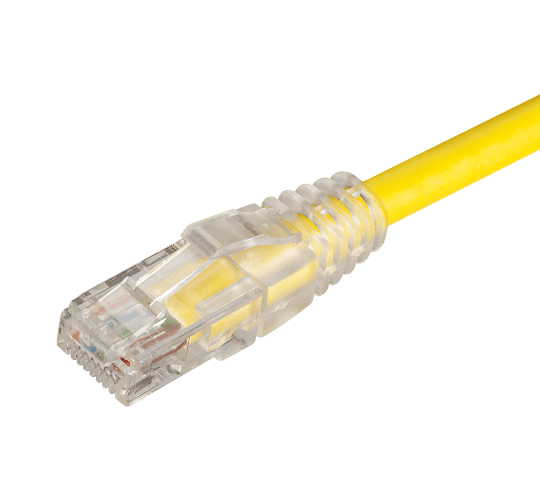

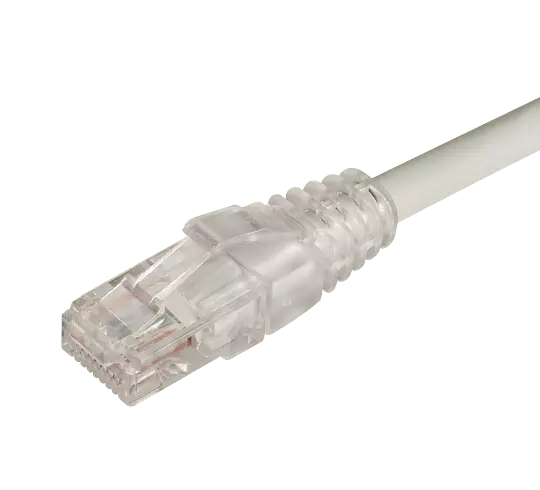

Digisol Patch Cord, Cat 6 UTP
Key Features
LSZH Jacket: Reduced toxic gas emission during combustion, ensuring environmental safety.
Connector Type: RJ45, 8P8C with 2 Fork 50µ’’ Gold Plated Contacts for superior connectivity and corrosion resistance.
Quality Assurance: 100% Factory Tested for reliable performance.
Boot Design: Transparent boot cable assemblies for strain relief and durability.
Color Options: Available in 5 Different Colors – Orange, Grey, Blue, Yellow, and Green.
Technical Specification
Specification | Details |
|---|---|
Conductor Material | Stranded Copper |
Conductor Diameter | 24 AWG |
Insulation Material | HD-PE |
Insulation Thickness | Min at any point: 0.18mm MAX AVG: 0.20mm |
Insulation Diameter | 0.94±0.01mm / 0.92±0.01mm |
Cross Filler | Transparent 4.2×0.35 |
Jacket Type | LSZH (Low Smoke Zero Halogen) |
Jacket Thickness | Min at any point: 0.51mm MAX AVG: 0.55mm |
Jacket Width | Min at any point: 5.2mm MAX AVG: 5.8mm |
Plug | 50µ’’ Gold Plated Contact |
Boot | Transparent |
Standard | ANSI EIA/TIA 568-C.2 |
Colors | Light Grey, Blue, Green, Yellow, Orange |
Size
- Item Length30 m
- Item Weight250 g
