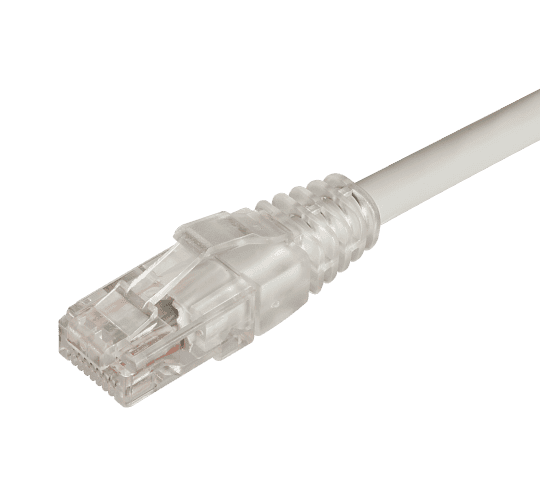

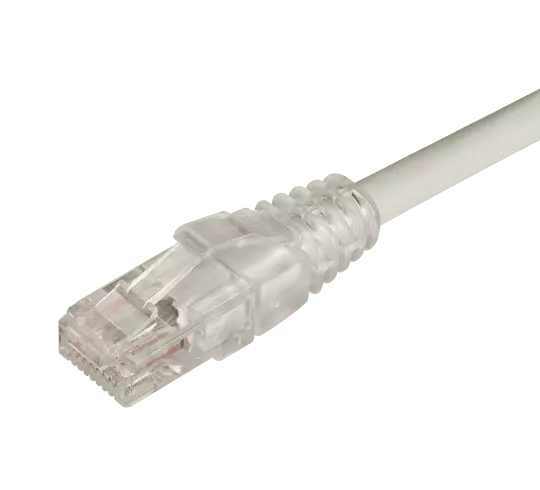

DIGISOL Patch Cord, Cat6, UTP
Key Features
Patchcords are factory terminated and 100% tested for performance.
Pull proof RJ45 type connectors to prevent disconnect.
Low smoke Zero Halogen (LSZH) rated jacket to reduce toxic/corrosive gases.
Performance characterised upto 250 MHz.
Transparent slip on boot with cable assemblies.
Available with T568B wiring scheme crimped at both connector ends.
Available in various colours and various lengths.
Technical Specifications
Mechanical Specifications
Property | Specification |
|---|---|
Plug Insertion/Extraction Life | 750 Cycles min, using FCC approved plug |
Plug & Jack Contact Force | 100 Grams min, using FCC approved plug |
Plug Retention Force | 11 lbf minimum |
Operating Temperature | -20°C to +70°C |
Installation Temperature | -20°C to +70°C |
Standard Verification
Property | Specification |
|---|---|
Compliance | Qualified unscreened Class E/Cat.6 |
CM LS Rated | Yes |
Channel Standard | ANSI/TIA-568-C2 |
International Standards | IEC 60603-7-4 2nd Edition, ISO/IEC 11801 2.2 Edition |
Testing & Certification | ETL Verified, RoHS Compliant |
Physical Specifications
Property | Specification |
|---|---|
Conductor | 24 AWG Stranded Copper Wires (Unshielded) |
Connector Plug | Transparent, 30μ" Gold Plated Contact on Phosphor Bronze Base Material |
Boot | Slip-on Normal Transparent |
Jacket Sheath | LSZH (Low Smoke Zero Halogen) |
Jacket Diameter | 5.8 ± 0.1mm |
Available Colors | Grey, Blue, Green, Yellow, Red, Orange |
Electrical Specifications
Property | Specification |
|---|---|
Current Rating | 1.5 Amps |
Insulation Resistance | 500 MΩ minimum |
Contact Resistance | 20 mΩ maximum |
DC Resistance | 0.1 Ω maximum |
Voltage Rating | 72 VDC maximum |
General
- Types Of CablesPatch Cord
- Ethernet Cable CategoryCat 6
