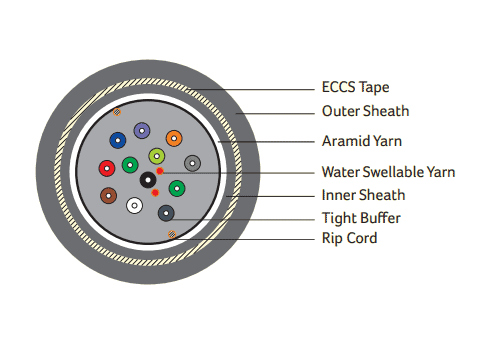

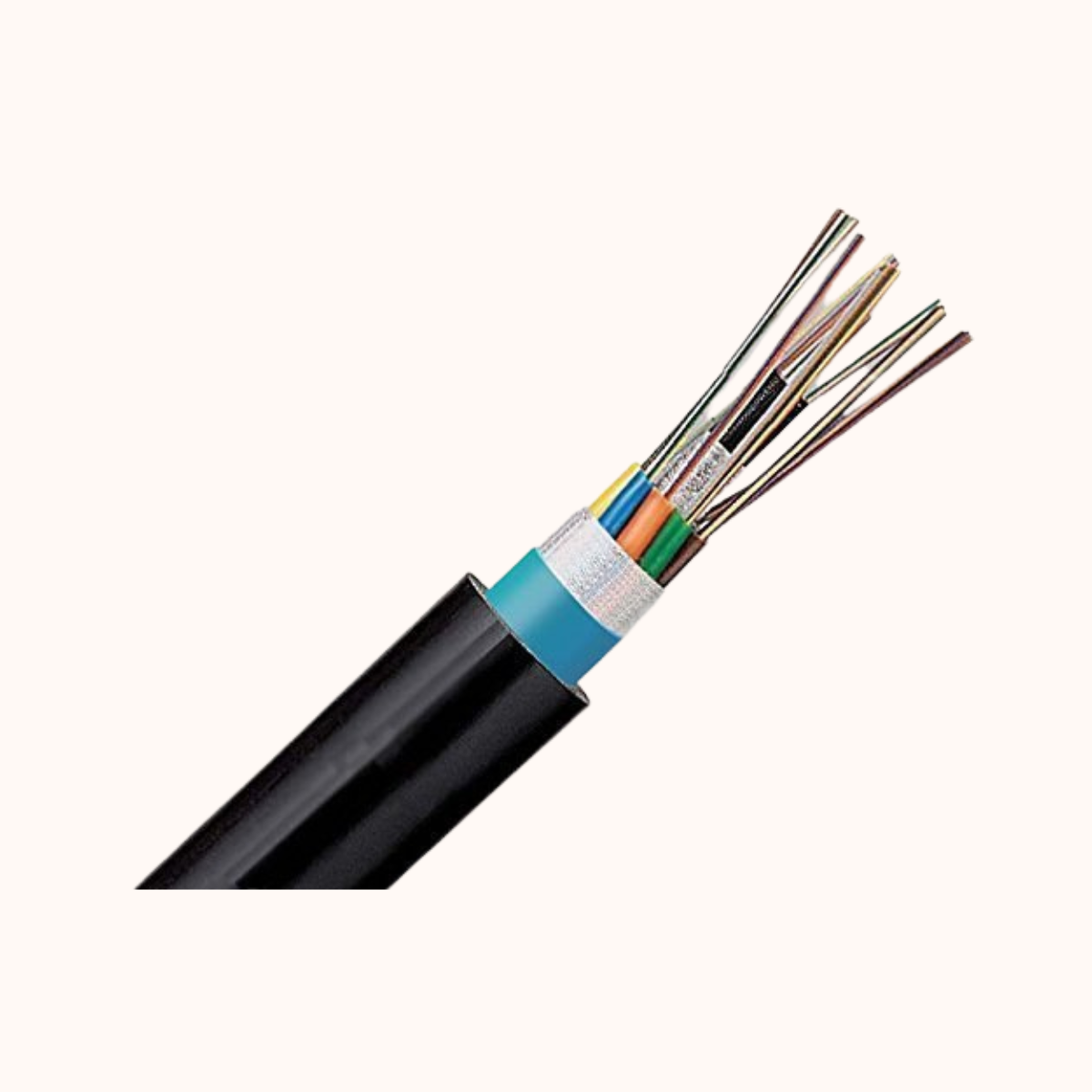

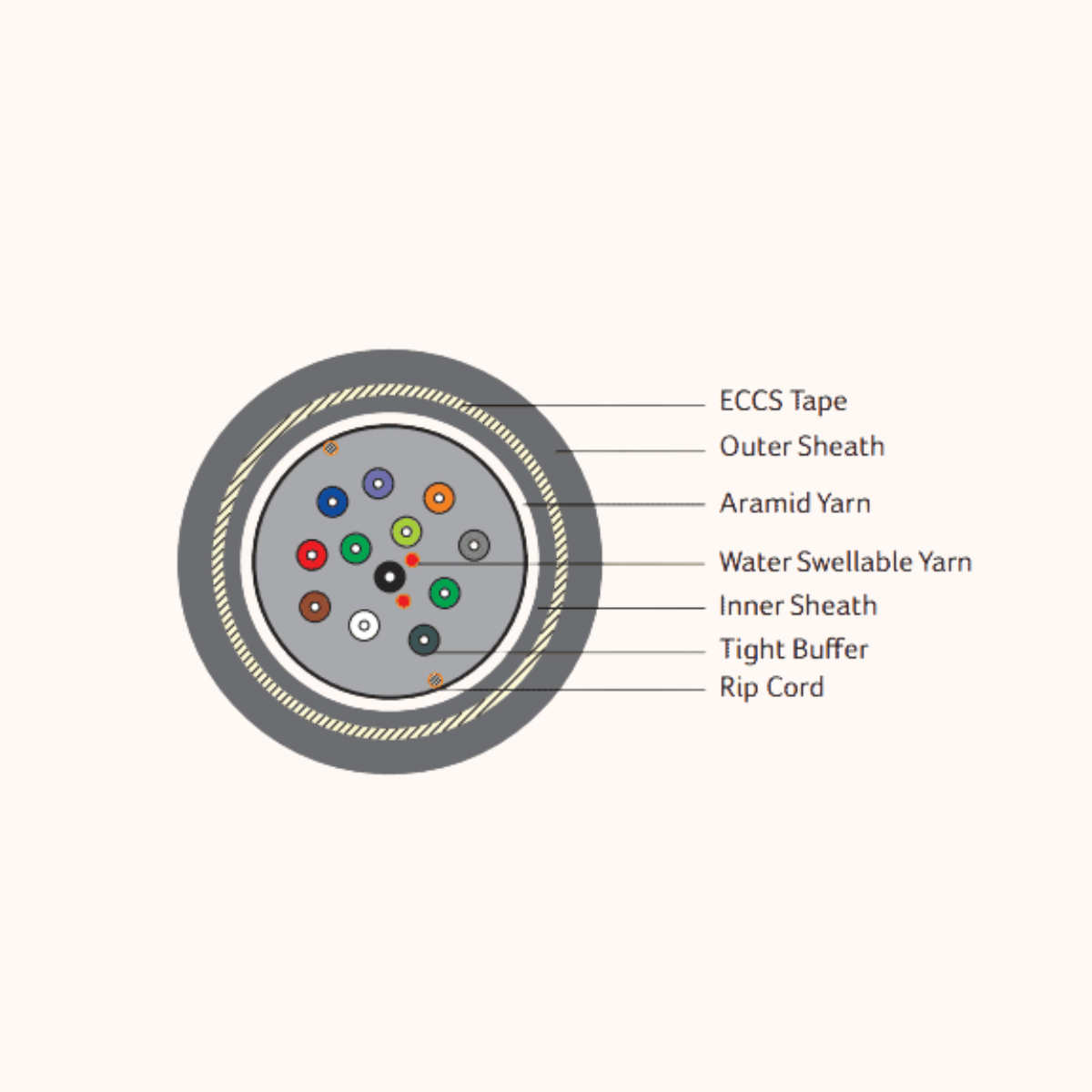

DIGISOL Single Mode (OS2), Armoured, Tight Buffered (Dry Core)

Constructional Specifications

Fiber Core

12 F

Number of Tight Jacketed Fibers

12 nos.

Fiber Colours

Natural

Tight Jacketing over Fibers

900 ± 50μm

Peripheral Strength Member

Aramid yarn

Number of Rip Cords

02 no. (Polyester)

Moisture Barrier

Water Swellable Yarn

Armoring

≥0.150 mm (ECCS Tape)

Inner Sheath Thickness

1.1 mm (Nominal) (LSZH Black)

Outer Sheath Thickness

1.5 mm (Nominal) (LSZH Black)

Cable Diameter

11.3 ± 0.7 mm

Cable Weight (HDPE/LSZH)

150.0 ± 10 kg/km

Jacket Colours

Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Aqua

Environmental Specifications

Storage Temperature

-40°C to +60°C

Installation Temperature

-20°C to +70°C

Operating Temperature

-20°C to +60°C

Standards

Compliance

IEC 60793-1 & 60794-1, ANSI/TIA 568-C.3 & ISO/IEC 11801

Mechanical Specifications

Fiber Core

12 F

Tensile Strength

1000 N

Crush Resistance

2000 N/100 mm

Impact Strength

25 N.m

Torsion

±180°

Minimum Bend Radius

20 x 0

Optical Fiber Specifications

Fiber Type

G.6520 (OS2)

Attenuation

≤0.38 dB/km (@1310nm), ≤0.25 dB/km (@1550nm)

Chromatic Dispersion

3.5 ps/nm.km (@1285-1330 nm), 18 ps/nm.km (@1550 nm)

Zero Dispersion Wavelength

1300-1324 nm

Zero Dispersion Slope

≤0.092 ps/mm².km

Polarization Mode Dispersion

≤0.2 ps/km

Cut-off Wavelength

≤1260 nm

Mode Field Diameter

9.2 ± 0.4 µm (@1310nm)

Core Cladding Concentricity Error

≤0.8 μm

Cladding Diameter

125 ± 1 μm

Cladding Non-circularity

≤1%

Coating Diameter

245 ± 10 μm

Cable Size & Standard Length

Compliance

Telcordia GR-20 Core, ITU-T REC G.652D

Standard Length

12F: 2.0 km ± 10%
