DIGISOL Single Mode (OS2), Multitube Double Sheath Armoured Cable
Key Features
Suitable for Outdoor network direct burial
Rodent proof
UV protection
Polyester based cord below armour tape for easy ripping
Thermoplastic material loose tube
Core covering Polyester tape with binder
Excellent water proof layer and moisture resistance
Excellent Crush resistance performance
Light weight and Compact structure

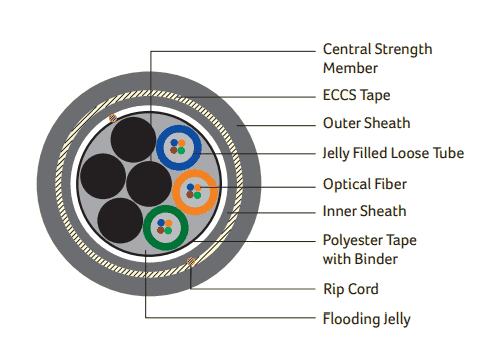

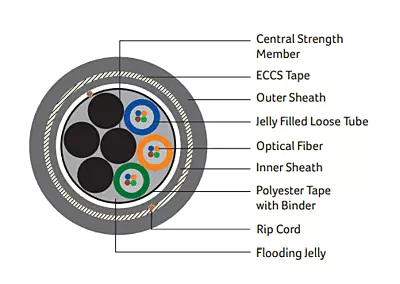

Constructional Specifications
Parameters/Fiber Cores | 04 F | 06 F | 08 F | 12 F | 24 F | 48 F | 72 F | 96 F |
|---|---|---|---|---|---|---|---|---|
Number of Fiber per Tube | 02 | 02 | 04 | 04 | 04 | 08 | 12 | 12 |
Number of Loose Tube | 02 | 03 | 02 | 03 | 06 | 06 | 06 | 08 |
Mechanical Specifications
Parameter | Value |
|---|---|
Fiber Core | 04, 06, 08, 12, 24, 48, 72, 96 |
Tensile Strength | 2000 N |
Crush Resistance | 4000 N/100 mm |
Impact Strength | 25 N.m |
Torsion | ±180° |
Environmental Specifications
Parameter | Value |
|---|---|
Storage Temperature | -40°C to +60°C |
Installation Temperature | -20°C to +70°C |
Operating Temperature | -20°C to +60°C |
Optical Fiber Specifications
Parameter | Value |
|---|---|
Fiber Type | G.652D (OS2) |
Attenuation (@1310 nm) | ≤0.38 dB/km |
Attenuation (@1550 nm) | ≤0.25 dB/km |
Chromatic Dispersion (@1285-1330 nm) | ≤3.5 ps/nm.km |
Chromatic Dispersion (@1550 nm) | ≤18 ps/nm.km |
Zero Dispersion Wavelength | 1300-1324 nm |
Zero Dispersion Slope | ≤0.092 ps/nm².km |
Polarisation Mode Dispersion | ≤0.2 ps/√km |
Cut-off Wavelength | ≤1260 nm |
Mode Field Diameter (@1310 nm) | 9.2 ± 0.4 µm |
Core Cladding Concentricity Error | ≤0.8 µm |
Cladding Diameter | 125 ± 1 µm |
Cladding Non-circularity | ≤1% |
Coating Diameter | 245 ± 10 µm |
