DIGISOL Single Mode (OS2), Multitube Single Sheath Unarmoured Cable
Key Features
Suitable for Indoor/Outdoor network
Rodent proof
UV protection
Thermoplastic material loose tube
Core covering Polyester tape with binder
Excellent water proof layer and moisture resistance
Excellent Crush resistance performance
Light weight and Compact structure

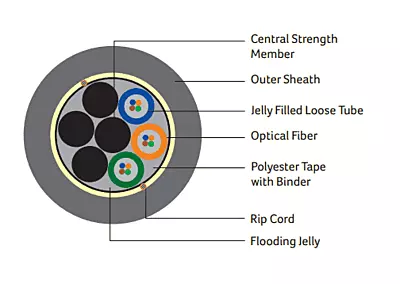

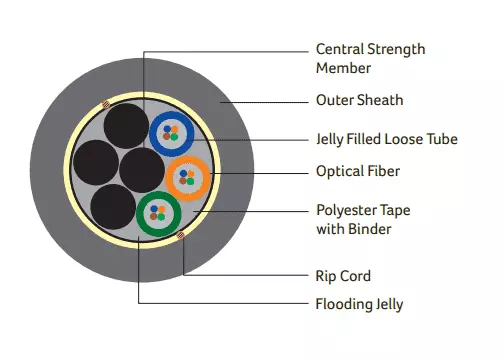

Constructional Specifications
Parameters / Fiber Cores | 04 F | 06 F | 08 F | 12 F | 24 F | 48 F | 72 F | 96 F |
|---|---|---|---|---|---|---|---|---|
Number of Fiber per Tube | 02 | 02 | 04 | 04 | 04 | 12 | 12 | 12 |
Number of Loose Tubes | 02 | 03 | 02 | 03 | 06 | 06 | 06 | 08 |
Number of Fillers | 04 | 03 | 04 | 03 | 00 | 00 | 00 | 00 |
Mechanical Specifications
Parameters | Values | Standards |
|---|---|---|
Tensile Strength | 1000 N | IEC 60794-1-2-E1 |
Crush Resistance | 2000 N/100 mm | IEC 60794-1-2-E3 |
Impact Strength | 25 N.m | IEC 60794-1-2-E4 |
Torsion | ±180° | IEC 60794-1-2-E7 |
Minimum Bend Radius | 20xD | IEC 60794-1-2-E11 |
Environmental Specifications
Parameters | Values |
|---|---|
Storage Temperature | -40°C to +60°C |
Installation Temperature | -20°C to +70°C |
Operating Temperature | -20°C to +60°C |
Optical Fiber Specifications
Parameters | Values |
|---|---|
Fiber Type | G.652D (OS2) |
Attenuation | ≤0.38 dB/km (@1310nm), ≤0.25 dB/km (@1550nm) |
Chromatic Dispersion | ≤3.5 ps/nm.km (@1285-1330 nm), ≤18 ps/nm.km (@1550 nm) |
Zero Dispersion Wavelength | 1300-1324 nm |
Zero Dispersion Slope | ≤0.092 ps/nm².km |
Polarization Mode Dispersion | ≤0.2 ps/√km |
Cut-off Wavelength | ≤1260 nm |
Mode Field Diameter | 9.2 ± 0.4 µm (@1310nm) |
Cladding Diameter | 125 ± 1 µm |
Coating Diameter | 245 ± 10 µm |
Cable Size & Standard Length
Fiber Core | Standard Length |
|---|---|
4F to 12F | 4.0 km ± 10% |
24F to 96F | 4.0 km ± 10% |
Standards
Standard | Description |
|---|---|
IEC 60793-1 & 60794-1 | International fiber optic standards |
ANSI/TIA 568-C.3 & ISO/IEC 11801 | Structured cabling standards |
Telecordia GR-20 Core | Telcordia network standard |
ITU-T REC G.652D | ITU standard for optical fiber |
