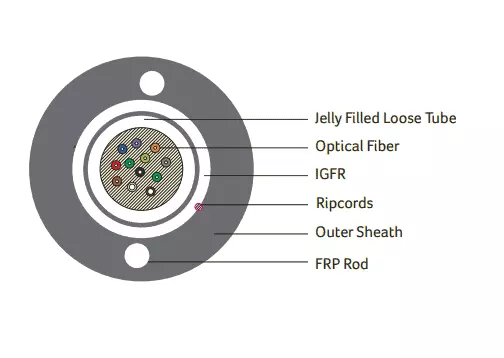

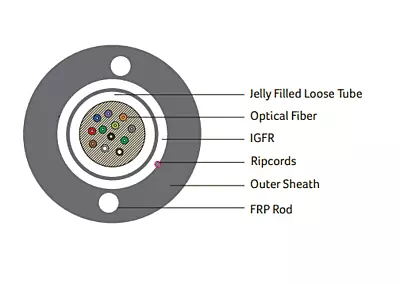

DIGISOL Single Mode (OS2), Unitube Unarmoured Cable G Series

Number of Fiber per Tube

02, 04, 06, 12F

Fiber Colours

• 02 Fibers: Blue, Orange

• 04 Fibers: Blue, Orange, Green, Brown/Natural

• 06 Fibers: Blue, Orange, Green, Brown, Slate, White/Natural

• 12 Fibers: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Aqua/Natural

Number of Loose Tube

01 no.

Loose Tube Colours

Natural

Loose Tube Internal Diameter

2.2 ± 0.1 mm (PBT)

Loose Tube Outer Diameter

3.2 ± 0.1 mm (PBT)

Peripheral Strength Member

1.0 ± 0.05 mm (FRP Rods - 2 nos), Impregnated Glass Fiber Reinforcement (IGFR)

Number of Rip Cords

01 no. (Polyester)

Outer Sheath Thickness

1.5 mm (Nominal) (HDPE-Black)

Cable Diameter

7.0 ± 0.5 mm

Cable Weight

42.07 kg/km

Storage Temperature

-20°C to +70°C

Installation Temperature

-20°C to +70°C

Operating Temperature

-15°C to +70°C

IEC 60793-1 & 60794-1, ANSI/TIA 568-C.3 & ISO/IEC 11801

Tensile Strength

1500 N

Crush Resistance

1500 N/100 mm

Impact Strength

10 N.m

Torsion

±180°

Minimum Bend Radius

20xD

Fiber Type

G.652D (OS2)

Attenuation

≤ 0.34 dB/km (@1310nm), ≤ 0.19 dB/km (@1550nm)

Chromatic Dispersion

≤ 3.5 ps/nm.km (@1285-1330 nm), ≤ 18 ps/nm.km (@1550 nm)

Zero Dispersion Wavelength

1300-1324 nm

Zero Dispersion Slope

≤ 0.092 ps/nm².km

Polarisation Mode Dispersion

≤ 0.2 ps/√km

Cut-off Wavelength

≤ 1260 nm

Mode Field Diameter

9.2 ± 0.4 µm (@1310nm)

Core Cladding Concentricity Error

≤ 0.8 µm

Cladding Diameter

125 ± 1 µm

Cladding Non-circularity

≤ 1%

Coating Diameter

245 ± 10 μm

2.0/3.0 kms ± 10%
