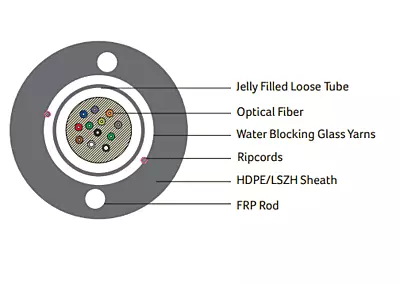

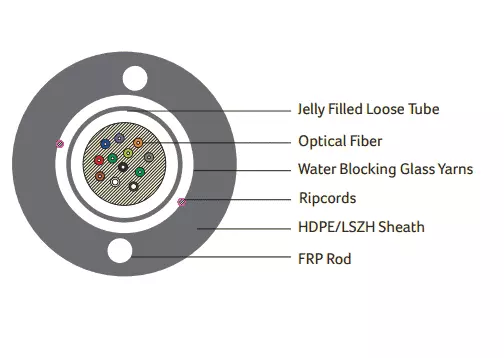

DIGISOL Single Mode (OS2), Unitube Unarmoured Cable

Number of Fiber per Tube

04, 06, 08, 12F / 24F

Number of Loose Tube

01

Loose Tube Colours

Natural

Loose Tube Internal Diameter

2.2 ± 0.1 mm (PBT)

Loose Tube Outer Diameter

3.2 ± 0.1 mm (PBT)

Peripheral Strength Member

1.0 ± 0.05 mm (FRP Rods-2nos), Glass Yarn

Number of Rip Cords

02 nos. (Polyester)

Outer Sheath Thickness

2.0 mm (Nominal) (HDPE/LSZH Black)

Cable Diameter

9.0 ± 0.5 mm / 10.0 ± 0.5 mm

Cable Weight

65.05 kg/km - 95.0 ± 5 kg/km / 75.0 ± 5 kg/km - 105.0 ± 5 kg/km

Fiber Colours

Varies by Fiber Core

Storage Temperature

-40°C to +60°C

Installation Temperature

-40°C to +60°C

Operating Temperature

-20°C to +60°C

Tensile Strength

1700 N

Crush Resistance

2000 N/100 mm

Impact Strength

10 N.m

Torsion

±360°

Minimum Bend Radius

20xD

Fiber Type

G.6520 (052)

Attenuation

≤0.38 dB/km (@1310nm), ≤0.25 dB/km (@1550nm)

Chromatic Dispersion

≤3.5 ps/nm.km (@1285-1330 nm), ≤18 ps/nm.km (@1550 nm)

Zero Dispersion Wavelength

1300-1324 nm

Zero Dispersion Slope

≤0.092 ps/nm².km

Polarisation Mode Dispersion

≤0.2 ps/km

Cut-off Wavelength

≤1260 nm

Mode Field Diameter

9.2 ± 0.4 µm (@1310nm)

Cladding Diameter

125 ± 1 µm

Coating Diameter

245 ± 10 µm

Standard Length

4.0 kms ± 10%

Telecordia Standard

GR-20 Core ITU-T REC G.652D

ANSI/TIA Standard

568-C.3 & ISO/IEC 11801

IEC Standards

IEC 60793-1 & IEC 60794-1
