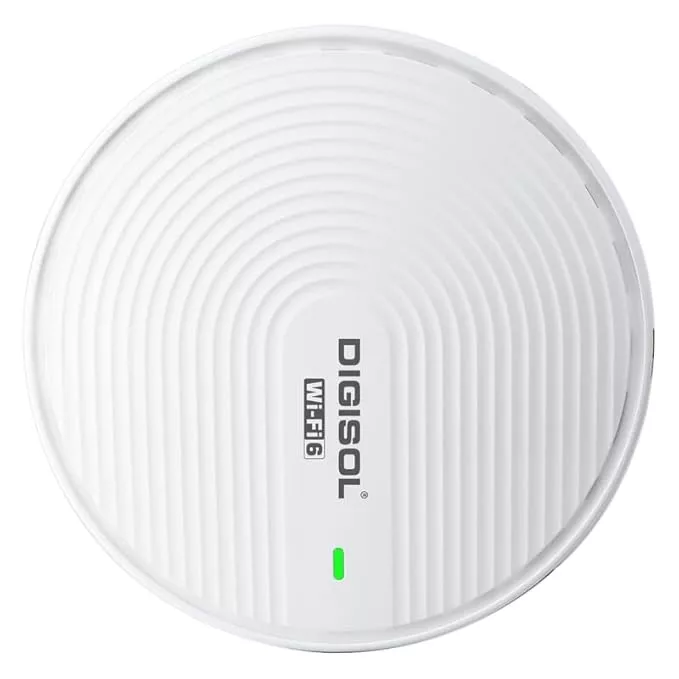

DIGISOL Wi-Fi 6 11ax 1800Mbps Ceiling Wireless Access Point – DG-WM820AX

Technical Specifications

Hardware Specifications:

• Chipset: MT7621DAT + MT7905N + MT7975DN

• Flash Memory: 8MB SPI NOR

• RAM: 128MB

• Interfaces:

  • WAN Port: 1 × 10/100/1000 Mbps RJ45

  • LAN Port: 1 × 10/100/1000 Mbps RJ45

  • Reset Button: Press for 10 seconds to restore factory settings

  • USB 3.0 & Bluetooth: Optional

• Antenna: Built-in 4dBi MIMO Antenna

• Power:

  • DC Input: 12V / 1.5A

  • PoE: 48V (IEEE 802.3af/at)

• LED Indicators: System, WiFi, WAN, LAN

• Power Consumption: ≤ 15W

• Dimensions: 168mm × 168mm × 32mm

Wireless Specifications:

• Standards Supported: 802.11ax/ac/b/g/n

• Frequencies:

  • 2.4GHz: 2.4 - 2.484GHz (802.11b/g/n/ac/ax)

  • 5.8GHz: 5150 - 5850MHz (802.11a/n/ac/ax)

• Data Rate: Up to 1800Mbps

• Maximum Users: 120+ (64 users per band)

• RF Power: ≤ 18dBm

Wireless Features:

• Multiple SSIDs:

  • 2.4GHz: Up to 4 SSIDs

  • 5.8GHz: Up to 4 SSIDs

• Security: WPA, WPA2-PSK (TKIP/AES), WPA2-EAP, WPA3, 802.1x

• Advanced Features:

  • SSID hiding

  • Seamless roaming (802.11kvr)

  • 5G priority for faster connectivity

  • MAC filtering

  • WiFi scheduling for energy efficiency

  • Client isolation for enhanced stability

  • Adjustable RF power based on the environment

  • User limit per band (Max 64 users)

Networking & Management:

• VLAN Support

• Device Management:

  • Configuration backup & restore

  • Factory reset & reboot options (scheduled or immediate)

  • Admin password modification

  • Firmware upgrade via GUI web management or AC controller

  • System logs

Firmware Specifications:

• IPv4 Protocol Support

• Antenna Specifications:

  • Frequency Range: 2.4GHz & 5GHz

  • Impedance: 50 Ohms nominal

  • Gain: 4dBi

  • Radiation Pattern: Omni-directional

  • Polarization: Vertical
