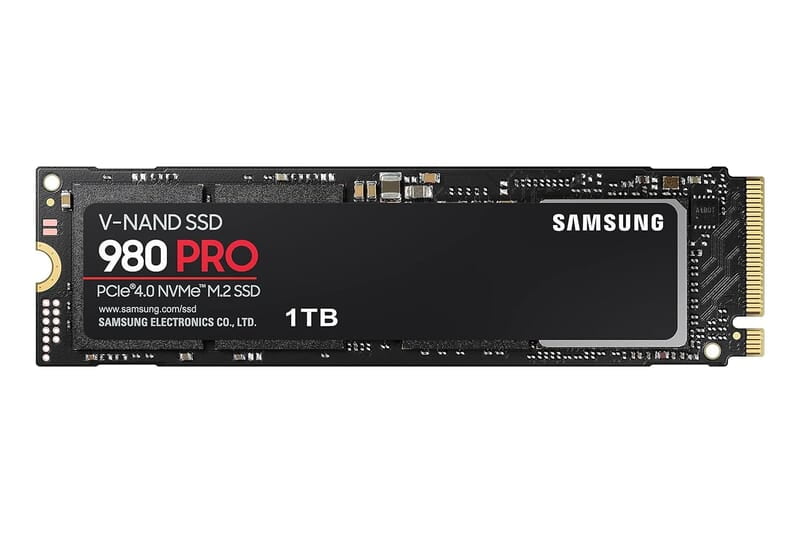

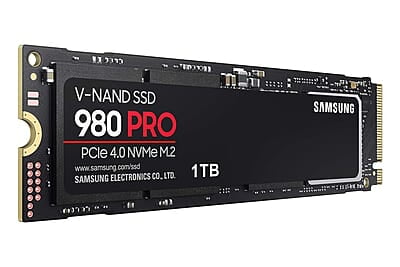

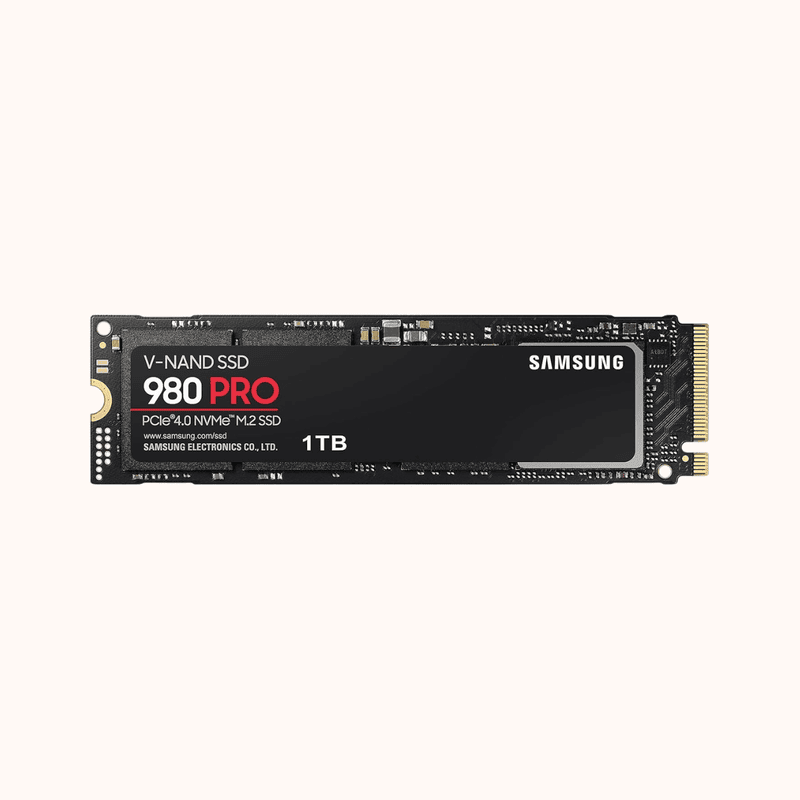

Product Name | 1TB 980 PRO GEN 4 Up to 7,000 MB/s NVMe M.2 |
Storage Capacity | 1TB |
Interface | PCIe Gen 4.0 (x4) NVMe |
Form Factor | M.2 2280 |
Read Speed | Up to 7,000 MB/s |
Write Speed | Up to 5,100 MB/s |
Endurance | 600 TBW (Terabytes Written) |
Sequential Read/Write Speed | 7,000 MB/s read, 5,100 MB/s write (optimized for high-speed applications) |
NAND Type | V-NAND (Samsung's 3-bit MLC NAND) |
DRAM Cache | 1GB LPDDR4X |
Controller | Samsung Elpis Controller |

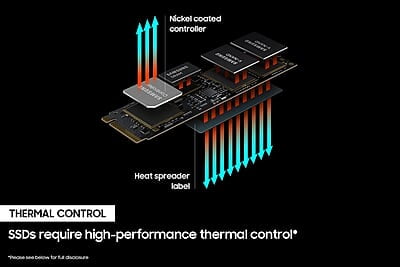

Temperature Management | Dynamic Thermal Guard (DTG) |
Encryption | AES 256-bit hardware encryption (supports TCG Opal 2.0, IEEE 1667) |
Compatibility | Compatible with PCIe Gen 4.0, PCIe Gen 3.0 (backward compatible) |
MTBF (Mean Time Between Failures) | 1.5 million hours |
Operating Temperature Range | 0ยฐC to 70ยฐC |
Interface Connector | M.2 2280 (PCIe 4.0 x4, NVMe 1.4) |
Operating System Support | Windows 10/11, Linux, Mac OS |
Power Loss Protection | Built-in power loss protection for data integrity |
Warranty | 5-year limited warranty |
Dimensions | 80mm x 22mm x 2.38mm (Length x Width x Height) |
Form Factor | M.2 2280 |
Target Audience | Gamers, content creators, professionals requiring high-performance storage solutions for demanding tasks |
Software Support | Samsung Magician software for performance monitoring, firmware updates, and optimization |
Advanced Features | Smart Thermal Management, Samsung V-NAND for enhanced endurance and speed |
Price Range | High-end storage for gaming, video editing, and heavy workloads |
