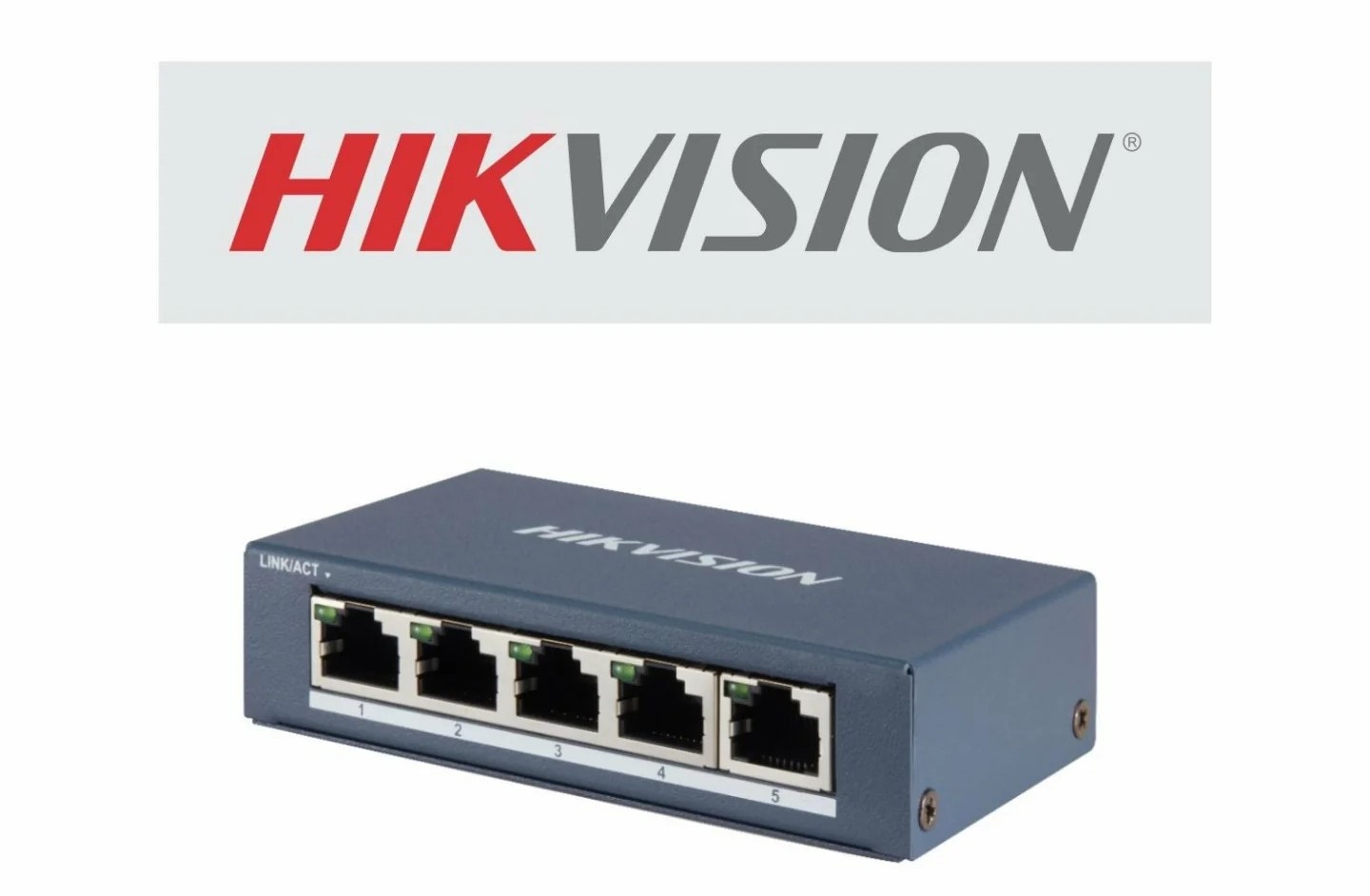

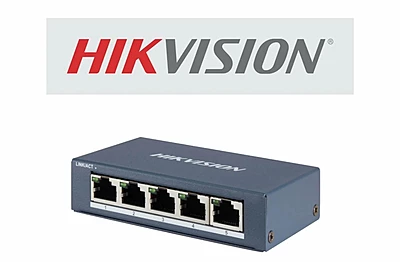

HIKVISION POE Switch Giga 4+1,35W (DS-3E0505P-E/M)
Rs.2,441.00 Rs.3,906.00
Tags:
4 Port Gigabit Unmanaged POE Switch 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port PoE power management Gigabit network access Wire-speed forwarding and non-blocking design Store-and-forward switching Solid high-strength metal shell Reliable fan-free design
Choose Quantity
Product Details
Specifications
Hikvision Ports : 4 × Gigabit PoE ports, and 1 × Gigabit RJ45 port
Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive
Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding Mode : Store-and-forward switching
MAC Address Table : 2 K
Switching Capacity : 10 Gbps
Packet Forwarding Rate : 7.44 Mpps
Internal Cache : 1 Mbits
PoE Standard : IEEE 802.3af, IEEE 802.3at
PoE Power Pin : End-span: 1/2(-), 3/6(+)
PoE Port: Ports 1 to 4
Max. Port Power : 30 W
PoE Power Budget : 35 W
Dimensions (W × H × D) : 105 mm × 27.6 mm × 83.1 mm
Shell : Metal material, fan-free design
Gross Weight : 0.76 kg (1.67 lb)
Net Weight : 0.27 kg (0.58 lb)
Operating Temperature : –10 °C to 55 °C
Power Supply : 48 VDC, 0.8 A
Power Consumption In Idle : 3 W
Max. Power Consumption : 38 W
Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive
Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding Mode : Store-and-forward switching
MAC Address Table : 2 K
Switching Capacity : 10 Gbps
Packet Forwarding Rate : 7.44 Mpps
Internal Cache : 1 Mbits
PoE Standard : IEEE 802.3af, IEEE 802.3at
PoE Power Pin : End-span: 1/2(-), 3/6(+)
PoE Port: Ports 1 to 4
Max. Port Power : 30 W
PoE Power Budget : 35 W
Dimensions (W × H × D) : 105 mm × 27.6 mm × 83.1 mm
Shell : Metal material, fan-free design
Gross Weight : 0.76 kg (1.67 lb)
Net Weight : 0.27 kg (0.58 lb)
Operating Temperature : –10 °C to 55 °C
Power Supply : 48 VDC, 0.8 A
Power Consumption In Idle : 3 W
Max. Power Consumption : 38 W
General
- TypesUnManaged
- Switching Capacity10 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports5
- No. Of Power Supplies Supported4
- Rack MountingYes
- Keyboard / Mouse Port TypeN
- No. Of Computers Controlled4
