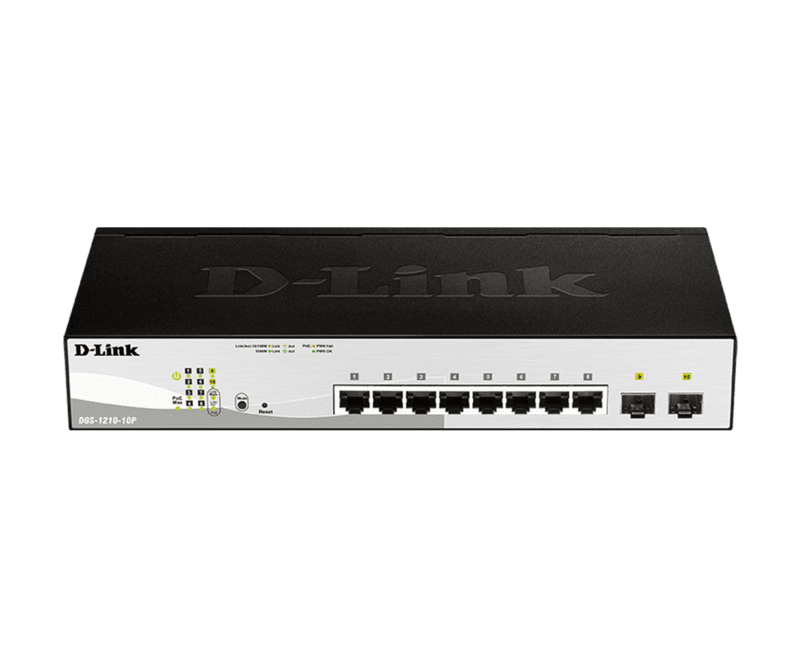

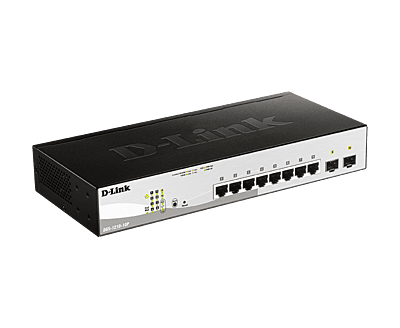

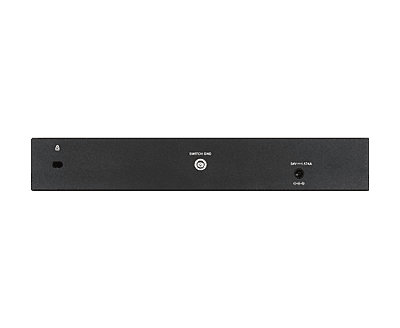

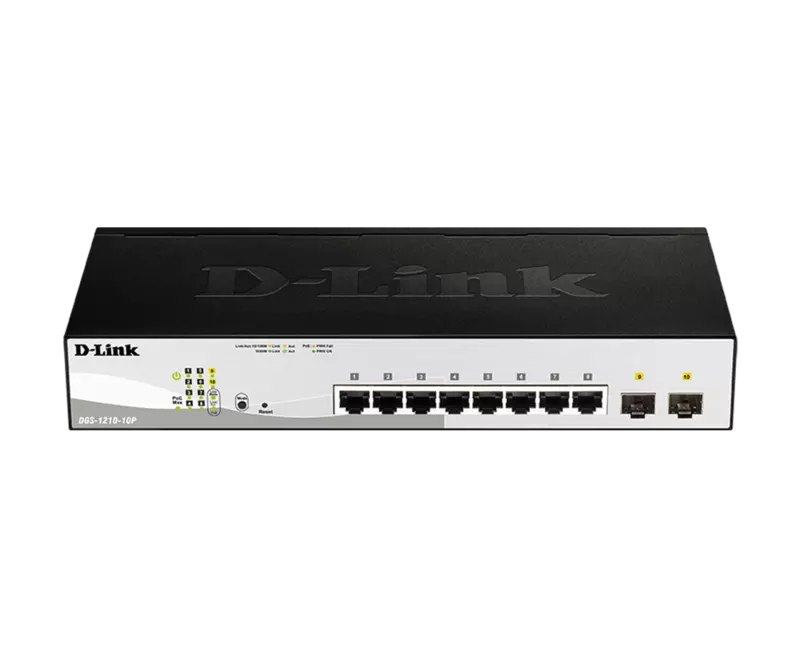

D-Link Business Web Smart 8-Port Gigabit Switch (DGS-1210-10P)
8 Ports: 8 Gigabit Ethernet ports for high-speed connectivity
PoE Support: 8 Power over Ethernet (PoE) ports to power devices such as IP cameras and access points
Web Smart Managed: Simplified management with essential features for small businesses
Energy-Efficient: Includes energy-saving features to reduce power consumption
Feature | Description |
|---|---|
Model | D-Link DGS-1210-10P |
Ports | 8 Gigabit Ethernet Ports + 2 Gigabit SFP Ports |
PoE Support | 8 Ports with IEEE 802.3af/at Power over Ethernet (PoE/PoE+) providing a total power budget of up to 64W |
Managed Type | Web Smart Managed (Easy-to-use web-based management interface) |
Layer | Layer 2 (Switching) |
Switching Capacity | 20 Gbps (Full Duplex) |
Forwarding Rate | 14.88 Million Packets per Second (Mpps) |
VLAN Support | Supports up to 128 VLANs with IEEE 802.1Q VLAN tagging |
QoS (Quality of Service) | Advanced QoS features including 802.1p, DiffServ, and traffic prioritization for improved bandwidth allocation |
Link Aggregation | Supports Link Aggregation (LACP - IEEE 802.3ad) for network redundancy and improved throughput |
Security Features | - 802.1X Port Security - MAC Address Filtering - Access Control Lists (ACL) - Storm Control (Broadcast/Multicast/Unicast) |
Redundancy and Reliability | - Spanning Tree Protocol (STP) - Rapid Spanning Tree Protocol (RSTP) - Loopback Detection |
SFP Ports | 2 Gigabit SFP Ports for fiber uplinks |
Management Interface | Web-based GUI for easy management, also supports SNMP v1/v2/v3 and CLI for advanced configuration |
Energy Efficiency | - IEEE 802.3az Energy Efficient Ethernet (EEE) - D-Link Green technology to reduce energy consumption when devices are idle |
Cooling | Fanless design for silent operation |
Power Supply | Internal Power Supply (100-240V AC, 50/60Hz) |
Dimensions (H x W x D) | 43 mm x 180 mm x 105 mm |
Weight | 0.8 kg (1.76 lbs) |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Warranty | 5-Year Limited Warranty |
Additional Features | - Auto-negotiation and Auto MDI/MDIX for easy connection - Smart fan technology for improved cooling - Diagnostic LEDs for port status monitoring and troubleshooting |
