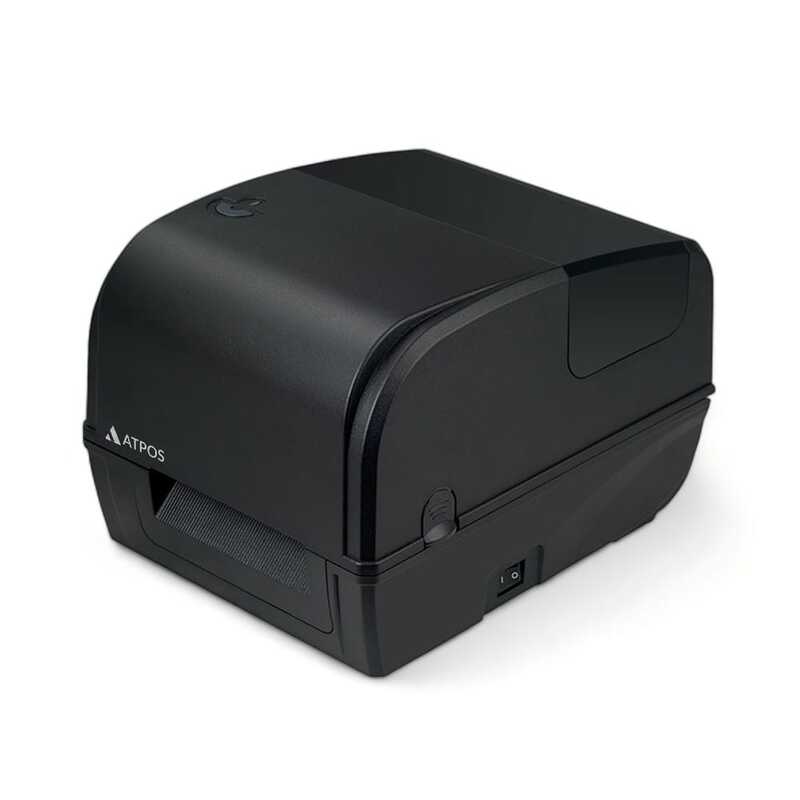

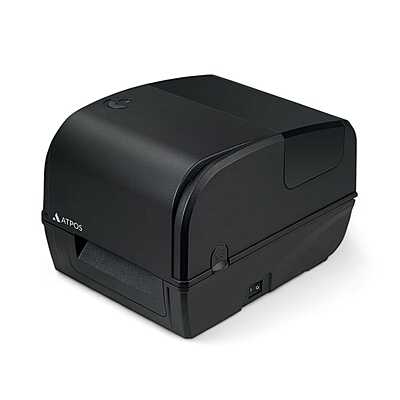

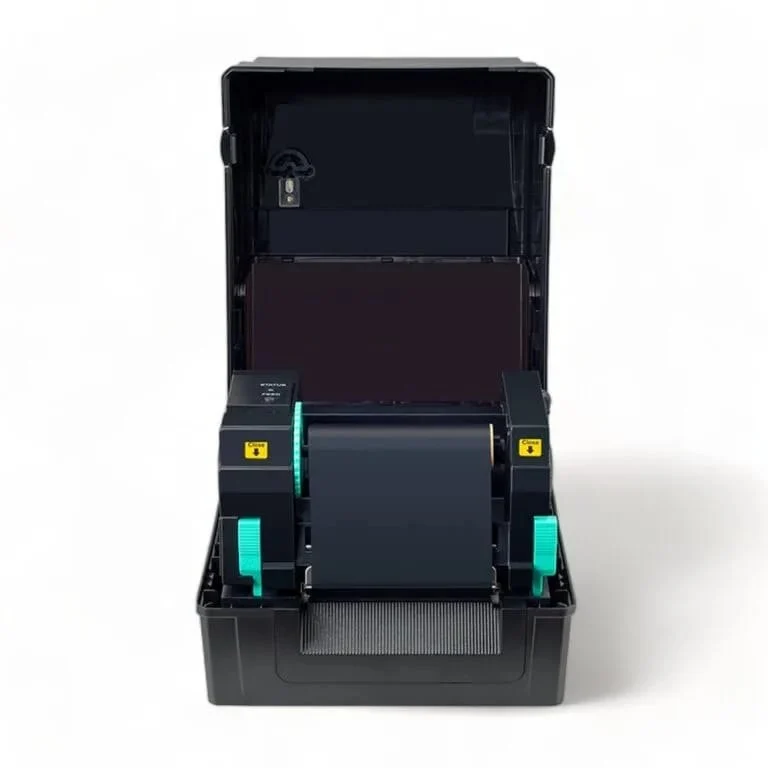

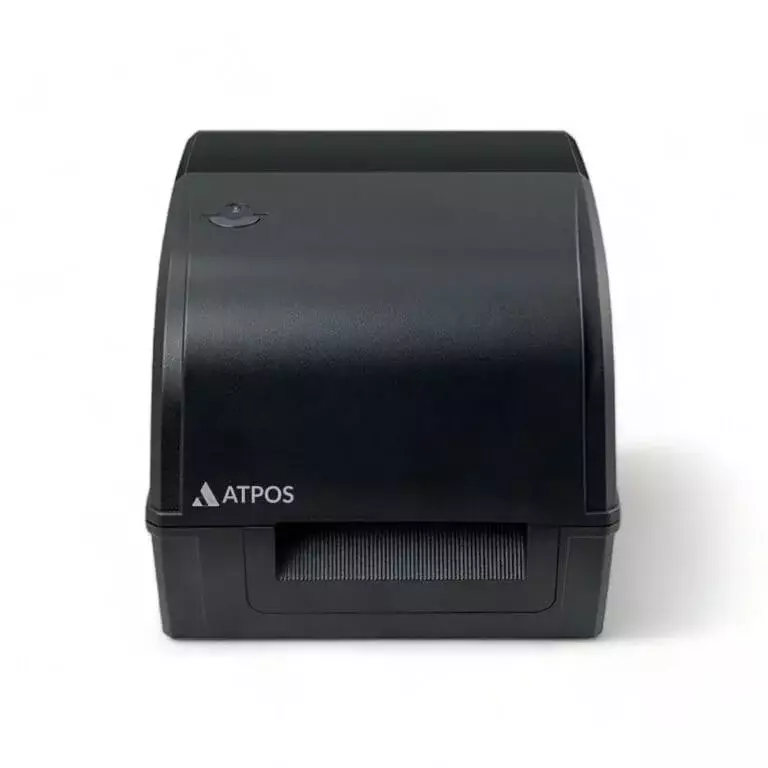

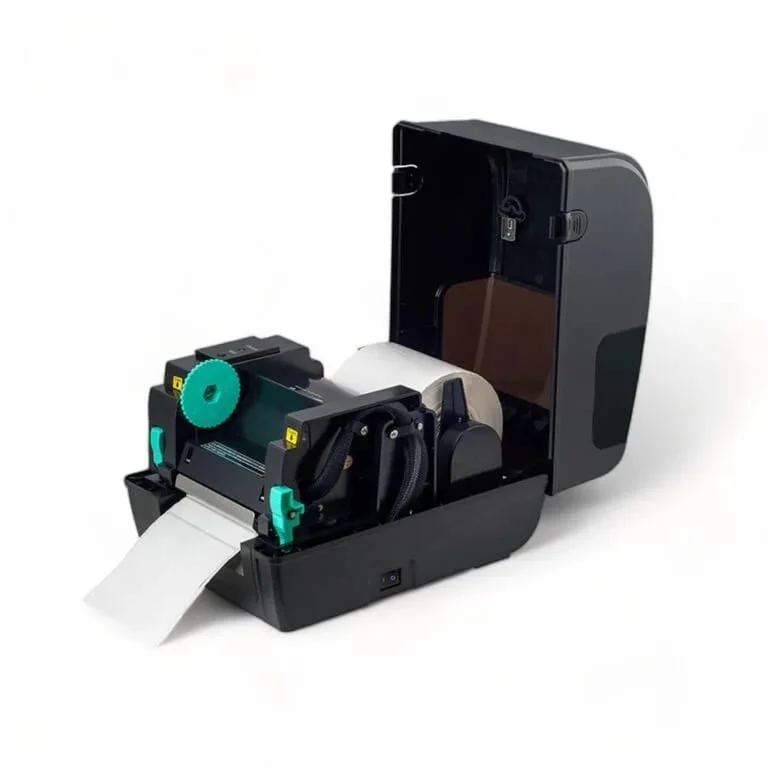

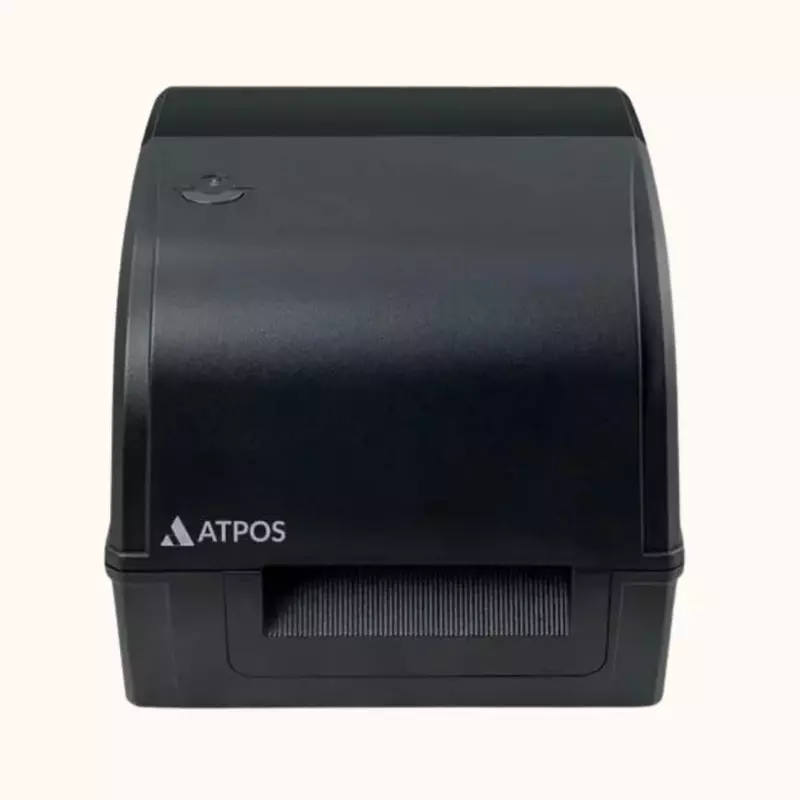

Atpos TT426B Barcode Thermal Transfer Printer | 4 Inch 110mm Label TT DT | USB | Bluetooth

Printer Model

TT426B

Printing Features

Resolution

203 DPI

Printing method

Thermal Transfer / Direct Thermal

Max.print speed

127 mm/s Max.

Max.print width

108 mm (4.25″)

Max.print length

1778 mm (70″)

Media

Media type

Continuous, gap, black mark, fan-fold and punched hole

Media width

25.4-118mm (1.0”-4.6”)

Media thickness

0.06~0.254 mm (2.36~10mil)

Media core diameter

25.4 ~ 76.2 mm (1 “~ 3 “)

Label length

10 – 1778 mm(0.39″ ~ 70″ )

Label roll capacity

127 mm (5“) OD (External diameter)

Ribbon capacity

Max.300m

Ribbon width

110 mm

Ribbon core
inner diameter

25.4 mm (1″)

Performance Features

Processor

32-bit CPU

Memory

8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb

Interface

Stardard version: USB   Optional:Lan/WIFI/Bluetooth/TF card

Sensors

①Gap sensor
②Cover opening sensor
③Black mark sensor
④Ribbon sensor

Fonts/Graphics/Symbologies

Internal fonts

8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.

1D barcode

Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5)

digits add-on, MSI, PLESSEY, POSTNET, China POST

2D barcode

PDF-417, Maxicode, DataMatrix, QR code, Aztec

Rotation

0°、90°、180°、270°

Emulation

TSPL、EPL、ZPL、DPL

Physical Features

Dimension

299 mm (D) x 235 mm (W) x 198.3 mm (H)

Weight

2.55kg

Reliability

Print head life

30 km

Software

Driver

Windows/Linux/Mac

SDK

Windows/Android/iOS

Power supply

Input：AC 110-240V,1.8A, 50-60Hz

Output：DC 24V, 2.5A, 60W

Options

Factory Options

   Bluetooth module

Warranty

1 year

Environmental Conditions

Operation

environment

5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing

Storage environment

-40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-condensing
