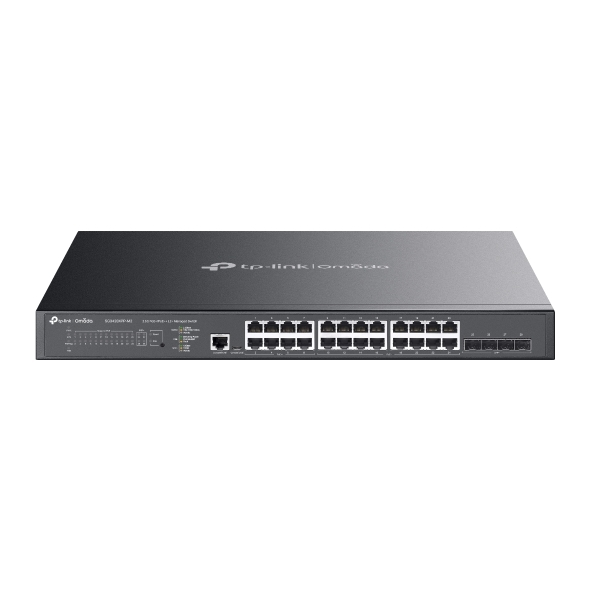

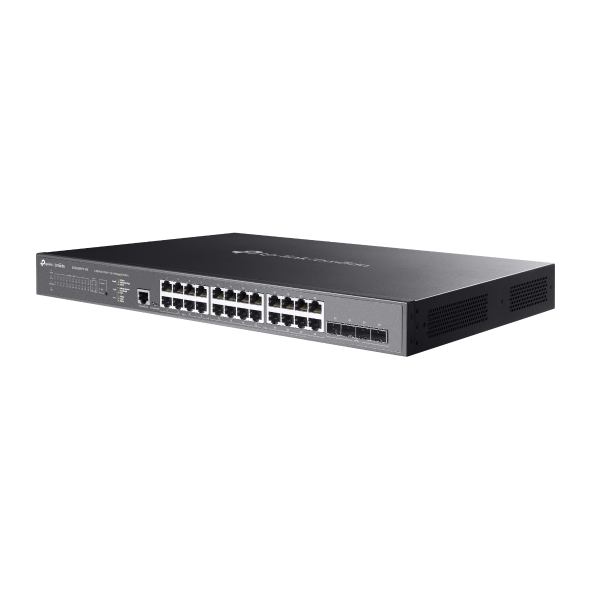

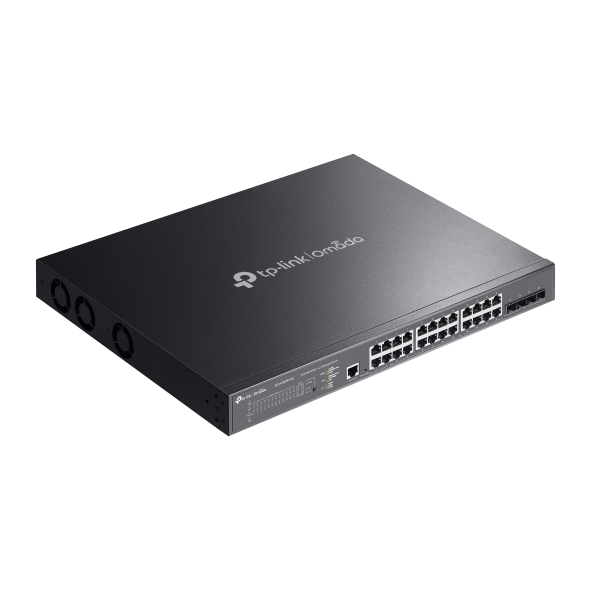

TP-Link Omada 24-Port L2+ Managed Switch , SG3428XPP-M2
Feature | Description |
|---|---|
High-Speed Access | 24× 2.5GBASE-T Ethernet ports for multi-gigabit performance across all devices |
Power-over-Ethernet | 16× PoE+ ports and 8× PoE++ ports for high-power devices like Wi-Fi 6/6E APs |
10G Uplink Ports | 4× 10GE SFP+ slots for high-speed fiber uplinks |
Advanced L2+ Features | Supports VLAN, ACL, QoS, IGMP Snooping, Static Routing, OAM, and DDM |
Omada SDN Integration | Centralized cloud management via Omada Controller, web interface, or app† |
Feature | Description |
|---|---|
PoE++ Ports | 8× 2.5G PoE++ ports with up to 60W PoE output per port** |
PoE+ Ports | 16× 2.5G PoE+ ports with up to 30W PoE output per port |
Uplink Ports | 4× 10G SFP+ slots for high-speed fiber uplinks |
Total PoE Budget | 500W total PoE power budget* |
Cloud Management | Centralized via Omada Controller, web interface, or Omada app† |
Standalone Management | Web UI, CLI, SNMP, and RMON support |
Routing Capability | Static Routing enhances internal traffic efficiency |
Advanced Features | VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM |
Redundancy | ERPS enables fast protection and recovery in ring network topologies |
General
- TypesManaged
- Switching Capacity200 Gbit/s
- Port TypeSFP
- No. Of SFP Ports4
- Rack MountingYes
