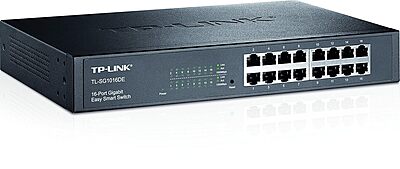

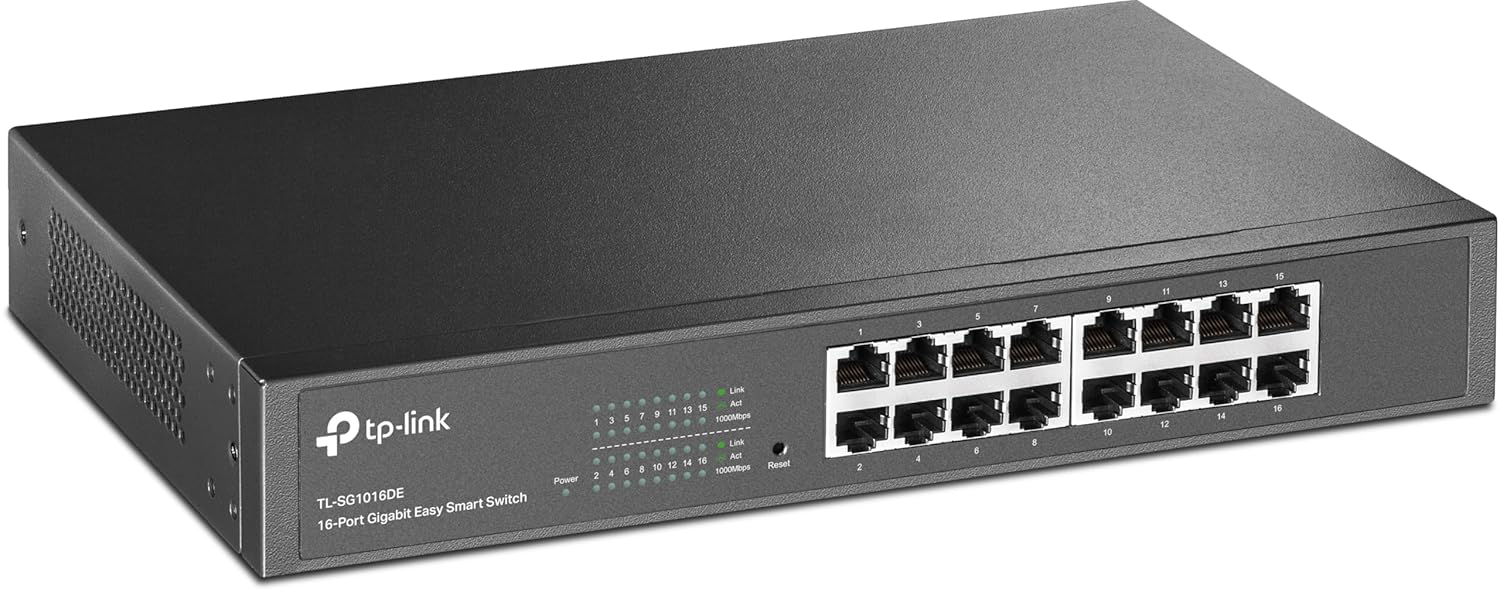

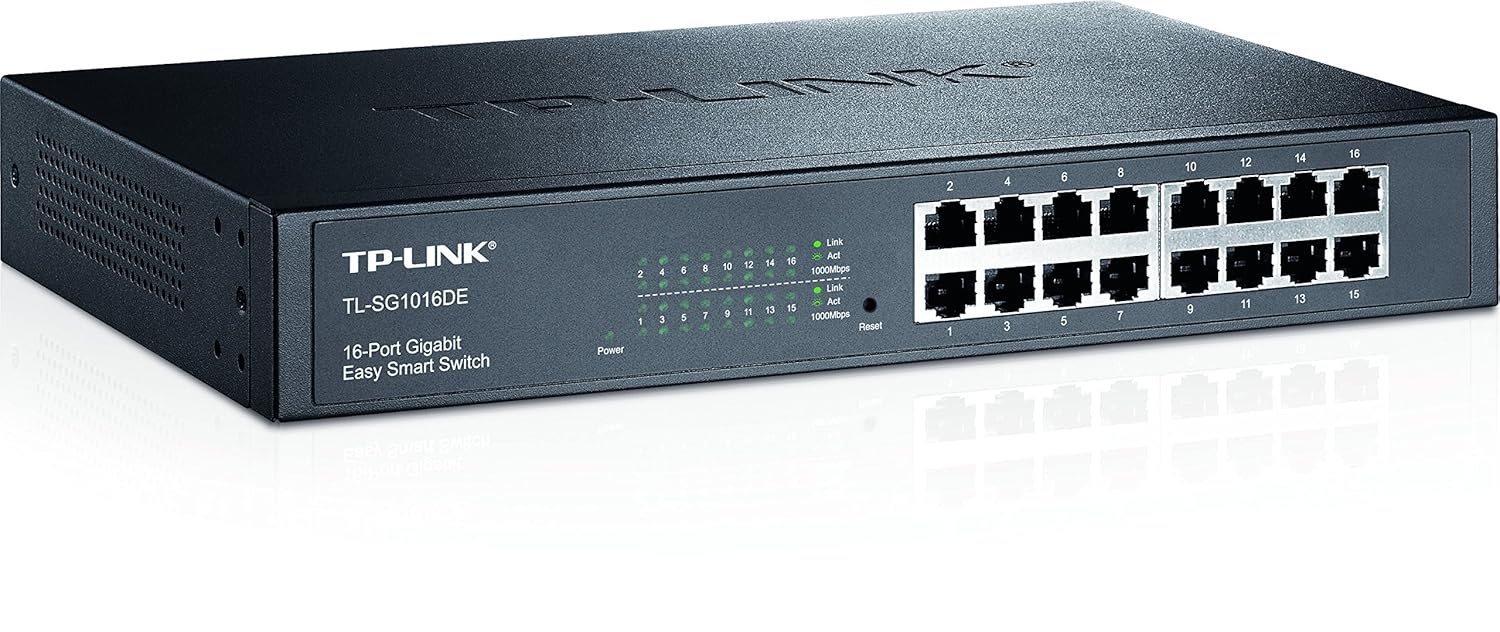

TP-Link 16-Port Gigabit Easy Smart Switch-TL-SG1016DE

Standards and Protocols

IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p

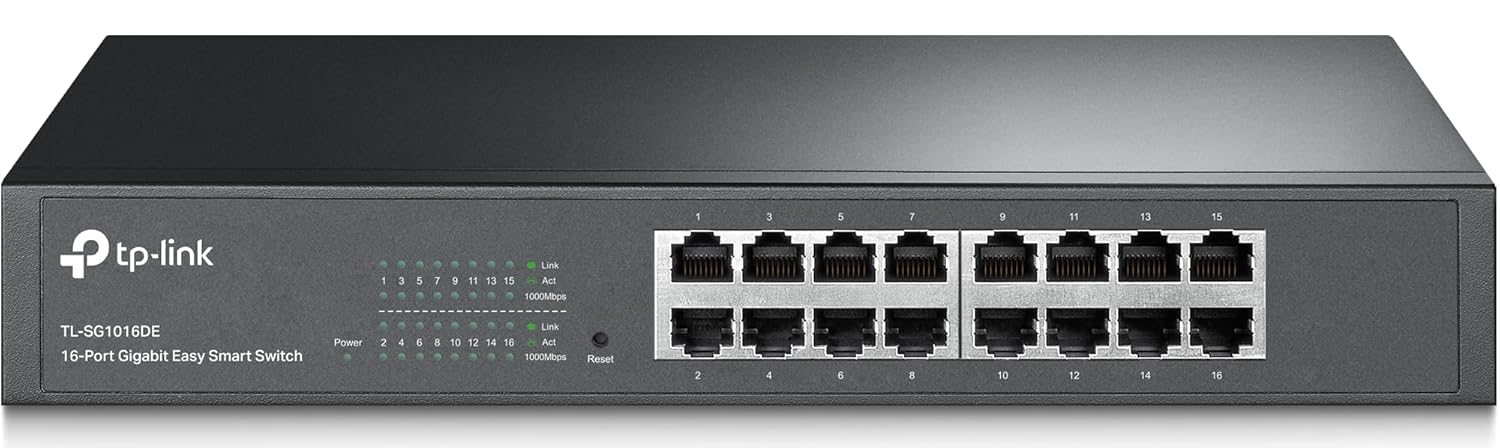

Interface

16 × 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Yes

Network Media

10BASE-T: UTP Cat 3, 4, 5 (max 100m), 100BASE-TX: UTP Cat 5, 5e (max 100m), 1000BASE-T: UTP Cat 5, 5e, 6+ (max 100m); EIA/TIA-568 100Ω STP for all

Fan Quantity

Fanless

Physical Security Lock

No

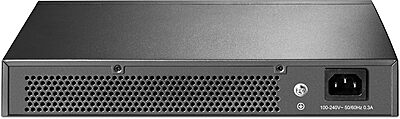

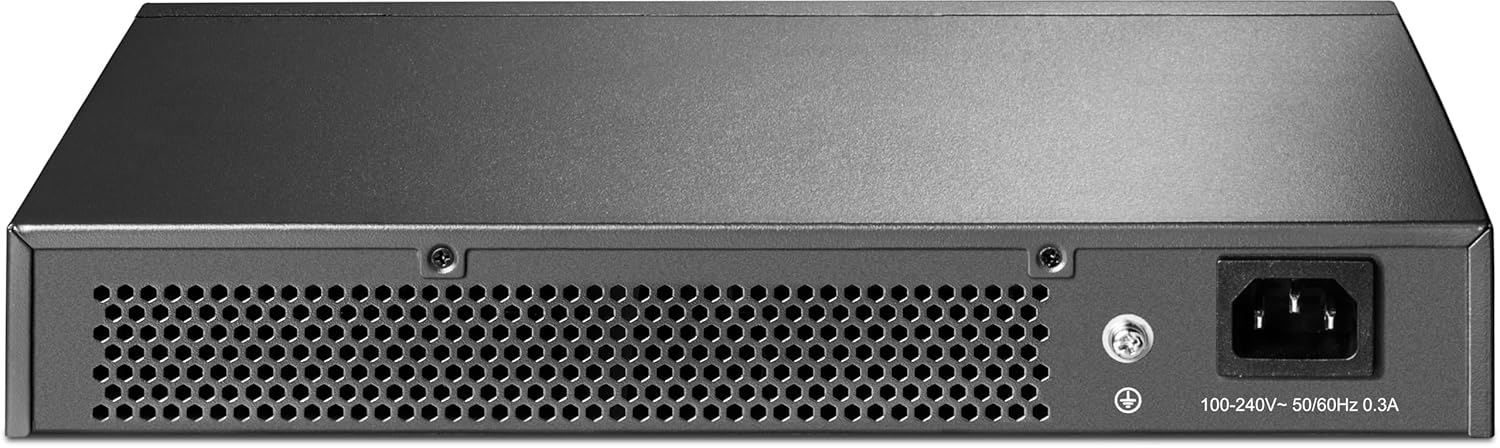

Power Supply

100-240VAC, 50/60Hz

Dimensions (W × D × H)

11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

Mounting

Rack Mountable

Max. Power Consumption

10.22W (220V/50Hz)

Max Heat Dissipation

34.52 BTU/h

Switching Capacity

32Gbps

Packet Forwarding Rate

23.8Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1Mbit

Jumbo Frame

10KB

Quality of Service

Port-based/802.1p/DSCP priority, 4 priority queues, Rate Limit, Storm Control

L2 Features

IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention

VLAN

Up to 32 VLANs simultaneously (out of 4K VLAN IDs); MTU/Port/Tag VLAN

Transmission Method

Store-And-Forward

Certification

FCC, CE, RoHS

Package Content

TL-SG1016DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Operating Environment

Temperature: 0–40°C (operating), -40–70°C (storage); Humidity: 10–90% (operating), 5–90% (storage)
