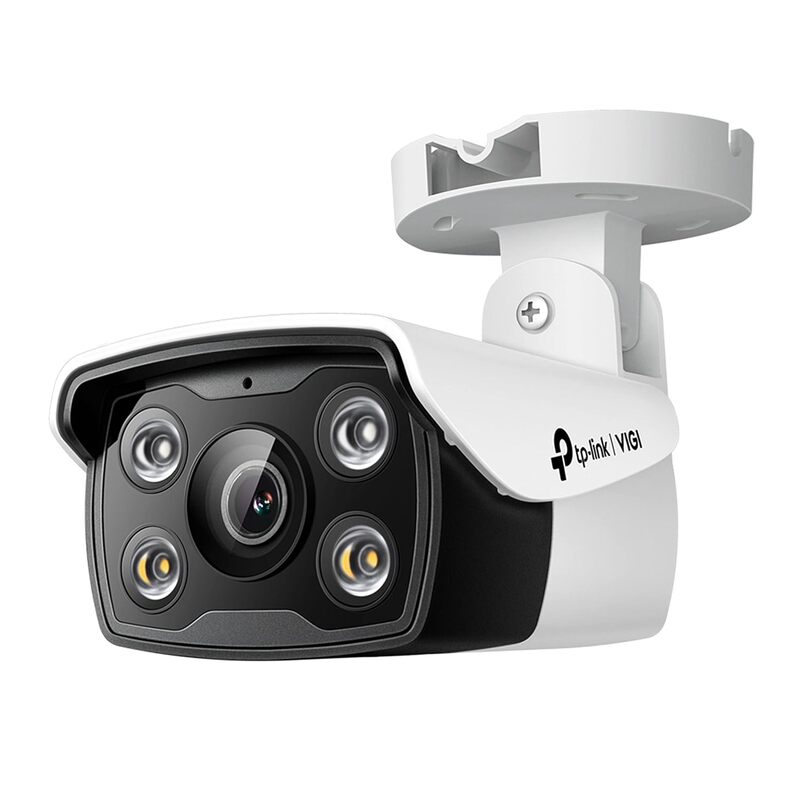

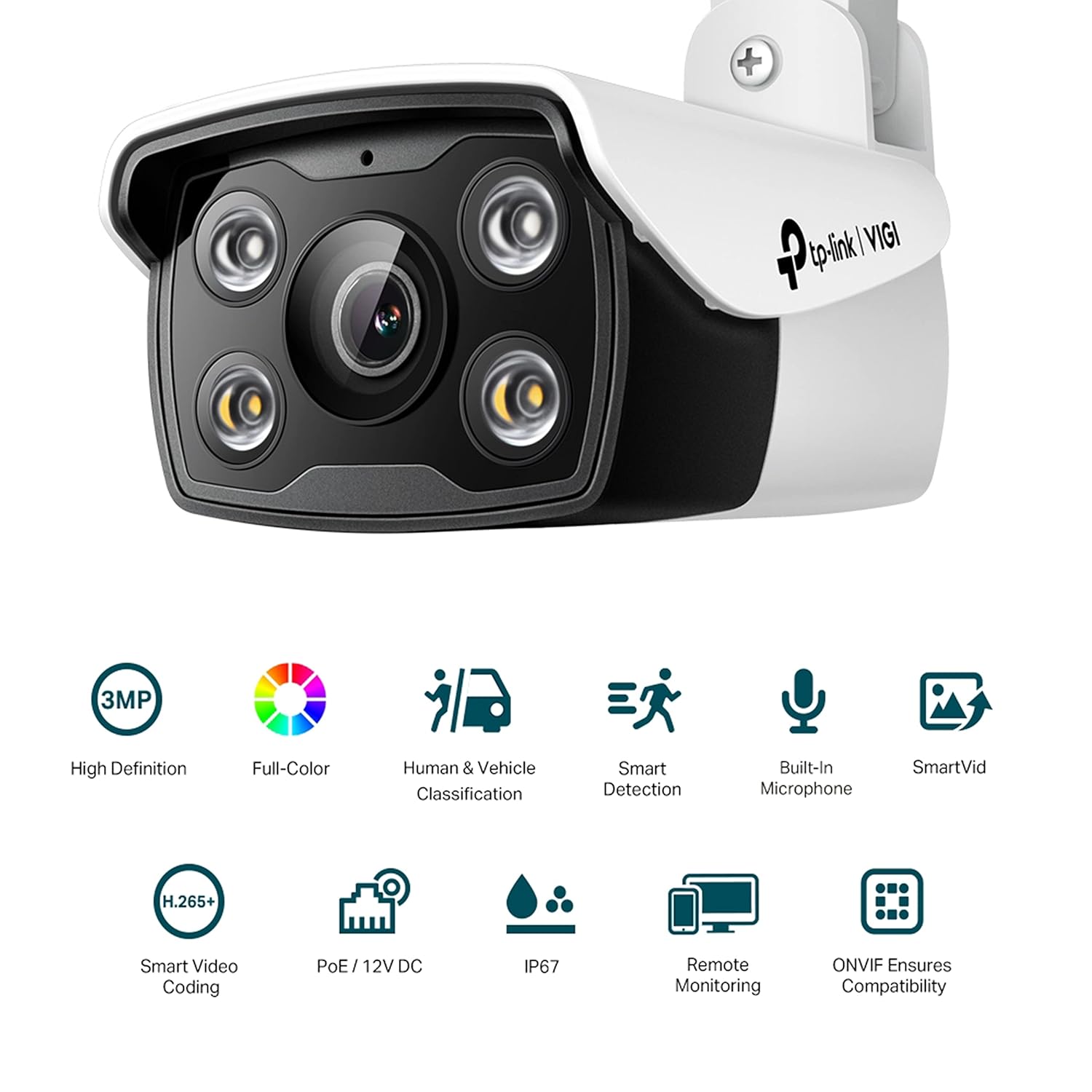

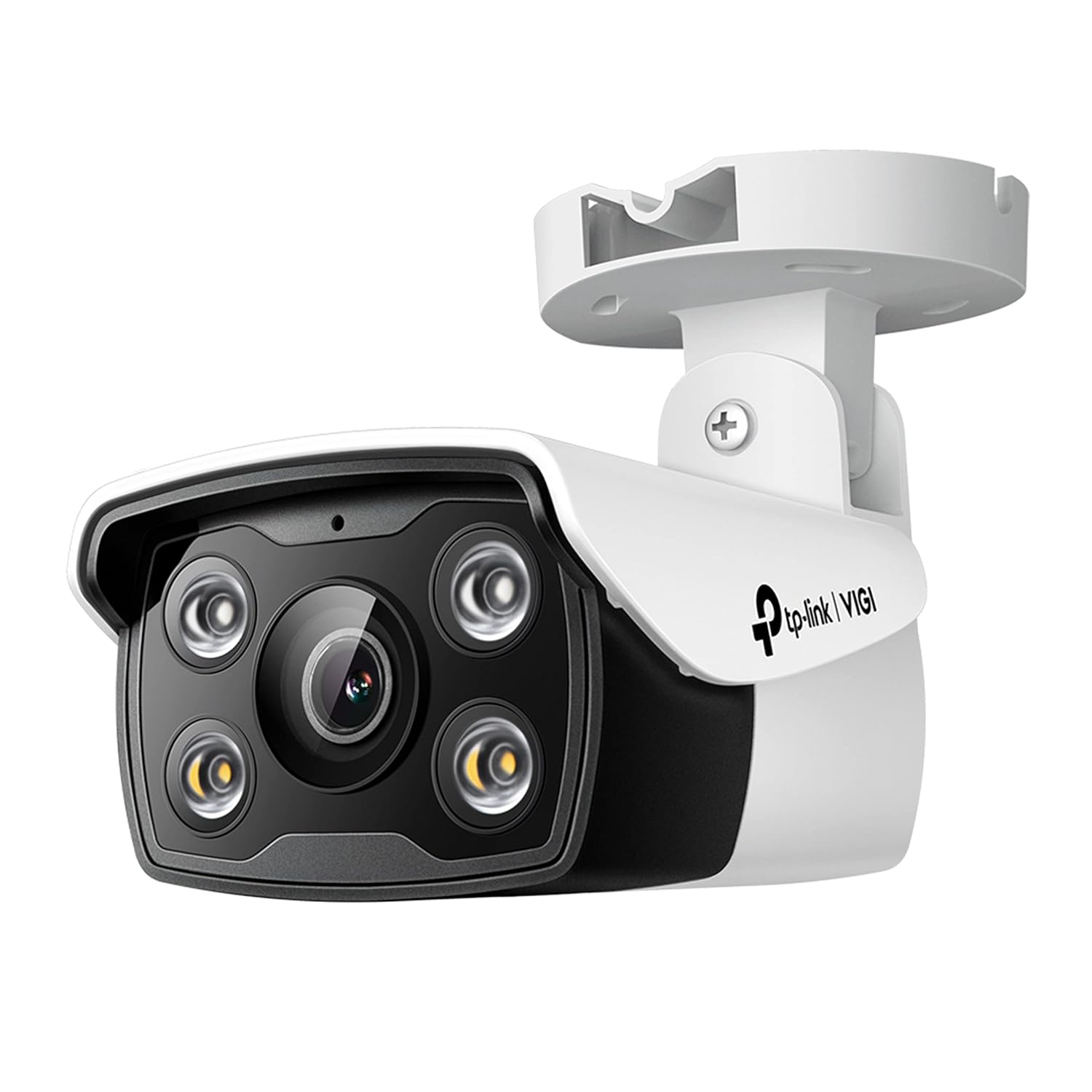

TP-Link VIGI (2.8mm) 3MP Outdoor Full-Color Network Camera-C330 V1

Image Sensor

1/2.8” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10,000 s

Slow Shutter

Yes

Aperture

2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6

Lens

2.8 mm / 4 mm / 6 mm

Lens Mount

M12

Minimum Illumination

Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Day / Night / Auto / Schedule-Switch

Digital Noise Reduction

3D DNR

WDR (Wide Dynamic Range)

DWDR

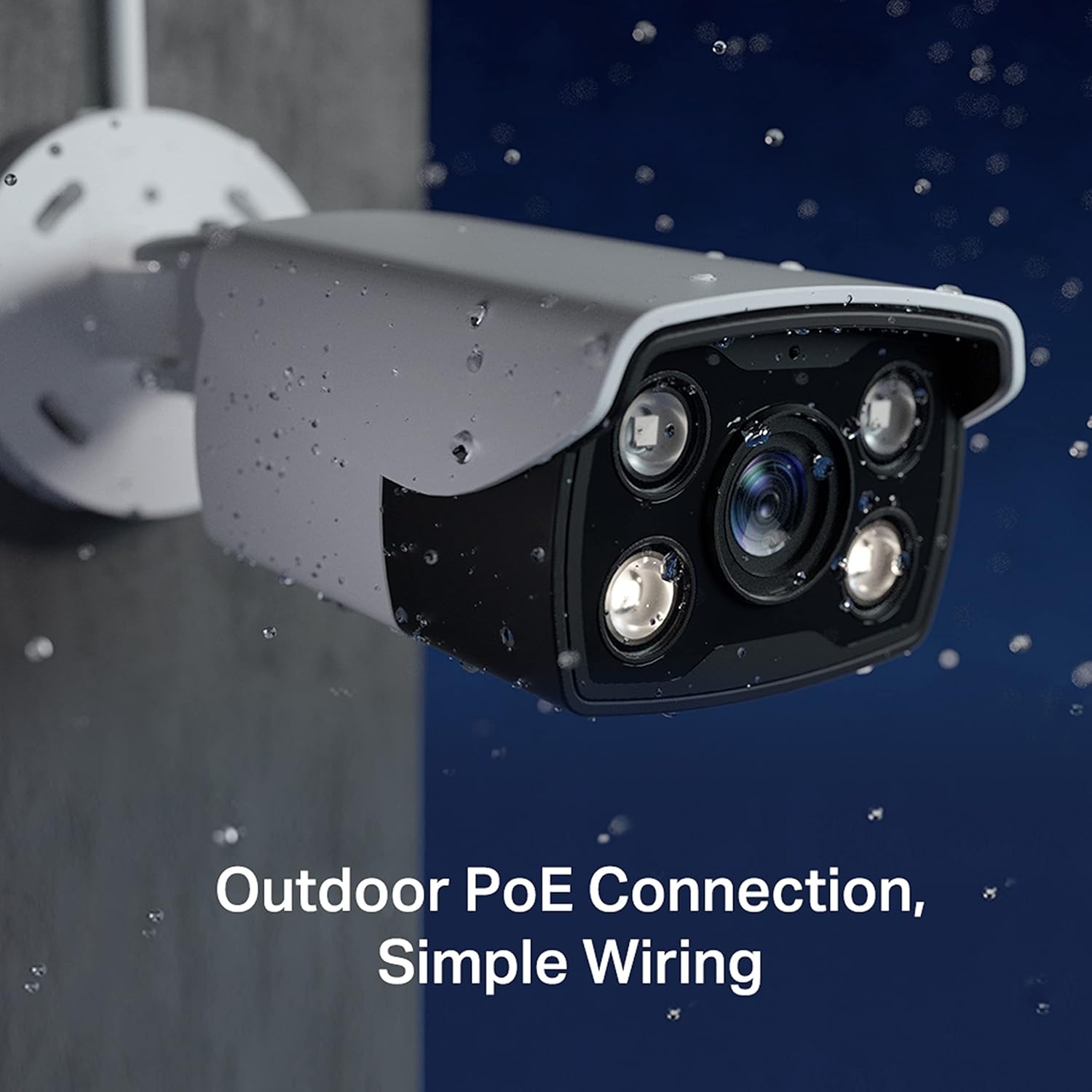

Weatherproof Rating

IP67

IR Working Distance

30 m

Viewing Angle (2.8 mm)

H: 107.5° / V: 57.2° / D: 128.7°

Viewing Angle (4 mm)

H: 89.1° / V: 45.1° / D: 106.9°

Viewing Angle (6 mm)

H: 55.1° / V: 30.2° / D: 64°

Type

Fixed Focal Lens

Focal Lengths

2.8 mm / 4 mm / 6 mm

Aperture

F1.6

FOV (2.8 mm)

H: 107.5° / V: 57.2° / D: 128.7°

FOV (4 mm)

H: 89.1° / V: 45.1° / D: 106.9°

FOV (6 mm)

H: 55.1° / V: 30.2° / D: 64°

Lens Mount

M12

2.8 mm

52 m (170 ft)

22 m (71 ft)

10 m (34 ft)

5 m (17 ft)

4 mm

70 m (230 ft)

29 m (96 ft)

14 m (46 ft)

7 m (23 ft)

6 mm

100 m (327 ft)

41 m (136 ft)

20 m (65 ft)

10 m (33 ft)

Pan

-90° to 90°

Tilt

-90° to 90°

IR LED

Quantity: 2

Range

30 m

Wavelength

850 nm

White LED

N/A

Control Modes

Auto / Scheduled / Always on / Always off

Max. Resolution

2304 × 1296
