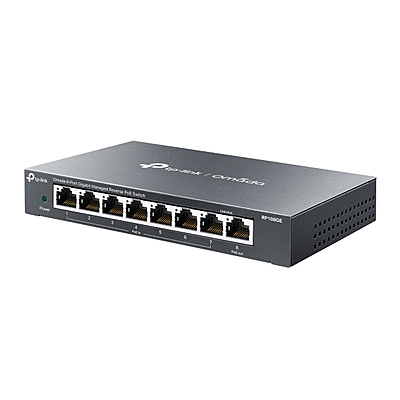

TP-Link Omada 8-Port Gigabit Reverse PoE Switch ,RP108GE

Standards & Protocols

CSMA/CD

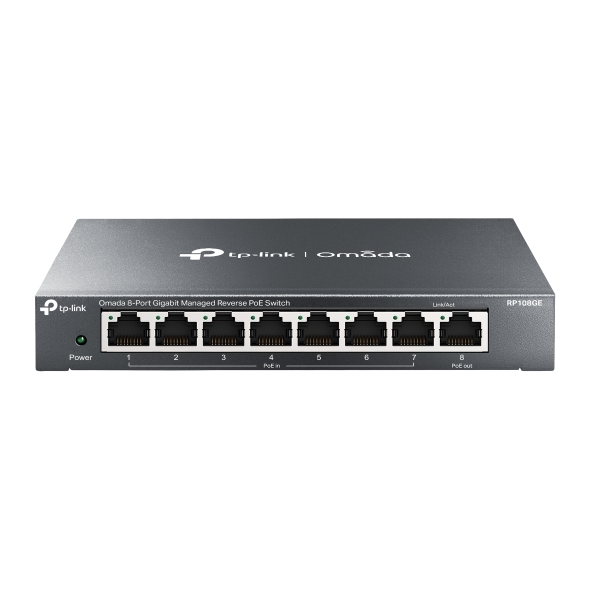

Interfaces

- 7× Passive PoE-in RJ45 Ports (10/100/1000 Mbps Auto-Negotiation, 24/48 V)
- 1× Passive PoE-out RJ45 Port (10/100/1000 Mbps Auto-Negotiation)

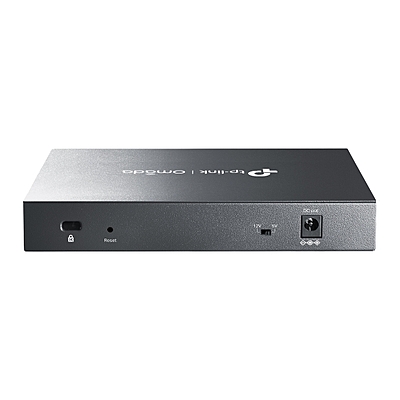

- 1× DC Output Port (5/12 V)

Power Pins (Ethernet)

4/5+ and 7/8-

Network Media

- 10Base-T: UTP cat 3/4/5 or EIA/TIA-568 100Ω STP (max 100m)
- 100Base-TX: UTP cat 5/5e or STP (max 100m)
- 1000Base-T: UTP cat 5e or STP (max 100m)

LED Indicators

Power, Link/Act LED

Packet Forwarding Rate

11.9 Mbps

MAC Address Table

4K

Jumbo Frame

16 KB

Switching Capacity

16 Gbps

IEEE Standards

IEEE802.3ab, 802.3i, 802.3p, 802.3q, 802.3x, 802.3u

Data Rates

- Ethernet: 10 Mbps (Half), 20 Mbps (Full)
- Fast Ethernet: 100 Mbps (Half), 200 Mbps (Full)
- Gigabit Ethernet: 2000 Mbps (Full)

Dimensions (W×D×H)

6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm)

Max Power Consumption

- 3.98 W (no PD)
- 18.01 W (24 V with PD)
- 32.74 W (48 V with PD)

Max Heat Dissipation

- 13.57 BTU/h (no PD)
- 61.41 BTU/h (24 V)
- 111.64 BTU/h (48 V)
