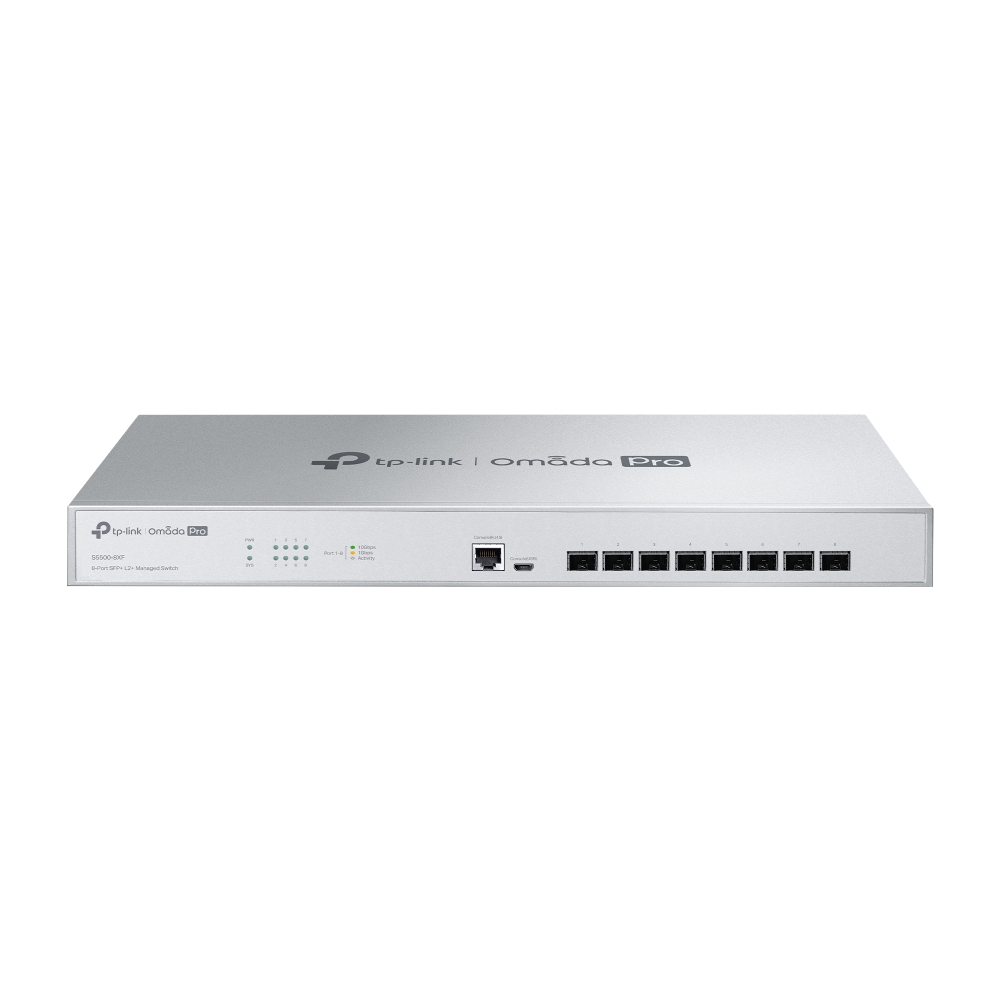

TP-Link Omada Pro 8-Port SFP+ L2+ Managed Switch-S5500-8XF

Hardware Features

8× 10GE SFP+ Slots, Fanless Design, 1× RJ45 Console, 1× Micro-USB Console

Power Supply

100-240V AC, 50/60 Hz, Max Power: 15.46W (220V/50Hz)

Cooling

Fanless Design

Performance

160 Gbps Switching Capacity, 119.04 Mpps Forwarding Rate, 32K MAC Table

Protocols Supported

IEEE 802.1 series (VLAN, STP, LACP, 802.1X, etc.)

QoS Features

8 Queues, CoS/DSCP Priority, SP/WRR/SP+WRR Scheduling, Bandwidth Control

L3 Features

16 IPv4/IPv6 Interfaces, 48 Static Routes, DHCP Server/Relay, Proxy ARP

L2 & L2+ Features

LACP (8 groups), STP/RSTP/MSTP, Loop Protection, Port Mirroring, Flow Control

Multicast Features

IGMP v1–v3 Snooping, MLD v1/v2 Snooping, MVR, Static Multicast Group Config

Advanced Features

OAM, L2PT, DLDP, PPPoE ID, ERPS, sFlow, DDM, Anomaly Detection

VLAN Support

4K VLANs, 802.1Q, MAC VLAN, Voice VLAN, Protocol VLAN, QinQ, GVRP

ACL Support

Time-Based ACLs, MAC/IP/IPv6 ACLs, Actions: Mirror, Redirect, QoS, Rate Limit

Security

IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, DoS Defense, Port Security

IPv6 Support

Dual Stack, IPv6 ACLs & Routing, DHCPv6, ND, MLD, Ping6, Traceroute6, SSL, SSH

MIB Support

MIB II, Bridge MIB, RMON 1/2, Radius MIBs, TP-Link Private MIBs

Management

Web GUI, CLI (console/telnet), SNMP v1/v2c/v3, Omada App/Controller, ZTP, LLDP
