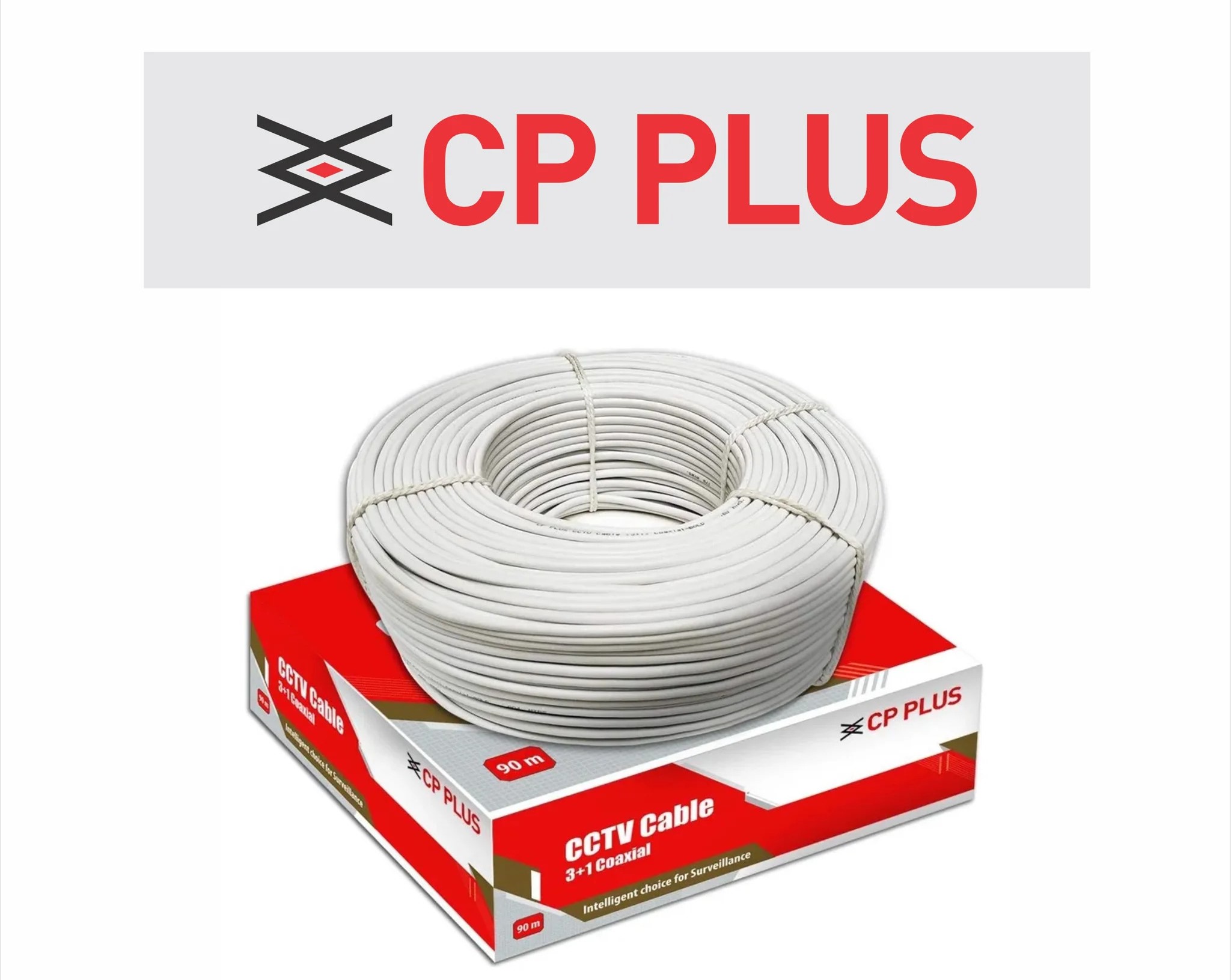

CP PLUS CABLE 3+1 (CP-ECC-90R)
Feature | Specification |
|---|---|
Conduct Type | Stranded Annealed Bare Copper Conductor |
No/Size of Wire (Power Core) | 14/0.10 ± 0.010 mm |
Insulation (Power Core) | PVC |
No of Core (Power) | Three |
Colour Code (Power Core) | Red, Yellow & Grey |
Core O.D (Power Core) | 1.35 ± 0.10 mm |
Conductor Type (Video Core) | Solid Annealed Bare Copper Conductor |
No/Size of Wire (Video Core) | 01/0.60 ± 0.015 mm |
Video Core Insulation | HDPE |
No of Video Core | One |
Colour Code (Video Core) | Natural |
Shielded | Al-Mylar |
Braiding | CCA braiding (48 wire / 0.12 ± 0.01 mm) |
Video Core Jacketing | HDPE |
Feature | Specification |
|---|---|
Colour of Jacket | Black |
Video Core OD | 2.50 ± 0.20 mm |
Material PVC | PVC |
Colour of Jacketing | White |
Thickness of Outer Jacket | 0.65 mm (Nominal) |
Outer Diameter | 5.70 ± 0.30 mm |
Sequential Marking | Every Meter |
Standard Length | 90 Meters |
Conductor Resistance (DC) - Solid | 65 Ω/km @ 20°C Max |
Conductor Resistance (DC) - Stranded | 175 Ω/km @ 20°C Max |
Tensile Strength in PVC Jacket | 12.5 N/sqmm (Minimum) |
Elongation in PVC Jacket | 150% Minimum |
General
- Types Of CablesFiber
- UTP Cables Types3 + 1
- HDMI Connector TypeRJ45
- Cable Connector GenderMale-to-Male
- Ethernet Cable CategoryCat 6a
- Connector 1RJ.5
- Connector 2RJ-45
- Cable ShapeRound
- Outer MaterialCopper
- Product ColourWhite
Size
- Item Length80 to 90 m
- Item Weight998 g
